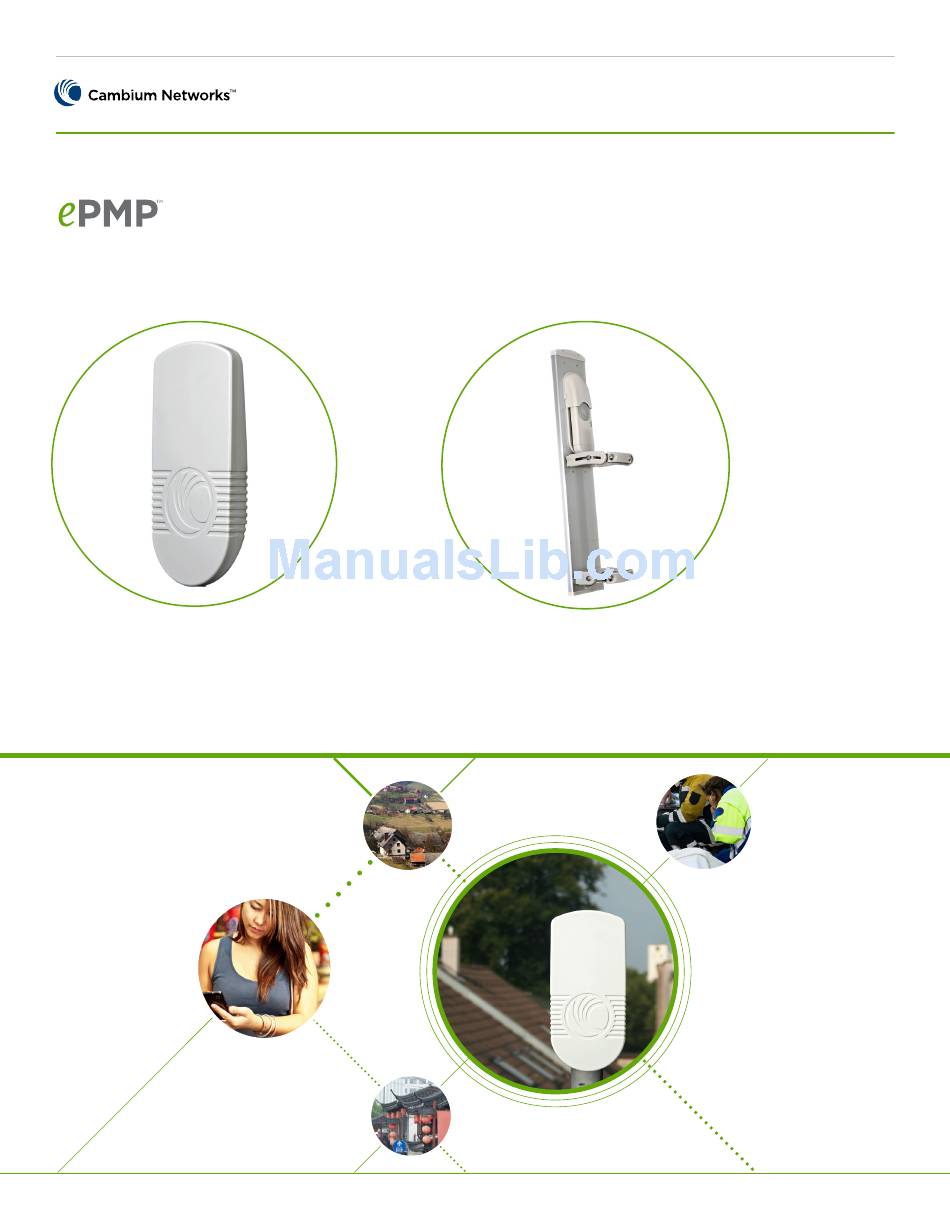

- Page 1 1000 Ordering Guide ePMP 1000 INTEGRATED RADIO ePMP 1000 CONNECTORIZED RADIO WITH SYNC CN ePMP OG 09242013...
-
Page 2: Table Of Contents
Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks 1.0 Introduction 2.0 Ordering Connectorized Synchronized Radios Connectorized Synchronized Radios AP Sector Antenna Options Power Supply for Connectorized, Synchronized Radio Surge Suppression GPS Synchronization Extended Warranties 3.0 Ordering Integrated Radios... -
Page 3: Introduction
Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks 1 Introduction covers the Cambium ePMP Platform. It is intended to provide a THIS ORDERING GuIDE structured guide to ordering a solution with any accessories and ancillary items for a successful installation. - Page 4 Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks Deployment Configurations The ePMP Solution is very versatile. Each of the radio units can be configured to be an Access Point, a Subscriber Module or a Point to Point radio. When the connectorized radio is combined with an external antenna, a wide variety of configurations can be supported with the solution.
- Page 5 Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks When you are ready to prepare your order, the following equipment components can be selected for an ePMP network. ePMP System Components ePMP Connectorized Radio with Sync...
-

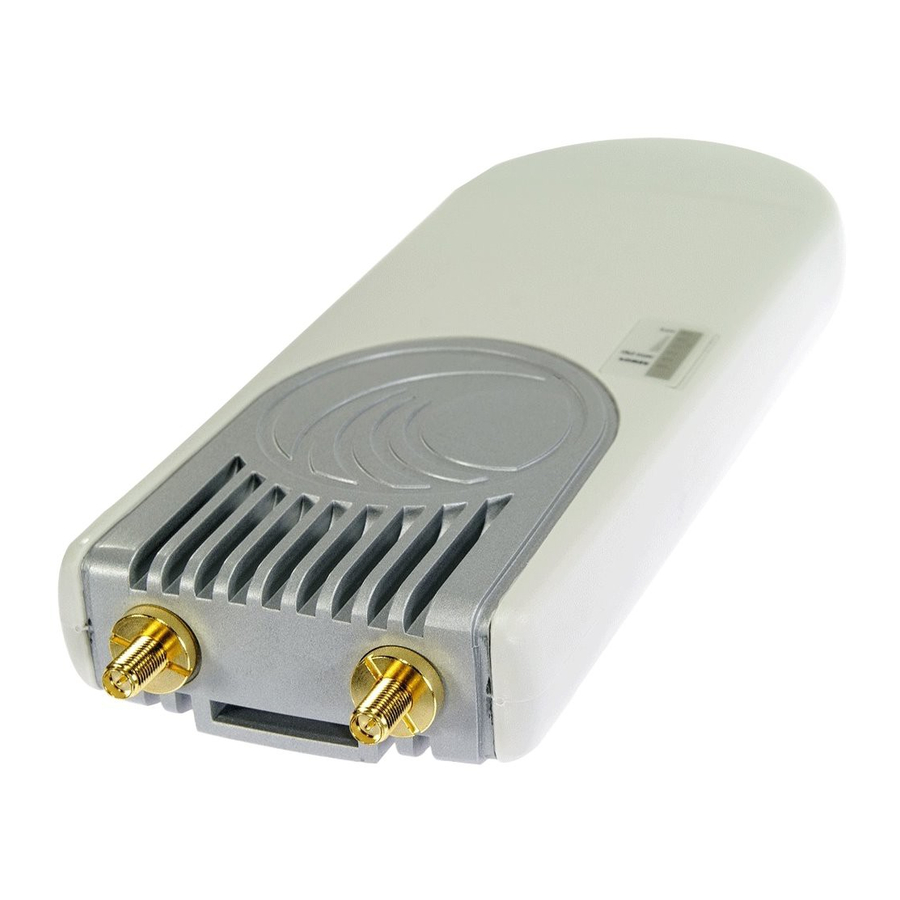

Page 6: Ordering Connectorized Synchronized Radios
60 SMs be connected to one Access Point. ePMP AP Radio unit ePMP AP Radio Antenna Part Number Description ePMP 1000: 5 GHz Connectorized Radio with C050900A011A Sync (ROW) ePMP 1000: 5 GHz Connectorized Radio with C058900A112A... -
Page 7: Ap Sector Antenna Options
Part Number Description C050900D003A ePMP 1000: 5 GHz Sector 90 Antenna C050900D002A ePMP 1000: 5 GHz Sector 120 Antenna 2.3 Power Supply for Connectorized, Synchronized Radio Each ePMP Radio requires a power supply to generate the supply voltage from the external DC source and inject the voltage into the radio. -
Page 8: Surge Suppression
Spare power supplies can be purchased by ordering the following part number: Part Number Description ePMP 1000: Spare Power Supply for Radio N000900L001A with Gigabit Ethernet (no cord) When selecting the location for the power supply, the following factors should be considered: •... -
Page 9: Extended Warranties
Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks Alternatively, the Cambium CMM3, CMM4 or compatible third party synchronization solution can be used to provide power and timing to the GPS Synchronized, Connectorized radio. Part numbers for the Cambium solutions are provided below. -
Page 10: Ordering Integrated Radios
Subscriber Module. ePMP Integrated Radio Module Part Number Description C050900C031A ePMP 1000: 5 GHz Integrated Radio (ROW) C058900C132A ePMP 1000: 5 GHz Integrated Radio (FCC) C050900C033A ePMP 1000: 5 GHz Integrated Radio (EU) The images below shows what is included in the box when an Integrated Connectorized Radio is... -
Page 11: Power Supply For Integrated Radio
Spare power supplies can be purchased by ordering the following part number: Part Number Description ePMP 1000: Spare Power Supply for Radio with N000900L002A 100Mbit Ethernet (no cord) When selecting the location for the power supply, the following factors should be considered: •... -
Page 12: Cabling And Accessories
Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks 3.4 Cabling and Accessories In addition to the components above, you will need to order your cables and other accessories as needed to complete your AP order. The following is an optional pole mounting kit that could be used with the ePMP. -
Page 13: Ap And Sm Installation Examples
Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks 4 AP and SM Installation Examples This section provides illustrations showing the placement of ePMP systems with their ancillary com- ponents, cables, and accessories. 4.1 ePMP Radio Mounted on a Tower... -
Page 14: Epmp Radio On A Residential Or Commercial Building
Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks 4.2 ePMP Radio on a Residential or Commercial Building Equipment AP/SM building POWER 600SSD SuPPlY NETWORk External Ground bar SWITCH Ground Ring Legend Outdoor CAT5e cable: shielded with copper-plated steel... -
Page 15: Epmp Radio On A Rooftop
Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks 4.3 ePMP Radio on a Rooftop Air Terminal (finial) Tower Grounding 600SSD Conductor To Equipment Area Service building Ground Ring Legend Outdoor CAT5e cable: shielded with copper-plated steel... -
Page 16: Epmp Radio Module Grounding And Protection
Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync cambium networks 4.4 ePMP Radio Module Grounding and Protection Equipment building Subscriber Module Mounting bracket CAT-5 Outdoor Cable 600SS SuRGE SuPPRESSOR Customer’s Computer 10 AWG Copper Grounding Conductors POWER... - Page 17 Quick Start, Installation and User Guides. www.cambiumnetworks.com Cambium Networks and the stylized circular logo are trademarks of Cambium Networks, Ltd. All other trademarks are the property of their respective owners. © Copyright 2013 Cambium Networks, Ltd. All rights reserved.
