If you are missing any of the following components, please contact Customer Service at 1-800/582-6480

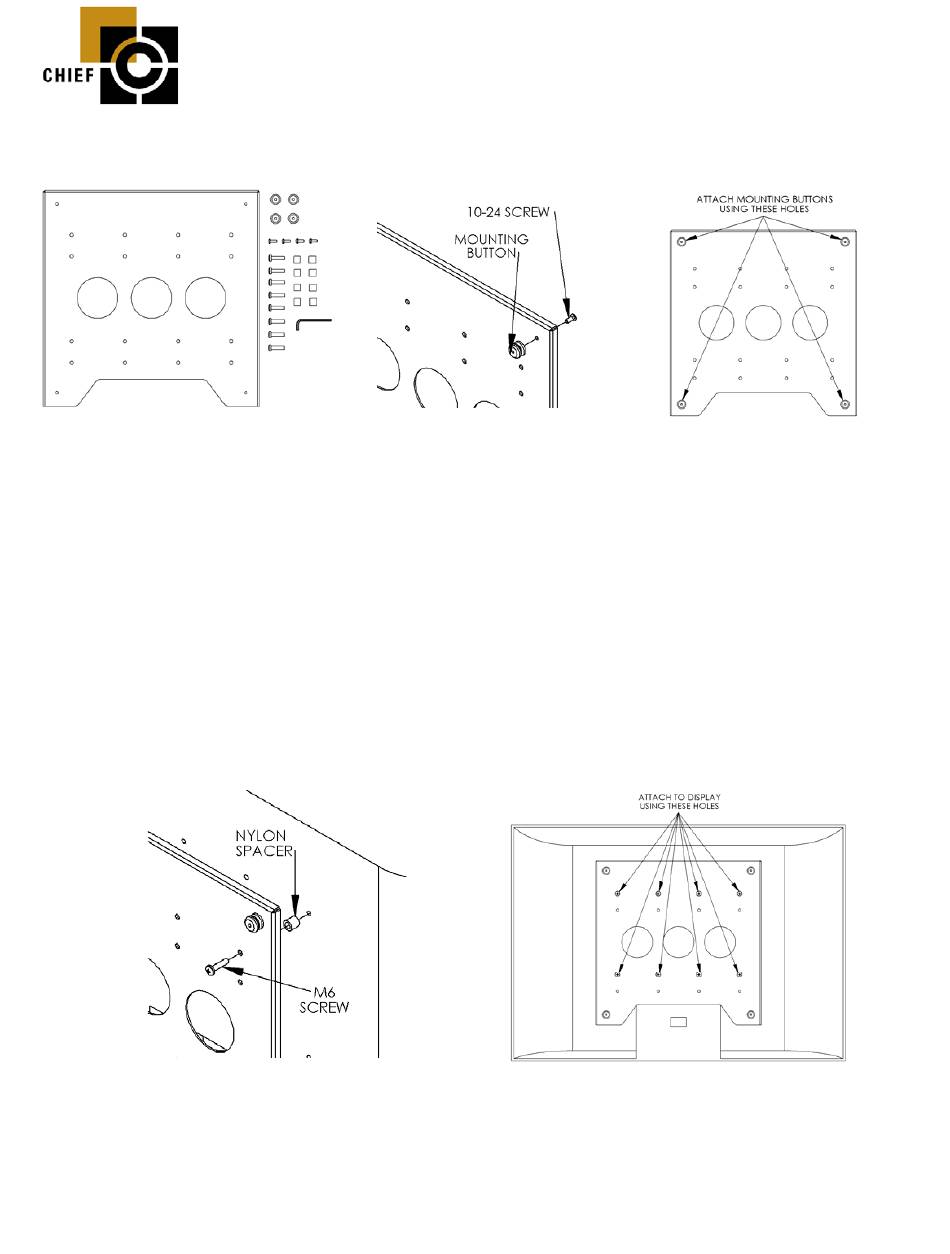

Figure 1
(1) LCD Interface Bracket
(4) 10-24 x .5" Button Head Cap Screws
(8) ½ x .316 x ½ Round Nylon Spacer
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with
chamfered hole of mounting button (larger surface) facing bracket, to bracket (four places) (see Figure 2
& Figure 3).
2. Place Nylon spacers on mounting holes, aligning hole pattern on brackets with pattern on back of LCD
Display (see Figure 4 & Figure 5 for 32" displays) (see Figure 6 & Figure 7 for 37" displays).
Attaching to 32" displays
8804-000264 REV B
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com
INSTALLATION INSTRUCTIONS
LCD DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
LCD DISPLAYS ARE EXTREMELY FRAGILE.
Figure 4
PSB-2048
Figure 2
Figure 3
(4) Mounting Buttons-Tapped 10-24
(8) M6-1.0 x 25mm Phillips Head Cap Screws
(1) 1/8" Allen Key
Figure 5
Attaching to 32" displays
12/19/05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF PSB-2048
Summary of Contents for CHIEF PSB-2048
- Page 1 Display (see Figure 4 & Figure 5 for 32" displays) (see Figure 6 & Figure 7 for 37" displays). Figure 4 Figure 5 Attaching to 32" displays Attaching to 32" displays 8804-000264 REV B 12/19/05 CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com...
- Page 2 3. Using M6 Phillips head screws, secure brackets to display. Do not over tighten screws. With the aid of another person, lift LCD Display up to the Chief Mount, aligning buttons of mounting brackets with slots in the Chief Mount.
