CHIEF PSB-2307 Installation Instructions

I N S T A L L A T I O N I N S T R U C T I O N S
DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(1) LCD Interface Bracket
(4) 10-24 x .5" Button Head Cap Screws
(4) .75 x .505 x .125 Thin Nylon Spacer
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
WARNING!
1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button,
with chamfered hole of mounting button (larger surface) facing bracket, to bracket (four places) (see
Figure 2 & Figure 3).
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
PSB-2307

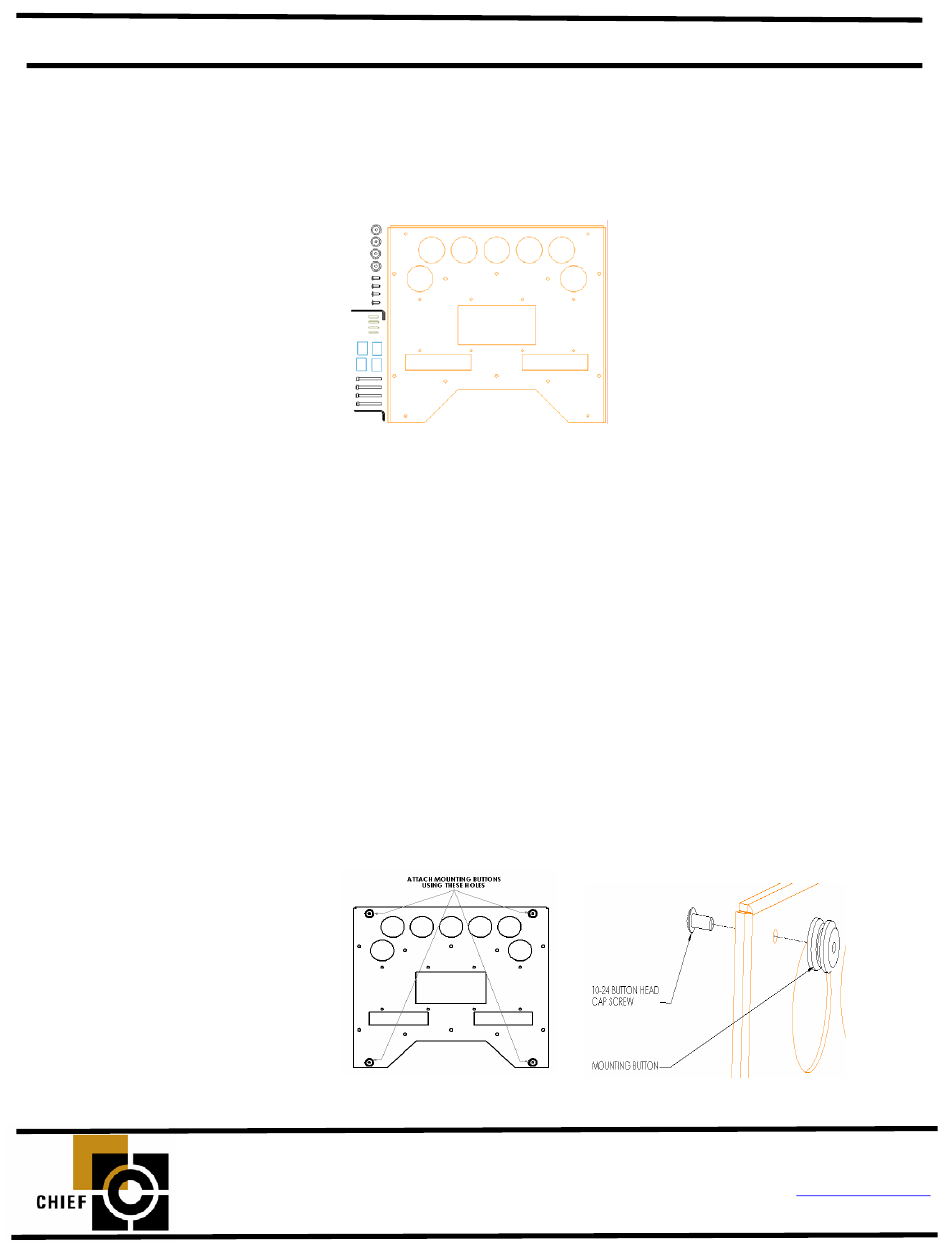

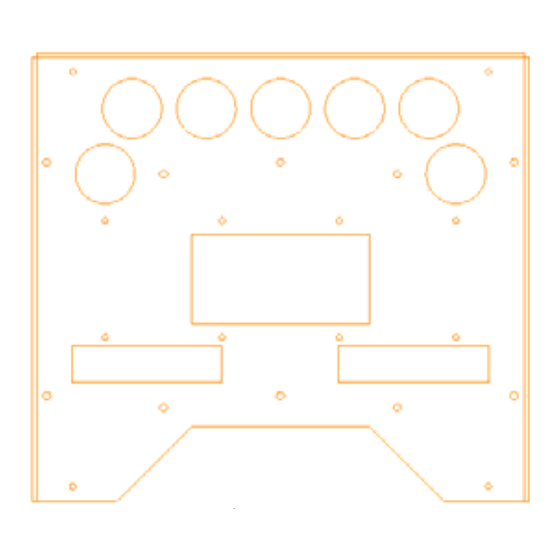

Figure 1
(4) Mounting Buttons-Tapped 10-24
(4) M4 x 45mm Socket Head Cap Screws
(4) .74 x .39 x 1.0 Thick Nylon Spacer
DISPLAYS ARE EXTREMELY FRAGILE.
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
MOUNT IS 175 POUNDS (79.38 KG).
Figure 2
(1) 1/8" Allen Key
(4) #10 Flat Washer
(1) M3 Allen Key
Figure 3
8804-000193 RevB
2004 Chief Manufacturing
www.chiefmfg.com
11/04
