CHIEF PSM-2534 Installation Instructions

I N S T A L L A T I O N I N S T R U C T I O N S
(1) Static Mount
(1) Latching Flag
(4) M8 X 35mm Button Head Cap Screw
(4) Mounting Buttons – Black Nylon

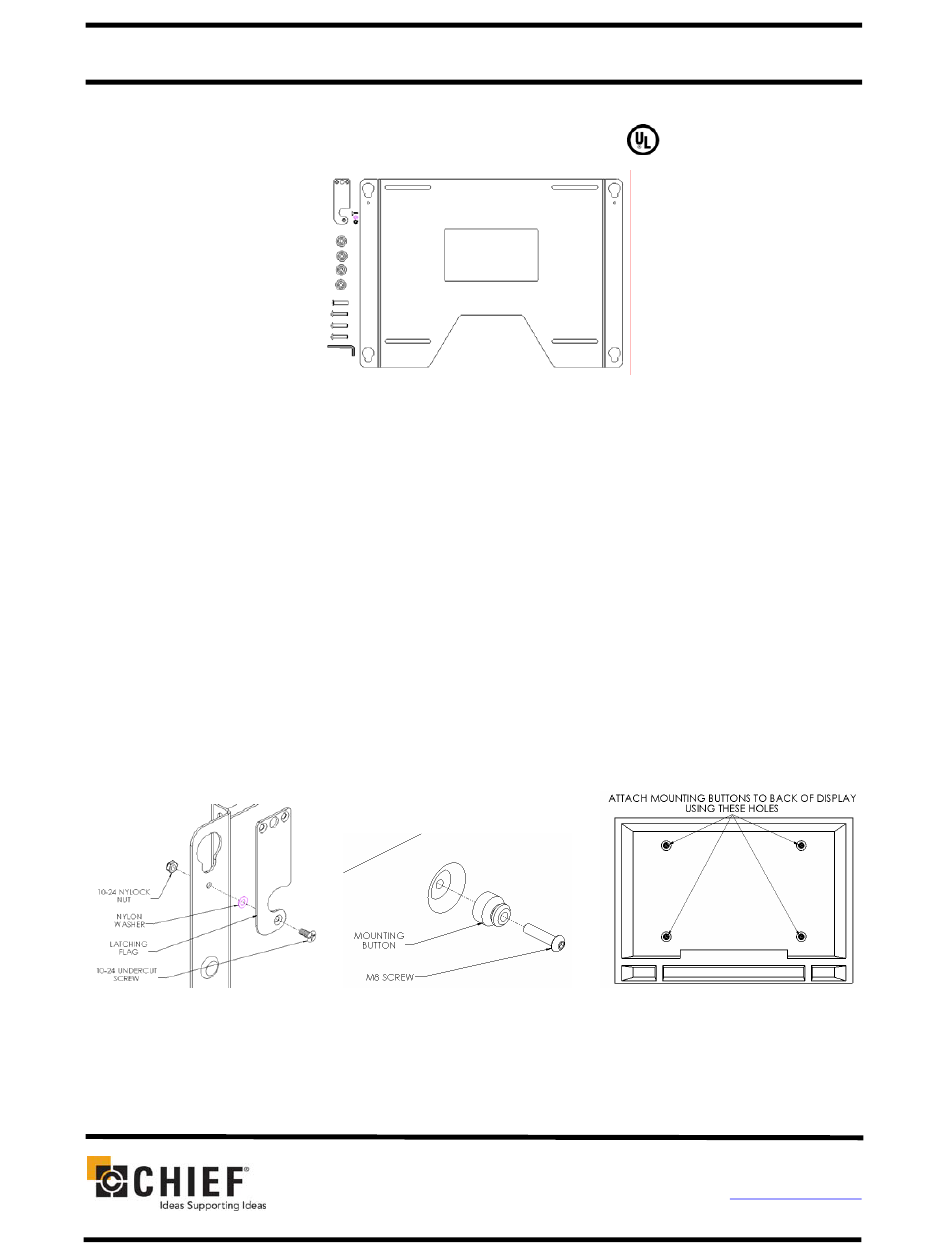

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
installation instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
CAUTION!
1. Attach latching flag to mount using the 10-24 screw, Nylon washer, and Nylock nut (see
Figure 2). Tighten until friction will hold the flag in place.
2. Attach mounting buttons to the display using the M8 screws provided (see Figure 3 &
Figure 4).
Figure 2

DISPLAY STATIC MOUNT

PSM-2534 & 2536
Figure 1
Displays are Extremely Fragile.
Figure 3
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE 700
SAVAGE, MINNESOTA 55378 USA
(1) 10-24 x .5 Phillips Undercut Screw
(1) Nylon Washer
(1) 10-24 Nylock Nut
(1) M5 Allen Key
Figure 4
8805-000131 REV. B
2005 Chief Manufacturing
www.chiefmfg.com
05/05
