I N S T A L L A T I O N I N S T R U C T I O N S
FLAT PANEL DISPLAY STATIC MOUNT
(1) LCD Display Static Mount
(1) Latching Flag
(4) M8 x 25mm Phillips Head Cap Screws
(4) Mounting Buttons-

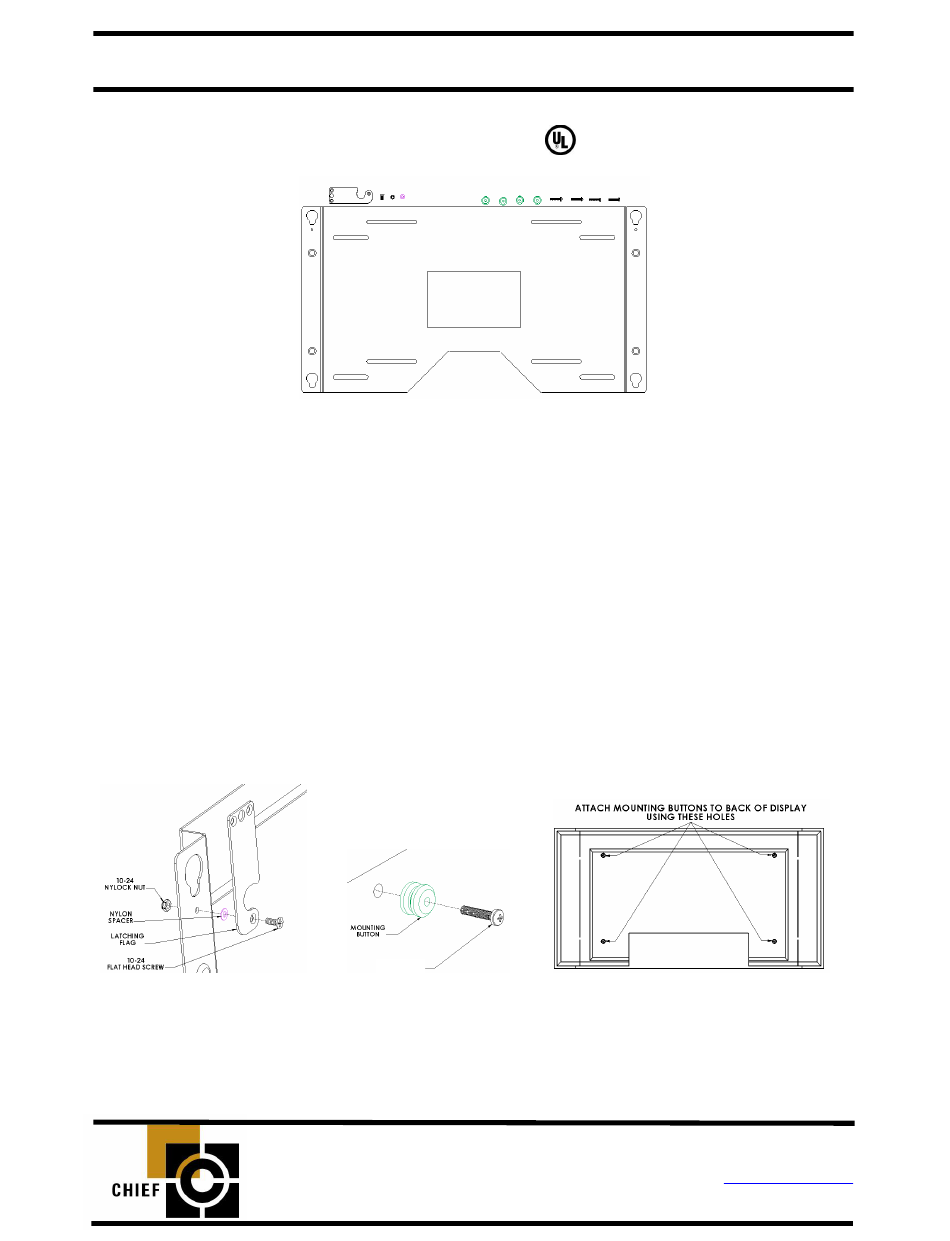

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
installation instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
CAUTION!
1. Attach latching flag to mount using the 10-24 Phillips flat head screw, Nylon washer, and
Nylock nut (see Figure 2). Tighten until friction will hold the flag in place.
2. Attach mounting buttons to display using the M8 screws provided (see Figure 3 & Figure 4).
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
PSM-2126
Figure 1
Flat Panel Displays are Extremely Fragile.
M8 SCREW
Figure 3
(1) 10-24 x .5 Phillips Flat Head Screw
(1) Nylon Washer
(1) 10-24 Nylock Nut
Figure 4
2006 Chief Manufacturing
www.chiefmfg.com
8805-000185
06/06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF PSM-2126
Summary of Contents for CHIEF PSM-2126
- Page 1 2. Attach mounting buttons to display using the M8 screws provided (see Figure 3 & Figure 4). M8 SCREW Figure 4 Figure 2 Figure 3 CHIEF MANUFACTURING INC. 8805-000185 1-800-582-6480 952-894-6280 FAX 952-894-6918 2006 Chief Manufacturing 8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com...
- Page 2 ALL COMPONENTS MUST BE SECURELY FASTENED TO A STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES THE COMBINED WEIGHT OF ALL COMPONENTS WARNING PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT IS 150 POUNDS (68.04 KG).
