I N S T A L L A T I O N I N S T R U C T I O N S
DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(2) Plasma Side Bracket
(4) 10-24 x ½ Button Head Cap Screw
(6) M5 x 25mm Phillips Head Cap Screw
(2) .50 x .26 x 1.625 Nylon Spacer
(4) M5 x 90mm Socket Head Cap Screw
(2) M5 x 75mm Socket Head Cap Screw
(1) M4 Allen Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
WARNING!

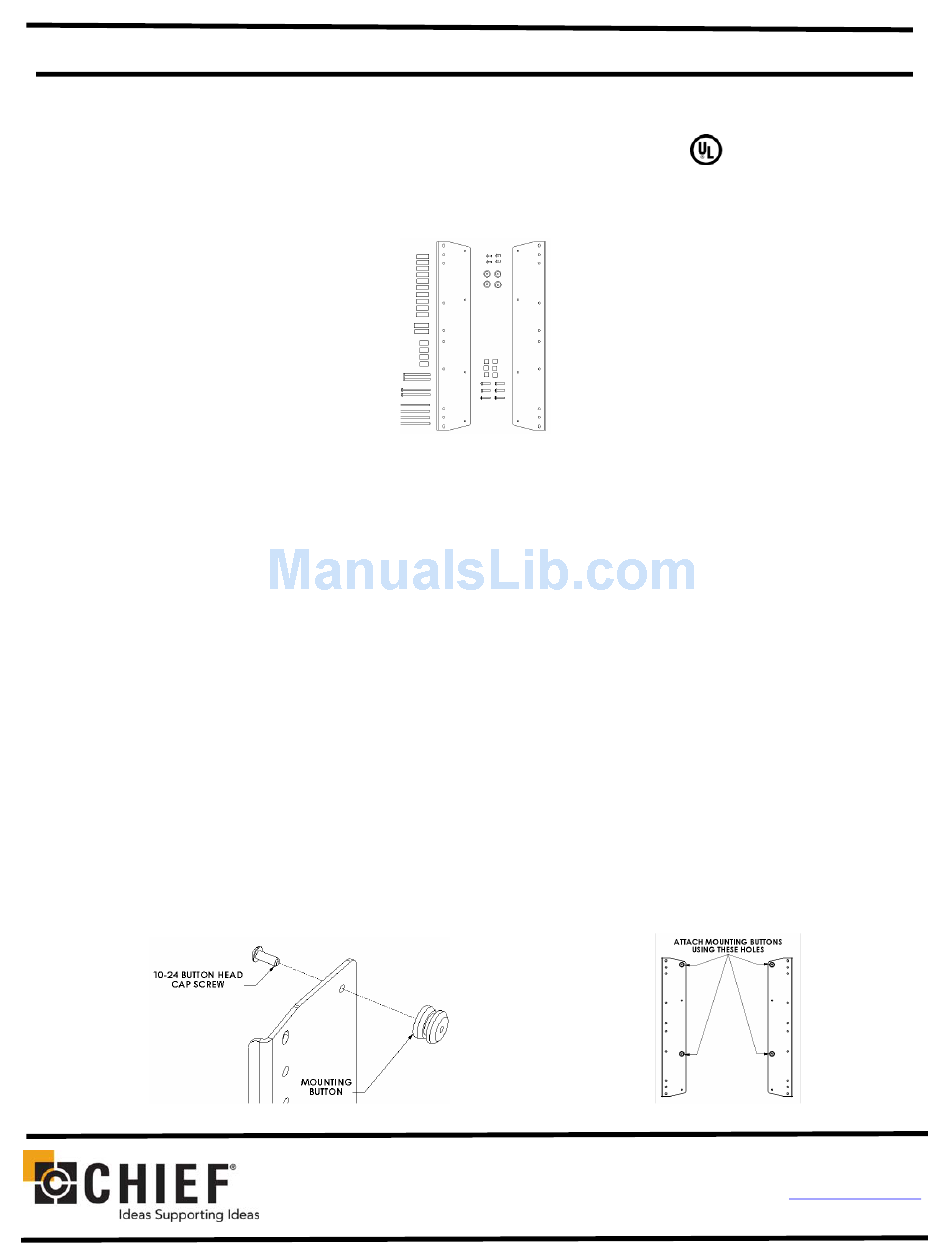

1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button with
chamfered hole of mounting button (larger surface) facing bracket, to side brackets (four places) (See Figure 2
& Figure 3).
PSB-2397
DISPLAYS ARE EXTREMELY FRAGILE.
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
BRACKET IS 175 POUNDS (79.38 KG).
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
(4) Mounting Button - Tapped
Figure 1
(6) .5 x .316 x .5 Nylon Spacer
(10) .50 x .252 x 1.375 Nylon Spacer
(4) .5 x .219 x 1.0 Nylon Spacer
(2) M5 x 80mm Phillips Head Cap Screw
(1) 1/8 Allen Key
Figure 3
8804-000227 REV. C
2004 Chief Manufacturing
www.chiefmfg.com
08/05
