CHIEF PSM-2394 Installation Instructions

Flat panel display static mount

Advertisement

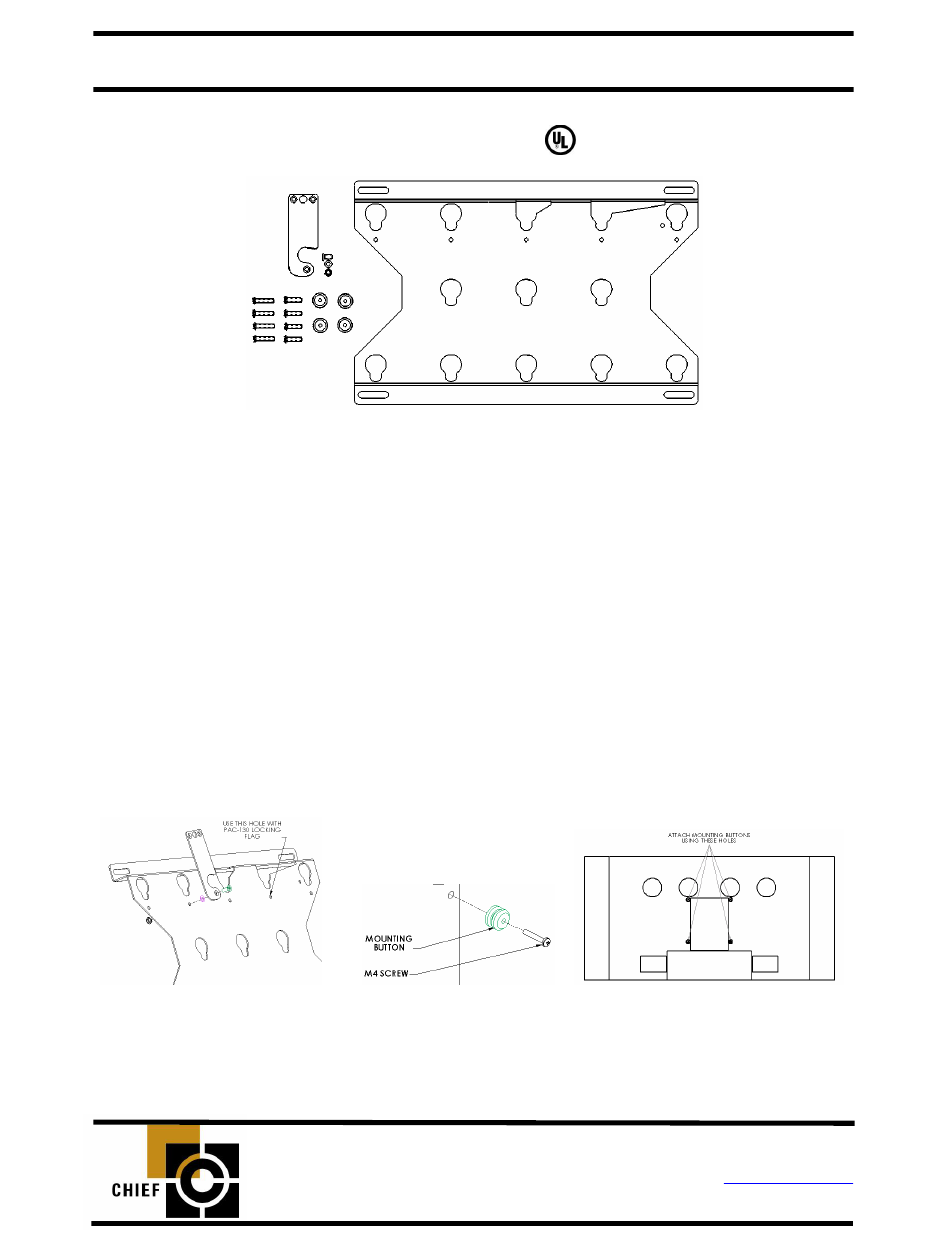

I N S T A L L A T I O N I N S T R U C T I O N S
FLAT PANEL DISPLAY STATIC MOUNT
(1) Flat Panel Display Static Mount
(1) Latching Flag
(4) M4 x 25mm Phillips Head Screw
(4) Mounting Buttons-Yellow Zinc
BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
installation instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
CAUTION!
1. Attach latching flag to mount using the 10-24 Phillips flat head screw, Nylon washer, and
Nylock nut (see Figure 2). Tighten until friction will hold the flag in place.
2. Attach mounting buttons to display using four M4 screws provided (see Figure 3 &
Figure 4)
.
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA
PSM-2394
Figure 1
Displays are Extremely Fragile.
Figure 3
(1) 10-24 x .5 Phillips Flat Head Screw
(1) Nylon Washer
(4) M4 x 20mm Phillips Head Screw
(1) 10-24 Nylock Nut
Figure 4
8805-000095 REV C
2006 Chief Manufacturing
www.chiefmfg.com
10/06
