CHIEF PSB-2306 Installation Instructions

I N S T A L L A T I O N I N S T R U C T I O N S
PLASMA/LCD DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service.
(2) Interface Brackets
(4) 10-24 X .5 Button Head Cap Screws
(4) .875 x .33 x .375 Nylon Spacer
(1) M5 Allen Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
WARNING!

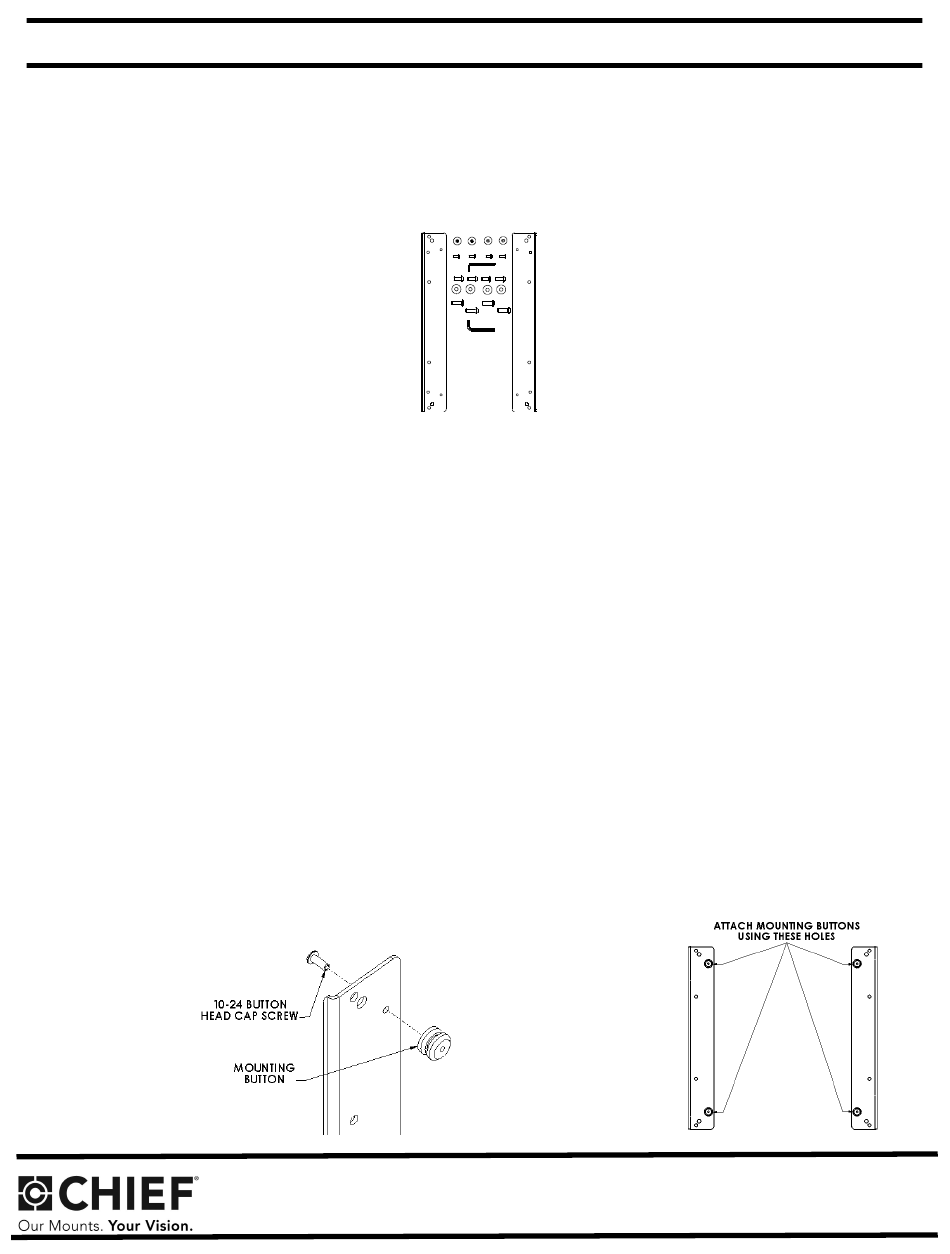

1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button,
with chamfered hole of mounting button (larger surface) facing bracket, to bracket (four places) (see
Figure 2 & Figure 3). Make sure bends of interface bracket face away from buttons.
Figure 2
PSB-2306
PLASMA/LCD DISPLAYS ARE EXTREMELY FRAGILE.
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
MOUNT IS 200 POUNDS (90.72 KG).
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
P: 800.582.6480 / 952.894.6280 F: 877.894.6918 / 952.894.6918
Figure 1
(4) Mounting Buttons - Tapped
(4) M8 x 25 mm Button Head Cap Screw
(4) M8 x 20 mm Button Head Cap Screw
(1) 1/8" Allen Key
Figure 3
8804-000211 RevC
©2009 Milestone AV Technologies,
a Duchossois Group Company
07/09
