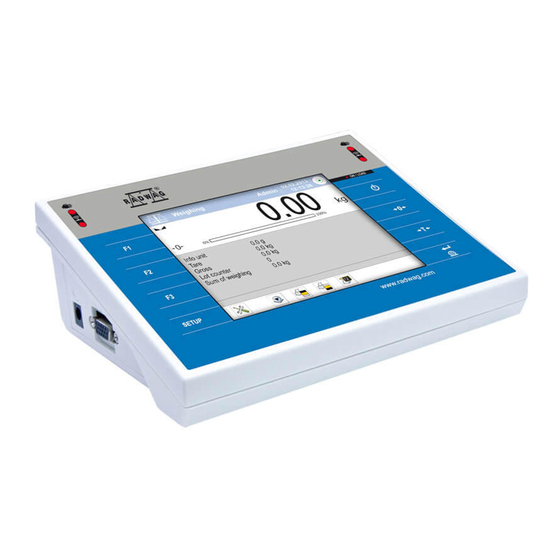

Page 1 PUE 7.1 WEIGHING INDICATOR USER MANUAL ITKU-88-03-07-18-A...
Page 2 JULY 2018...
Page 3: Table Of Contents
5. WEIGHING INDICATOR STRUCTURE ....................... 11 5.1. Main dimensions ............................ 11 5.2. Description of connectors........................12 5.2.1. Connectors’ description in PUE 7.1 .................... 12 5.2.2. Connectors’ description in PUE 7.1P ..................12 5.2.3. Description of glands PUE 7.1P....................12 5.2.4. Connector with RS232 and I/O ....................13 6.
Page 4 16.2.3. Templates for printouts......................39 16.3. Printouts activation..........................41 16.4. Barcode scanner..........................41 16.4.1. Port for barcode scanner......................41 16.4.2. Prefix / Suffix..........................42 16.4.3. Field selection ........................... 42 16.4.4. Test............................44 16.5. Transponder card reader ........................45 16.5.1. Com port for transponder card readers ..................45 16.5.2.
Page 5 22.4. Adjustment track record ........................82 23. SOFTWARE UPDATE ..........................82 23.1. ON-LINE updating..........................83 23.2. Update from pen drive ......................... 84 23.3. Changes in software ..........................85 24. REMOTE DESKTOP..........................86 25. SPECIAL FUNCTIONS OF WORKING MODES..................86 25.1. Working modes accessibility ........................ 88 25.2.
Page 6 31.4. Editing a product to be controlled....................... 135 31.5. Control start procedure ........................138 31.6. Control aborting procedure ........................ 139 31.7. Logging out from a control process in progress.................. 140 31.8. Non-destructive average tare control mode ..................141 31.9. Performing non-destructive testing in mode Empty-Full ..............148 31.10.
Page 7 37.3. Adding new items in databases......................207 37.4. Deleting items in databases ....................... 207 37.5. Printing items from databases......................208 37.6. Context menu ............................ 208 37.7. Database edit window........................210 37.7.1. Operators’ database........................ 210 37.7.2. Database of products ......................210 37.7.3.
Page 8 40.4.9. Send the result immediately in current unit................256 40.4.10. Switch on continuous transmission in basic unit..............257 40.4.11. Switch off continuous transmission in basic unit..............257 40.4.12. Switch on continuous transmission in current unit ..............257 40.4.13. Switch off continuous transmission in current unit ..............258 40.4.14.
Page 9: Intended Use
1. INTENDED USE Weighing indicators PUE 7.1 are devices intended for scales designed mostly for industry. They are produced in two versed on a strain gauge and housing: plastic and rack mounted stainless steel. TFT 5.7” colourful graphic displays with touch panels allows for intuitive operation without using keys.
Page 10: Unpacking And Mounting
D. Warranty does not cover: • Mechanical failures caused by inappropriate maintenance of the device or failures of thermal or chemical origin or caused by atmospheric discharge, overvoltage in mains or other random event, • Inappropriate cleaning. E. Forfeiture of warranty appears after: •...
Page 11: Weighing Indicator Structure
5. WEIGHING INDICATOR STRUCTURE 5.1. Main dimensions Dimensions of PUE 7.1 in plastic casing Dimensions of PUE 7.1P with stainless housing...
Page 12: Description Of Connectors
5.2. Description of connectors 5.2.1. Connectors’ description in PUE 7.1 1 – Ethernet RJ45 1 – power supply socket 2 – RS232 (COM1) 2 – I/O, RS232 (COM2) 3 – USB 5.2.2. Connectors’ description in PUE 7.1P 1 – Ethernet RJ45 1 –...
Page 13: Connector With Rs232 And I/O
• Press to start the operating system loading procedure. Windows CE together with RADWAG software loading is signalled by blinking the red diode ON/LOAD. • When the loading procedure is completed the main software window appears.
Page 14: Keypad Overlay
7. KEYPAD OVERLAY 8. FUNCTIONS OF KEYS Description Turning on/off the scale Zeroing Tarring Printing out the result or confirming some entered data Function key (entering the menu) Programmable key Programmable key Programmable key...
Page 15: Program Structure
9. PROGRAM STRUCTURE The main menu has been divided into twelve functional groups. In every group there are parameters of similar use. Pictogram Description Scale Databases Reports Working Modes Communication Devices Display Inputs / Outputs Authorization Units Other User Adjustment Info Update Remote desktop...
Page 16: Indicating Window
10. INDICATING WINDOW Main view: In the main application window one can see four separate parts: • Top bar, • Weighing window, • Workspace, • Function keys. 10.1. Top bar The top bar on the display contains the following data: Pictogram and name of an active working mode Logged user Pictogram of an active connection with a computer...
Page 17: Weighing Window
Symbol for active connection with E2R SYSTEM Device name Date and time 10.2. Weighing window The weighing window contains data on carried out weighing process: 10.3. Workspace The workspace is located under the weighing window: The workspace features three displaying templates. The upper section of the workspace comprises a graphic information on which of the three templates is enabled.
Page 18: Function Keys
10.4. Function keys Below the workspace area there is a set of on-screen function keys: The on-screen function keys are editable in each of the available working modes. The procedure of enabling/disabling function keys is described in point 17.2 of this user manual. 11.
Page 19: Logging Out Procedure
• Enter the password and confirm it with button, • Program returns to the main window, the logged in operator name is displayed instead of <Log in> sign at the top bar of the main window. 11.2. Logging out procedure •...
Page 20 Advanced Access to parameters in submenus: <Weighing>, <Working Operator modes>, <Communication>, <Devices> , <Display> <Others> . Can start and perform all weighing procedures. Access to <Export the weighing database to a file> in menu <Reports> Administrator Access to all user parameters, functions and databases Can start and perform all weighing procedures.
Page 21: Navigating Within The Menu
12. NAVIGATING WITHIN THE MENU Owing to the colour display with the touch panel navigating within the menu is simple and intuitive. 12.1. Keys Entering the main menu Menu list „up” Menu list „down” Scrolling „up-down” Enter (OK) Abort Add a new item in a database Disabling the formerly selected record e.g.
Page 22: Return To Weighing
Reading a printout template from a *.lb file (active after connecting a pen drive) Saving printout template in a file format *.lb (option enabled on plugging a portable data storage device to scale port) Variables for a printout template One level up Immediate exit to the main window 12.2.
Page 23: Zeroing
• Avoid applying mechanical shocks to the weight pan: • Loads should be placed in the centre of the pan (eccentric errors are outlined in PN-EN 45501 chapter 3.5 and 3.6.2): • Do not apply concentrated forces (all load in one point): •...
Page 24: Tarring
Zeroing is possible only when the indication is stable. Caution: Zeroing is possible only within ±2% of full range around zero. If zeroing value is not within ±2% of maximal capacity the following message will be displayed: 13.3. Tarring In order to tare the scale choose a platform on the touch panel if necessary, put a package on the pan and press .
Page 25: Inscribing Tare
13.4. Inscribing tare It is possible to inscribe a tare value. Procedure: • While in any work mode press , then the screen keyboard is displayed, • Inscribe tare and press • The program returns to weighing and the and the display shows the entered value with the „–”...
Page 26: Scale Parameters
Possible selection: • gram [g] • kilogram [kg] • carat [ct] • pound [lb] • ounce [oz] * • Newton [N] * – weighing unit inaccessible in a verified scale Caution: 1. The user can also declare the start unit and determine two custom weighing units (user defined) –...
Page 27: Median Filter
LO Threshold Last digit 14.1. Median filter The median filter is intended for eliminating short-lasting mechanical shocks. Procedure: • Enter < Weighing> according to ch. 14 of this manual, select < Median Filter> and then set an appropriate value. Accessible settings: None - median filter is off 0.5, 1, 1.5, 2, 2.5 - filtering level to choose 14.2.
Page 28: Autozero
14.3. Autozero The autozero function has been implemented in order to assure precise indications. This function controls and corrects „0” indication. While the function is active it compares the results continuously with constant frequency. If two sequential results differ less than the declared value of autozero range, so the scale will be automatically zeroed and the pictograms will be displayed.
Page 29: Last Digit
14.5. Last digit The last digit option < Last digit> is to switch off the last digit of measured mass indication – the measurement is carried out with decreased accuracy. Procedure: • Enter group of parameters < Weighing> in accordance with ch. 14 of this user manual, select parameter <...
Page 30: Rs 232 Settings
15.1. RS 232 settings Procedure: • Enter < Communication> according to ch.15 of this manual, select < RS232 (1)> or < RS232 (1)>, and then set an appropriate value. For RS 232 following parameters are accessible: • Baud Rate - 4800, 9600, 19200, 38400, 57600, 115200 bit/s •...
Page 31: Tcp Protocol Setting
• Enter the required number and press Caution: The number of TCP port in RADWAG instruments is set to default value: 4001. 15.4. Wi-Fi 15.4.1. Wi-Fi network status In order to view selected network parameters click <Network Status> field.
Page 32: Available Networks
Selected network and parameters set for connection are stored within the scale program, each time the scale is turned on it connects to the selected network in accordance with pre-set parameters. 15.4.2. Available networks The user can view < Available networks> detected by the scale. Procedure: •...
Page 33: Devices
Caution: 1. The above settings serve only for information purposes. Transmission parameters must be set in order to comply with customer’s local network settings. 2. <MAC address> parameter is assigned to a particular device automatically and it is characterised with <Read only> attribute. 3.
Page 34: Computer Address
The scale can communicate with a computer via following ports: • RS232 (1), • RS232 (2), • Tcp. 16.1.2. Computer address Procedure: • Enter < Devices> parameter group as described in chapter 16 of this manual, • Choose „ Computer / Address”...
Page 35: Weighing Printout Template
16.1.4. Weighing printout template Users in parameter < Weighing Printout Template> can define variables included in the printout from the scale to a computer. Procedure: • Enter < Devices> parameter group as described in chapter 16 of this manual, • Choose „ Computer / Weighing Printout Template”...
Page 36: Connect To Ep Server
Procedure: • Enter < Devices> parameter group as described in chapter 16 of this manual, • Choose „ Computer / E2R System / System is active” and then set an appropriate value. Accessible settings: System is not active System is active •...
Page 37: Established Connections
Caution: In case of no Internet connection or incorrect Ethernet transmission parameters of the instrument, the following message is displayed: < Operation failed>. 16.1.7. Established connections In < Established connections> submenu, a list of all connections established with other instruments is generated automatically. Each connection contains the following information: IP address, port number and connection time.
Page 38: Printer
16.2. Printer In < Printer> submenu users can: • Set communication with a printer, • Set code page of a printer, • Set templates of printouts, • Activate/deactivate printout of demanded standards. To enter < Printer>, press and then: „ Printer”.
Page 39: Templates For Printouts
16.2.3. Templates for printouts Enter < Printouts> to define printout templates. Procedure: • Enter parameter group < Devices> as described in chapter 16 of this manual, then choose „ Printer / Printouts”, • After editing a template a memo box with the default content and the screen keyboard, •...
Page 40 Formulation Report Printout Template See ch. 30.5 Printout Template of an Ingredient in a Formulation PGC Report Printout Template See ch. 31.14 (Control of Packaged Goods) Average Tare Report Printout Template See ch. 31.13 (Control of Packaged Goods) SQC Report Printout Template See ch.
Page 41: Printouts Activation
16.3. Printouts activation < Printouts activation> submenu enables activation/deactivation of demanded standards printout. Procedure: • Enter < Devices> parameters group, following point 16 of this manual select „ Printer / Printouts activation”, • Activate/deactivate demanded standard intended for printout. Where: - Inactive standard - Active standard 16.4.
Page 42: Prefix / Suffix
Caution: A special protocol is required in order the code be received by RADWAG equipment. It is required to program an appropriate prefix and suffix. Prefix – one byte 01 hexadecimally, suffix one byte 0D hexadecimally.
Page 43 Source warehouse Target warehouse Dosing process Formulation Universal variable 1 Universal variable 2 Universal variable 3 Lot number Batch number • Select an item and then you can edit following parameters: Declaring an item, according to which searching Filtering is supposed to be performed Setting the first significant character in code from Offset which the comparison with items is performed during...
Page 44: Test
Start marker Start marker declaration End marker End marker declaration Inventory of items to be selected for filtering: Record Item for filtering Product None, Name, Code, EAN Code Operator None, Name, Code Customer None, Name, Code Package None, Name, Code Source warehouse None, Name, Code Target warehouse...
Page 45: Transponder Card Reader
• After scanning the code is entered to the ASCII field and HEX filed and at the bottom of the window a test result is displayed. When: • <Prefix> and <Suffix> declared in settings are the same as <Prefix> and <Suffix>...
Page 46: Procedure Of Attributing The Card Number To An Operator
16.5.2. Procedure of attributing the card number to an operator To use a transponder card to log on an operator the card needs to be ascribed to the operator in the database of operators. Procedure: • Connect the transponder card reader to the required communication port (RS 232 (1) or RS 232 (2)), •...
Page 47: Communication Protocol Frame
16.6.2. Communication protocol frame PUE 7.1 weighing indicator with following displays: • WD display, • WWG display. To start cooperation of PUE 7.1 with displays go to parameter < Sample> and define an appropriate communication protocol. Procedure: • Enter parameters’ group <...
Page 48: Communication Port
Caution: For detailed overview of memory map and of variables of Modbus RTU communication protocol go to chapter 38 of this manual. 16.7.1. Communication port Procedure: • Enter < Devices> parameter group as described in chapter 16 of this manual, select „ Modbus RTU / Port”...
Page 49: Display
Procedure: • Enter parameters’ group < Devices> according to ch. 16 of this manual, • Select „ Advanced settings / Number of printers”, next set demanded number of printers (1, 2 or 3), • < Devices> parameters group will automatically be extended with new positions.
Page 50: Text Strings
17.1. Text strings In < Text information> users can set: Display template Data displayed in the workspace. Left displaying template Detailed description in point 17.1.1. Right displaying template Font Submenu on font settings. Changing font type for text data Type displayed in the workspace.
Page 51 The upper section of the workspace comprises a graphic information on which of the three templates is enabled. Changing of the template is carried out by dragging the workspace to the right or left. Change of the displaying template is carried out in submenu: “...
Page 52: Function Keys
Default settings of a displaying template in each of the working modes: Weighing: {40:Product:,-15}{50} {40:Tare:,-15}{9}{11} {40:Gross:,-15}{8}{11} {40:Number:,-15}{15} {40:Total:,-15}{16}{11} Parts counting: {40:Product:,-15}{50} {40:Sample weight:,-15}{35}{11} {40:Net:,-15}{7}{11} {40:Tare:,-15}{9}{11} Percent setup: {40:Product:,-15}{50} {40:Sample weight:,-15}{36}{11} {40:Net:,-15}{7}{11} {40:Tare:,-15}{9}{11} Dosing process: {175} Dosing: {220} Formulation: {40:Ingredient:,-12}{230}/{231}[{226}] {40:Portion:,-12}{228}{11}/{227}{11} {40:Charge:,-12}{232}/{233} {40:Completed:,-12}{225:F0} Product: {50}...
Page 53: Displaying Platforms
Function keys and proximity sensors are programmable specifically for each working mode. If a button has been attributed then it is equal to activating a function. If no function is assigned to a button or sensor then it remains inactive. Procedure: •...
Page 54: Bargraph
17.4. Bargraph A bargraph is a typical visualization procedure. It helps in quick weighing. It requires less concentration to read if a weighing is between minimum and maximum thresholds. 17.4.1. Bargraph type To see the bargraph on the screen enable it in parameters. Procedure: •...
Page 55 Stable – signalling of OK thresholds is previewed on exceeding LO threshold and OK threshold working mode reaching stable measurement result; Unstable – signalling of OK thresholds is previewed on exceeding LO threshold Colour selection for signalling MIN threshold. Min threshold signalling colour 18 colours palette available.
Page 56: Bargraph "Signalling Of Checkweighing Ranges
• If the mass value is over the MAX threshold red fields with red arrows on the right are visible. The higher mass value the more red arrows are visible. Thresholds MIN and MAX are on the borders between red and green fields.
Page 57: Bargraph Type: „Linear
Means of operation: • This type of bargraph comprises one green and 2 red fields. • The left red field – signals that the load on the pan is lower than the minimum weighing threshold (Min threshold); • The central green field – signals that the load on the pan is within the set required interval for the weighed product (OK value between Min and Max thresholds);...
Page 58: Control" Bargraph
Means of operation: The bar graph represents in a linear way the measuring range of a scale. In addition, the bar graph can indicate weighing thresholds MIN, MAX, if they have been determined: • Signalization of mass below the value set in MIN threshold: •...
Page 59 Where: Qn – nominal mass T – T error 2T – double T error • Signalling mass below set value of Qn-2T: • Signalling mass between the values of Qn-2T and Qn-T: • Signalling mass between the value of Qn-T and Qn+T: The bargraph field between the above values gets automatically rescaled and it is additionally marked by a “magnifier”...
Page 60: Workspace" Bargraph
Where: Qn – nominal mass T – T error T2 – T2 error • Signalling mass below set value of Qn-T2: • Signalling mass between the values of Qn-T2 and Qn-T: • Signalling mass between the value of Qn-T and Qn+T: The bargraph field between the above values gets automatically rescaled and it is additionally marked by a “magnifier”...
Page 61 Colour selection for signalling MIN Min threshold signalling colour threshold. 18 colours palette available. Colour selection for signalling OK OK threshold signalling colour threshold. 18 colours palette available. Colour selection for signalling MAX Max threshold signalling colour threshold. 18 colours palette available. Means of operation: Bar graph home screen contains workspace which background can visualize MIN, MAX thresholds if they are declared:...
Page 62: Inputs / Outputs
18. INPUTS / OUTPUTS PUE 7.1 weighing indicator are equipped with 4 inputs / 4 outputs. To adjust software to the users needs configure inputs outputs in the submenu in the submenu < Inputs / Outputs>: • indicator inputs, •...
Page 63 None Output disabled Stabile Stable weighing result over LO threshold value MIN stable Stable weighing result below the MIN threshold MIN non-stable Non-stable weighing result below the MIN threshold Stable weighing result between MIN and MAX OK stable thresholds Non-stable weighing result between MIN and MAX OK non-stable thresholds MAX stable...
Page 64: Authorization
19. AUTHORIZATION The submenu < Authorization> is accessible only while being logged in as the Administrator. In this group of parameters access levels can be outlined. To enter submenu < Authorization>, press and then „ Authorization”. 19.1. Anonymous Operator The program allows to attribute the authorization access level to an operator who does not perform the log-in procedure (anonymous operator).
Page 65: Printouts
Accessible authorization levels: None, Operator, Advanced Operator, Administrator. Caution: Setting <None> allows free access to settings of date and time (without the need of Logging in). 19.3. Printouts Default settings of the scale allows a logged on Administrator to edit printout templates.
Page 66: Delete Older Data
• Database of Images, • Database of Identification processes, • Weighing counter, • Delete older data. Procedure: • Enter parameters’ group < Authorization> according to ch. 19 of this manual, choose < Databases edition>, and then set the parameter. Accessible authorization levels: None, Operator, Advanced Operator, Administrator.
Page 67: Set Element From The Database
19.6. Set element from the database The user may set authorization levels for scales operator when it comes to selection of particular database positions by the operator: • Products, • Customers, • Formulas, • Dosing processes, • Packaging, • Warehouse, •...
Page 68: Units
Procedure: • Enter parameters group < Access level>, according to ch. 19 of this manual, select < PGC> and then set a right option. Accessible authorization levels: None, Operator, Advanced Operator, Administrator. 20. UNITS Scale, in submenu < Units> enables selecting: •...
Page 69: Start Unit
• Set required accessibility criterion for the weighing units and exit to weighing mode. 20.2. Start unit Procedure: • Enter submenu < Units> in accordance with ch. 20 of this user manual, • Select option < Start units> and choose a start unit from displayed list of available weighing units.
Page 70: Acceleration Of Gravity
• Exit to main menu with procedure of saving changes, • Press symbol of the new weighing unit visible in the weighing window, which activates list of available weighing units with new custom unit added at the end of the list. Caution: Defined unit 2>...
Page 71: Languages
21.1. Languages Procedure: • Enter submenu < Others> according to ch. 21 of this manual, choose < Language> and set the parameter. Accessible languages: • Polish, English, German, French, Russian, Spanish, Czech, Hungarian, Estonian, Latvian, Italian, Greek, Turkish, Thai, China, Roman. 21.2.
Page 72: Sound Signal
Icon Name Value Description Selection of date format. Possible values: d.M.yy, d.M.yyyy, d/M/yy, dd.MM.yy, dd.MM.yyyy, dd.MMM.yyyy, dd/MM/yy, Date format yyyy.MM.dd * dd/MM/yyyy, dd-MMM-yy, dd-MM-yy, M/d/yy, M/d/yyyy, MM/dd/yy, MM/dd/yyyy, yy/MM/dd, yy-M-dd, yy-MM-dd, yyyy.MM.dd, yyyy-M-dd, yyyy-MM-dd. Selection of time format. Possible values: H.mm.ss, H:mm:ss, H-mm-ss, HH.mm.ss, HH:mm:ss, HH-mm-ss, H.mm.ss tt, Time format...
Page 73: Screen Volume
21.4. Screen volume The user can control volume level being an effect of touching the screen, the volume can be modified within 0% - 100% range. Default value of the volume level is 0%. Procedure: • Enter < Others> submenu as described in chapter 21 of this manual, •...
Page 74: Energy Saving Mode
Procedure: • Enter submenu < Others> according to ch. 21 of this manual, • Select < Touch Screen Calibration> and then an editing field appears, • Using a thin and soft pointer press (keep pressed for some time) in the point where the cross appears, after indicating the 4 place confirm changes by pressing 21.7.
Page 75: Log Out Automatically When Time Elapses
Procedure: • Enter submenu < Others> according to ch. 21 of this manual, • Select < Screen timeout> submenu, <Screen timeout> editing window with an on screen keyboard is displayed, • Enter required time value in [s] and press button to confirm. 21.9.
Page 76: Proximity Sensor
• Enter respective value and press button to confirm changes. When the amount of incorrect logging in attempts is exceeded, the following message is displayed: < Operator blocked>. 21.11. Proximity sensor The user can specify sensitivity for proximity sensors operation (sensors operation dependant on distance between the sensor and operator’s hand).
Page 77: Start Logo
21.13. Start logo Submenu < Start logo> allows to substitute a “start” graphic file of a scale with another one located on a memory stick. Procedure: • Put a memory stick into USB port of a scale, • Enter submenu: „ Others / Start logo”...
Page 78: Export / Import Of Settings
10 [s] - Displaying an information about errors for 10 [s] - Displaying an information about errors until it has been confirmed with button. 21.15. Export / import of settings The user can export/import scale settings (printout templates, user parameters) using flash memory stick.
Page 79: Adjusting Procedure
22.1. Adjusting procedure • Enter submenu < User Adjustment > according to ch. 22 and select: “ Adjustment”, • After entering the parameter the following message box appears: • Take the load off the pan of platform 1, • Press button .
Page 80: Start Mass Adjustment
• Accept the message box by pressing key and return to weighing mode. < Setting of start mass> parameter allows to adjust start mass of platform 1. Caution: The factory adjustment process for platforms 2, 3, 4 is analogical to the one described above.
Page 81: Report From Adjustment Process
• After the procedure has been completed the following message box appears: • Accept the message box by pressing key and return to weighing mode. 22.3. Report from adjustment process Parameter < Report printout> enables activating the function of automatic printout of a report from adjustment process on a printer plugged to the scale.
Page 82: Adjustment Track Record
22.4. Adjustment track record Each completed adjustment process is automatically saved in scale’s database in submenu < Adjustment track record>. In order to enter submenu < Adjustment track record >, press Adjustment track record”. Files key, and „ User Adjustment / comprising reports have names with time and date when the process was performed.
Page 83: On-Line Updating
• Select parameter < Software version on server> which reads software version and its availability date on RADWAG server. Caution: In case of no connection with the global network Intranet or incorrect settings of Ethernet parameters, the scale displays the following message: “...
Page 84: Update From Pen Drive
• After downloading the update press an active key which is followed by displaying a message: • Accept the message by pressing key. The indicator shall restart with update installing procedure. 23.2. Update from pen drive Procedure: • Copy file “update.pue71” containing the current software version onto the external data storage device (to the main catalogue), •...
Page 85: Changes In Software
• Accept the message by pressing key which automatically starts the updating process. On its completion the indicator displays the following message: • Accept the message by pressing key. The indicator shall restart with update installing procedure. 23.3. Changes in software Parameter <...
Page 86: Remote Desktop
24. REMOTE DESKTOP The balance enables cooperation with < Parameters editor> software. Connection between the weighing instrument and computer software enables „remote access” to the instrument. Procedure: • Establish connection between the balance and „Parameters editor” software, • Press button and enable < Remote desktop>...
Page 87 Transactions Work modes can be configured in < Working Modes>. To enter submenu < Working Modes>, press and then: „ Working Modes”. The settings of specific working modes provide access to special functions adjusting operation of the instruments to customer’s individual needs. Part of the special functions have global effect, i.e.
Page 88: Working Modes Accessibility
Caution: First left screen button (local settings) in the main window of every working mode is ascribed to access settings of current mode 2. The change in on mode results in the same change for other working modes working modes. 25.1.
Page 89: Down-Weighing
Accessible options: Manual every stable Manual printout of each stable weighing result for mass measurement over -LO- threshold Manual first stable Manual printout of the first stable weighing result for mass measurement over -LO- threshold Automatic first stable Automatic printout of the first stable weighing result for mass measurement over -LO- threshold Automatic last stable Automatic printout of the last stable weighing result for mass...
Page 90: Checkweighing
25.4. Checkweighing In case of enabling the checkweighing mode, printouts are performed only when a weighing is between MIN and MAX thresholds that have been defined before. Procedure: • Enter parameters group < Working Modes> according to ch. 25 of this manual, •...
Page 91: Labelling Mode
25.6. Labelling mode Labelling mode can be initiated together with every working mode. The labelling system is intended to print labels for marking weighed goods e.g. a packing process. The program can print standard labels for single products, cumulative labels for sticking to bulk containers and cumulative labels for cumulative labels for sticking to the large transport containers holding bulk containers.
Page 92: Setting Of The Number Of Cumulative Labels To Print
25.6.2. Setting of the number of cumulative labels to print In the parameter < No. of cumulative labels> define the amount of sum labels. They are printed on connected printer. Procedure: • Enter parameters group < Working Modes> according to ch. 25 of this manual, •...
Page 93 Procedure: • Enter < Working modes> parameter group as described in chapter 25 of this manual, • Enter the required working mode and choose: „ Labelling mode / C label automatic triggering / Mode” and then set the required option: None Cumulative label printout is initiated by pressing Mass...
Page 94: Automatic Triggering Cumulative Labels Of Cumulative Labels
• Set the appropriate value for automatic triggering cumulative labels: − If parameter < Mode> is set to <Mass> then enter the required value of total mass to exceed in order to print the C label, − If parameter < Mode>...
Page 95: Statistics
Printing followed by zeroing label counter or the total mass Printing without zeroing label counter or the total mass By default setting button is accessible in the bottom part of the display but activating the button can be done in submenu: „...
Page 96: Differential Weighing
Options: global statistics, Global statistics for every product. Product Caution: In case of operation with < Statistics> set to <Product> bear in mind that after restarting, only statistics of the last weighed product are recovered. 25.8. Differential weighing Function < Differential weighing>...
Page 97: Reporting Realized Processes Of Differential Weighing
Charge Measuring series value for differential weighing 25.8.2. Reporting realized processes of differential weighing Upon each completed differential weighing process the report is generated automatically. Caution: In: „ Devices / Printer / Printouts / Differential Weighing Report Printout Template” submenu you can freely modify report template (refer to ch.
Page 98: Min 2, Max 2 Thresholds Active
• Enter the required working mode and choose < Peak hold> and then set the required option. Where: Scale operates in standard weighing mode Scale operates with mode forcing lock of maximum indication on the display, i.e. peak hold. • On loading the weighing pan with changeable force, the displays locks the indication of the maximum measured force.
Page 99: Information About Saved Measurement
25.11. Information about saved measurement The user can activate message informing on the fact that a particular weighing result has been recorded in a database, the message is displayed each time after performed measurement. Procedure: • Enter submenu < Working modes> according to ch. 25 of this manual, •...
Page 100 Variables list: HEADER WEIGHING FOOTER Dashes Number of measurements Working mode Date Working mode Date Date Time Time Time Customer Scale type Scale type Target warehouse Factory number Factory number Source warehouse Operator Operator Product Customer Customer Package Target warehouse Target warehouse Lot number Source warehouse...
Page 101: Packaging Quantity Query
25.13. Packaging quantity query The user can use packaging weight multiplier function. To do it parameter: < Ingredient weight entered manually> must be activated. Procedure: • Enter submenu < Working modes> according to ch. 25 of this manual • Enter „Weighing” mode and activate option: < Ingredient weight entered manually>, •...
Page 102: Local Setting Of A Working Mode
26.2. Local setting of a working mode Local setting of a working mode < Weighing> are accessible on pressing a hot key < Local parameters>: Save Mode Detailed description in ch. 25.2 of the user manual Down-weighing Detailed description in ch. 25.3 of the user manual Checkweighing Detailed description in ch.
Page 103: Starting The Working Mode
27.1. Starting the working mode Procedure: • While in the main window press in the top bar, then you will see a submenu <Working Modes> comprising a list of modes, • Choose < Parts counting >, program automatically returns to the main window displaying icon in the top bar, •...
Page 104: Automatic Correction Of Reference Mass
27.2.1. Automatic correction of reference mass It concerns the < Parts counting> working mode Working mode < Parts counting> comprises a special function < Automatic correction of reference mass>, that can be used for correcting the unit mass <SMP>. To enable the function in parameters you need to: •...
Page 105: Minimum Reference Mass
Caution: While the parts counting function is active the functionality of button is changed. Pressing does not result in printing and saving weighments. 27.2.2. Minimum reference mass It concerns the < Parts counting > working mode Users before beginning the procedure of single piece mass evaluation can declare “minimum reference mass”...
Page 106: Setting A Reference Unit By Weighing A Sample
Caution: • In case of entering a reference unit higher then the maximum weighing range of the main scale the program will display a message box: <Value too high>, • In case of entering the single piece mass lower than 0.1 d, the program will display a message box: <Value to small>.
Page 107: Setting The Reference Mass By Entering Single Piece Mass Directly To The Database
27.5. Setting the reference mass by entering single piece mass directly to the database After selecting a product from the product database a mass of single piece from the field <Mass> is used. Procedure: • While in < Parts counting > press •...
Page 108: Starting The Operating Mode
28.1. Starting the operating mode Procedure: • While in the main window press in the top bar of the window then you will see a submenu <Working Modes> comprising a list of modes, • Choose mode < Deviations>, the program will automatically returns to the main window displaying icon in the top bar •...
Page 109: Reference Unit Mass Estimated By Weighment
29. WORKING MODE - DOSING < Dosing> mode enables carrying out filling and dosing processes of goods on scales featuring a indicator PUE 7.1 series. The working mode enables manual and automatic dosing on a single or simultaneously on many weighing platforms.
Page 110: Starting The Working Mode
29.1. Starting the working mode Procedure: • While in main window of the software, press on-screen key, located in the top bar of the window, which opens submenu <Working Modes> containing the list of available working modes, • Select working mode < Dosing>, the software automatically returns to displaying the main window, and the top bar indicates the pictogram of a selected working mode...
Page 111: Local Setting Of A Working Mode
A dosing process can be searched in a database by: • the name of a dosing process < > • the code of a dosing process < > Processes carried out on different weighing platforms operated by the same indicator, can also be dependent on each other, e.g.: dosing on weighing platform 2 can be initiated only on completing dosing on weighing platform 1, which is confirmed by a signal from appropriate sensor.
Page 112: Description Of Functions And Setting Dosing Process
< Global> settings are dedicated for the process of creating simple dosing processes, e.g.: dosing a single ingredient on all weighing platforms. 29.4. Description of functions and setting dosing process While creating dosing process, the user has access to the following functions: Short Icon...
Page 113 Function determining interval between carrying out the following dosing process steps. The [TI] Delay function determines pending time for the following step counted in seconds. Determination of pending time counted in Time seconds Text description of an interval displayed on Description indicator’s touch panel Zeroing the weighing platform, equal to...
Page 114 Function determining quantity of batches of weighed ingredient, that is added to a dosing process. Mass of a single batch is determined Give number in a product selected from the database [ET] of batching (Products database – field Mass). Product’s mass is multiplied by a specific value, and such repetitions determined mass is added to weighing process.
Page 115: Creating A New Dosing Process
29.5. Creating a new dosing process Creating a new dosing process is initiated by specifying its name and code, followed by determining processes on each of the weighing platforms. Procedure: • Press key and select option < Databases> from main menu then select <...
Page 116: Instances Of Dosing Processes
29.6. Instances of dosing processes 29.6.1. Instance 1 – Manual dosing process of 4 ingredients on 2 weighing platforms Description: A dosing process contains 4 ingredients, which are weighed on two weighing platforms: • Weighing Platform 1: ingredients: Flour and Sugar •...
Page 117 [5s] Place empty Pending for loading an empty container 8. [TI] Delay container for the second product Input 1 has to take increasing tendency – 9. [CI] Input Input 1 – „/” press function key confirming loading a condition container 10.
Page 118: Instance 2 - Automatic Dosing Of 2 Ingredients On 2 Weighing Platforms
Checking condition, whether signal flag 1 is set to value “1” – i.e. checking whether 8. [CF] Flags desired part of the process has been already Signal flag 1 – „1” condition realized on the weighing platform no. 1. If Yes, then dosing process on the second weighing platform shall continue.
Page 119 The condition is marked with signal flags, which determine formulation making process between the weighing platforms, in a way which orders dosing Water ingredient as the second one. The whole process is described below in tables, separately for each weighing platform. Dosing process name: Instance 2 Dosing process code: 2222 Dosing process from a indicator level:...
Page 120: Instance 3 - Mixed Dosing Process
Platform 2 Icon Step Value Description Checking condition, whether signal flag 1 is set to value “1” – i.e. checking whether 1. [CF] Flags Signal flag 1 – desired part of the process has been condition „1” already realized on the weighing platform no.
Page 121 Dosing process is carried out manually and automatically, and it incudes a condition that the dosing sequence is strictly determined – dosing of “Water” ingredient can be initiated only on completing the dosing process of ingredient “Flour” and “Sugar”. Ingredient “Seasoning” will be added as the last one to the dosing process.
Page 122 11. [T] Tare Tare Tarring the weighing platform no. 1 12. [DH] Dose Manual weighing product Sugar to 0,4 kg [Sugar] manually obtain 0,4 kg mass [5s] Unload container Pending for unloading the container with 13. [TI] Delay with product “Sugar”...
Page 123: Reporting Of Completed Dosing Processes
Platform 2: Icon Step Value Description Checking condition, whether signal flag 1 is set to value 1. [CF] “1” – i.e. checking whether desired part of the process Flags Signal flag 1 – „1” has been already realized on the weighing platform no. condition 1.
Page 124: Working Mode - Formulation
Default form of the report from dosing template: ---------------------------------------------- Dosing process ---------------------------------------------- {40:Start date:,-25}{180} {40:End date:,-25}{181} {40:Name:,-25}{175} {40:Code:,-25}{176} {40:Status:,-25}{182} {40:Measurements:,-25} ---------------------------------------------- {185:(50,-20) (7)(11) (40:Nominal Mass:,-25)(186)(11) (40:Difference:,-25)(187)(11) ---------------------------------------------- }{40:Mass:,-25}{184}{11} ---------------------------------------------- The report from each completed process is simultaneously saved in the database of <...
Page 125: Local Setting Of A Working Mode
Local parameters Select formulation Start formula making process Stop formula making process Select formulation ingredient from the list Select previous formulation ingredient to to be processed Select net formulation ingredient to be processed Set “mass from hand” – mass of an ingredient supplied in ready packaged and with determined mass Edit lot number of an ingredient and/or sample of a formulation ingredient...
Page 126: Creating A New Formulation
Enable portion weighing mode of a formulation Portion weighing for a random number of portions (samples) until obtaining a target mass. Enable automatic printout of a formulation report Report printout after completing the formula ma king process 30.3. Creating a new formulation Procedure: •...
Page 127 • After entering a selected weighing platform add the ingredients formulation one by one by pressing < Add> key. List of data created for an ingredient of a formulation: Name Name of an ingredient in a formulation Code Code of an ingredient in a formulation An ingredient of a formulation selected from the Product database of products...
Page 128 3) – in case of declaring the value of the low deviation as greater than the declared ingredient mass, the software displays the following message: 4) – in case the sum of ingredients mass and the value of high deviation are exceeding the maximum capacity of a weighing platform, the software displays the following message: •...
Page 129: Formula Making Process
Edit Delete Cancel • Press “Add” and define a new ingredient of a formulation. • After specifying all ingredients of a formulation go back to the main window by pressing key. 30.4. Formula making process Starting the making process requires that the authorization formula (access level) of the logged user is sufficient to start the process.
Page 130 In case when: 1. The inserted code of the current ingredient is incorrect, and the ingredient is in formulation composition, the software displays the following message: <Incorrect Ingredient Code. Ingredient already in formulation content. Go to this ingredient?>. Accept this message by pressing key.
Page 131: Reporting From Completed Formula Making Processes
Portion: -500.0g Current deviation from the reference mass Charge: 1 / 10 Number of weighed charge / Total number of charges Completed: 0% Process progress Caution: • If on process start the weighing platform is loaded, the software will indicate message <Load appropriate product> while trying to accept a measurement.
Page 132: Working Mode - Pgc (Prepackaged Goods Control)
Caution: Submenu: “ Devices / Printer / Printouts / Formulation report printout template” enables optional modifying of the report template (see ch. 16.2.3 of this user manual). Default form of the report template from formula making process: ---------------------------------------------- Formulation ---------------------------------------------- {40:Start date:,-25}{240} {40:End date:,-25}{241} {40:Name:,-25}{220}...
Page 133: Starting The Working Mode
The computer software enables real time acquiring data from each connected scale. The system allows for starting a control process from the scale or from the level of computer software. The acquired data allow for carrying out a quality control of manufactured packaged goods for: •...
Page 134: Control Settings Mode Window
Where: Entering control settings window. Status of the database product (product name and value 31.2. Control settings mode window Press button located at the bottom of the < PGC> mode home screen which opens control settings window: Where: Selecting product from the database Declaring number of the controlled batch Working mode local settings Returning to the working mode home screen...
Page 135: Local Setting Of A Working Mode
Caution: Before entering the control settings mode carry out Logging procedure, as described in ch. 11.1 of this manual. 31.3. Local setting of a working mode Local settings of the working mode < PGC> are accessible on pressing a hot-key < Local parameters>...
Page 136 Procedure: • Enter submenu “ Databases”, • Enter database < Products> and press required product record. List of data definable for a control: Pictogram Data name Description Name Product name Code Product code Mass Product nominal mass Product tare value (set automatically on Tare selecting a product from the database) Control type: Non-destructive Average Tare,...
Page 137 Remind about Activating message reminding about need measurement of next measurement performance every [min] Submenu for defining internal criteria Internal control of a control (see table below) • List of data for internal criteria Enabling / disabling internal control Internal control criteria Sample quantity Quantity of a product sample...
Page 138: Control Start Procedure
31.5. Control start procedure To start testing: • An operator needs to be logged on with the authorization access level high enough to perform testing. Caution: The Logging on procedure is described in ch. 11. The procedure of outlining the authorization level is described in ch. 19 of this manual. •...
Page 139: Control Aborting Procedure
Caution: If before control start the operator: • Does not remove a load from the weighing pan or other criteria for zeroing are failed (e.g. unstable weighing result) the scale displays a message: <Unable to start control. Zeroing error>, • Does not log in or the logged operator is not authorized to carry out the control, the scale displays a message: <No authorization>, •...
Page 140: Logging Out From A Control Process In Progress
31.7. Logging out from a control process in progress Procedure: • While in control mode press pictogram with name of the logged operator located in the bottom bar of the display, • The operator is automatically logged out and simultaneously a window <Insert Password>...
Page 141: Non-Destructive Average Tare Control Mode
where: Restart control - information for an operator on a possibility to resume a control process in progress - Control resuming button • Pressing the button causes displaying a Logging in window <Insert Password> with the name of previously logged operator. •...
Page 142 - 0,25T criterion value in [g] - Average tare of a packaging in [g] - Standard deviation - Characteristics of negative errors T1 in a sample - Characteristics of negative errors 2T1 in a sample - Net mass of the controlled package - Packaging tare Status - Packaging control status...
Page 143 Pressing key causes moving to the control process with simultaneous saving the determined average mass of a packaging in product record in the database. During the control process in progress the software carries out real-time updating of measurement results and displays them in the corresponding fields for informing an operator on control result: Where: Product...
Page 144 Control status: positive, negative Status Put full Commands on control process with quantity of all measurements in a batch Data on a control process in progress Change of the workspace: numerical data / chart Control completion • Control status Control status features a corresponding graphic interpretation: - positive, - negative (permitted to control sample 2) - negative...
Page 145 Pressing key causes returning to the control process in progress. Pressing key causes moving to displaying a list of completed weighments: In order to return to the control process in progress press key. • Change of the workspace Pressing key causes displaying the workspace in a form of chart with measurement results:...
Page 146 Additionally, pressing the workspace area enables an operator to change its format (from a line chart to a bar chart): In order to disable the chart press key for the second time. After completing the control the scale generates a process summary, and the accomplished control is automatically saved in the scale database:...
Page 147 Pressing key causes printing a report on a printer connected to the scale. Pressing key causes returning to settings window of the working mode < PGC> without printing a report. Caution: In case the scale cooperates with the computer software < E2R System>...
Page 148: Performing Non-Destructive Testing In Mode Empty-Full
Caution: A pattern and example of the report from testing products are described in ch. 31.14 of this manual. A pattern and example of the report from estimating average tare are described in ch. 31.13 of this manual. 31.9. Performing non-destructive testing in mode Empty-Full For mode „Non-destructive Empty-Full”...
Page 149: Performing Destructive Testing In Modes Empty-Full And Full-Empty
Tare of the packaging Status Control status (in accordance with ch. 31.6) Commands on control process Put Empty 1/10 Value of the measuring lot (1/3) Data on a control process in progress (in accordance with ch. 31.6 of this manual) Change of the workspace: numerical data / chart (in accordance with ch.
Page 150: Control In Accordance With Internal Criteria
After the test has been completed the test is summarized (see ch. 31.8) and the results are automatically saved in the database. Caution: A pattern and example of the report from estimating average tare are described in ch. 31.14 of this manual. 31.11.
Page 151 Where: Product Name of the controlled product Code Code of the controlled product Nominal value of the controlled product Average mass of the controlled product Value of the negative disqualifying average Value of the positive disqualifying average Characteristics of negative errors T in a sample (in accordance with ch.
Page 152: Abort Of Control - Procedure
Change of the workspace: numerical data / chart (in accordance with ch. 31.6 of this manual) Abort of control After the test has been completed the test is summarized (see ch. 30.8) and the results are automatically saved in the database. Caution: A pattern and example of the report from estimating average tare are described in ch.
Page 153: Procedure Of Control Completion
31.11.2. Procedure of control completion Completion of control realized in accordance with internal criteria may be carried out in two ways: • Automatically All samples control – number of controlled samples accordant with declared value in <Sample quantity> parameter. On completion of the control a process summary is generated (see point 31.8 of this manual).
Page 154 • Change functions of the hot-keys for the following screens: home screen, settings and process screens. Enable hot-keys: < Set control 1> and < Set control 2> for the above screens. Entering the “settings window” of a control causes displaying data on a control identifying number of the enabled control: Caution: With a multiplatform scale, an operator using the parameter <...
Page 155: Report From Estimating Average Tare
Caution: Processes: • Control carrying out, • Logging out during control in progress, • Control termination, are the same as in case of the above parts of this manual. 31.13. Report from estimating average tare Report example: Average Tare Report U/26/09/09/10/56/T --------------------------------------- Balance Type: WPY KTP...
Page 156: Report From Product Testing
Report pattern: In submenu < Printouts> users can edit the pattern of the average tare report (see ch. 16.2.3). The default pattern is shown below: Average Tare Report {301} --------------------------------------- {40:Balance type:,-20}{44} {40:Max:,-20}{34} {40:d=e:,-20}{33} {40:Factory number:,-20}{32} {40:Date:,-20}{295} {40:Product:,-20}{50} {40:Tare:,-20}{54} g {40:Value 0.25T1:,-20}{298} g {40:Number of measurements:,-20}{299} {40:Standard deviation:,-20}...
Page 157 Nominal Mass: 520 g Tare: 7.9 g T1 error border: 15 g 2T1 error border: 30 g Batch quantity: Number of measurements: 30 Number of T1 errors: 0 Number of 2T1 errors: 0 Min: 518 g Max: 529.5 g Average: 519.9833 g Total: 15599.5 g...
Page 158 Report pattern: In submenu < Printouts> users can edit the pattern of the average tare report (see ch. 16.2.3). The default pattern is shown below: PGC Report {279} --------------------------------------- {40:Balance type:,-20}{44} {40:Max:,-20}{34} {40:d=e:,-20}{33} {40:Factory number:,-20}{32} {40:Start date:,-20}{261} {40:End date:,-20}{262} {40:Operator:,-20}{75} {40:Product:,-20}{50} {40:Batch number:,-20}{260} {40:Nominal Mass:,-20}{53}{278}...
Page 159: Working Mode - Density
32. WORKING MODE – DENSITY Working mode < Density> enables determining density of solids, liquids and materials of high viscosity. The density is determined on basis of Archimedes principle, according to which any floating object displaces its own weight of fluid.
Page 160: Carrying Out Density Determination Procedure
Ask about sample Function ordering inserting number of a sample before number initiating the test procedure Parameter designed for manual determining mass of a pycnometer expressed in [g]. If inserted value is equal Pycnometer mass to „0” then on test procedure start, the pycnometer mass shall be measured.
Page 161 Process course: • Press < Local parameters> key to enter the setting of local parameters in density mode. • Press < Sinker volume> in order to insert the volume of the sinker (given in [cm ]) which is immersed in the tested liquid. •...
Page 162: Determining Density Of Solids
32.3.2. Determining density of solids Density of solids is determined by weighing a solid object in two different medium: in the air and in auxiliary liquid with determined density. The difference between the two measurements is displacement weight, which is used by scale software to calculate the density of tested solid. Before starting the measurement select <...
Page 163: Determining Density Of Pycnometer
Caution: If in the local parameters, < Ask about sample number> function is enabled, then on initiating the process, the system asks for inserting the number of tested sample. The inserted sample number is linked to the process data and saved in the database. •...
Page 164 The excess of liquid pouring through the capillary tube is removed with an absorbent paper. Then, the vessel is immediately placed on a scale, and its mass is determined as quickly as possible. During the mass measurement, due to contraction of the volume of liquid its level usually decreases in the capillary tube, but this does not matter if at the time of placing instrument on the scale, it was completely filled and had correct temperature.
Page 165: Determining Density Of A Porous Body
Caution: If in the local parameters, < Ask about sample number> function is enabled, then on initiating the process, the system asks for inserting the number of tested sample. The inserted sample number is linked to the process data and saved in the database. •...
Page 166 Process course: • Press < Local parameters> key to enter the setting of local parameters in density mode. • Press < Standard liquid> key to select the auxiliary liquid used for the density determination procedure. If the auxiliary liquid is other than “Water”...
Page 167: Reporting From Completed Density Determination Processes
• On carrying out the third measurement, the scale automatically determines the density of the porous body, and indicates the result on indicator’s display. If the user needs a report from the density determination process, it can be printed on a plugged printer by pressing key.
Page 168: Table Of Density Parameter For Water
32.5. Table of density parameter for water T/°C 0.99973 0.99972 0.99971 0.99970 0.99969 0.99968 0.99967 0.99966 0.99965 0.99964 0.99963 0.99962 0.99961 0.99960 0.99959 0.99958 0.99957 0.99956 0.99955 0.99954 0.99953 0.99951 0.99950 0.99949 0.99948 0.99947 0.99946 0.99944 0.99943 0.99942 0.99941 0.99939 0.99938 0.99937 0.99935 0.99934 0.99933 0.99931 0.99930 0.99929 0.99927 0.99926 0.99924 0.99923 0.99922 0.99920 0.99919 0.99917 0.99916 0.99914 0.99913 0.99911 0.99910 0.99908 0.99907 0.99905 0.99904 0.99902 0.99900 0.99899 0.99897 0.99896 0.99894 0.99892 0.99891 0.99889 0.99887 0.99885 0.99884 0.99882...
Page 169: Working Mode - Animal Weighing
33. WORKING MODE – ANIMAL WEIGHING Working mode < Animal weighing> enables weighing objects which do not stabilize if placed on scale’s weighing platform and while carrying out weighing process. Weighing process is achieved by implementing parameter of time for stability of measurement, which is set in global parameters of the working mode.
Page 170: Carrying Out Animals Weighing Procedure
Declaration of process duration in seconds (from 1s to 90s) – measurements carried out in set time Averaging time interval are used to calculate mean value, which is the result of the measurement. Operation mode, in which the scale automatically begins the following measuring process, if the load Automatic mode placed on scale’s weighing platform exceeds value...
Page 171 • Select working mode < Vehicle Scale>, the software automatically returns to the main window: Where: Select a vehicle Default transaction type Local parameters of a working mode Select an open transaction Select a product Select a customer Abort an ongoing transaction...
Page 172: Working Mode Local Settings
34.2. Working mode local settings The local settings of working mode < Vehicle Scale> are accessed by pressing an hot-key < Local settings>: Default transaction Selecting a default transaction type. Available type settings: Entrance, Exit, Control weighment. Declaring the means for selecting a vehicle. Select vehicle Available options: From list, From hand, By name, By code.
Page 173 Procedures for carrying out an entrance transaction and an exit transaction are the same, therefore the further part of the user manual contains description of an entrance transaction only. Before starting a transaction enter to scale memory general parameters of the working mode (see point 34.2 of this user manual). Procedure: •...
Page 174 Caution: 1. Additionally, an operator can: • Assign a product to a transaction by pressing button, • Assign a customer to a transaction by pressing button. 2. Before starting a transaction, first an operator should select a vehicle to be weighed. Otherwise the scale displays a message <...
Page 175 • At the same time, a printer connected to the scale prints an “Entrance ticket”. Caution: A default format of an „Entrance ticket” template is described in point 34.5 of this user manual. • After the same vehicle enters onto the weighbridge (entrance) and stabilizing of measurement result, accept the measurement by pressing ENTER/PRINT button which opens a process summary window: Caution:...
Page 176: Control Weighment Transaction
34.3.2. Control weighment transaction Changes of transaction type are carried out by pressing , where: Entrance Exit Control weighment Before starting a transaction enter to scale memory general parameters of the working mode (see point 34.2 of this user manual). Procedure: •...
Page 177 Confirm weighing 1 - A message for an operator. The scale waits for accepting the control weighment Caution: Additionally, an operator should determine: − Assign a product to a transaction by pressing button, − Assign a customer to a transaction by pressing button, •...
Page 178: Open Transactions Table
• After accepting the summary window of the “Report from Vehicle Transaction” the software automatically returns to the main window. 34.4. Open transactions table A scale user is able to start an optional number of transactions at the same time. All opened (unfinished) transactions are temporarily saved in the “table of opened transactions”.
Page 179 Default content of printout templates: Entrance Ticket Printout ---------------------------------------- Entrance ticket Template: ---------------------------------------- {40:Date:,-20}{4} {40:Vehicle:,-20}{210} {40:Mass on entrance:,-20}{7}{11} Signature......---------------------------------------- Exit Ticket Printout ---------------------------------------- Exit ticket Template: ---------------------------------------- {40: Date:,-20}{4} {40: Vehicle:,-20}{210} {40: Mass on exit:,-20}{7}{11} Signature......---------------------------------------- Control Weighment Ticket ---------------------------------------- Control weighment ticket Printout Template:...
Page 180: Executed Transactions - Reporting
34.6. Executed transactions – reporting Each completed transaction is automatically saved and stored in the database of < Reports from Vehicle Scale>. Each database record features the following data: • Vehicle registration number, • Transaction type (entrance, exit or control weighment), •...
Page 181 Where: Press to select transaction type: Acceptance, shift, release Press to enter local parameters of a working mode Press to select transaction type: Acceptance, shift, release Press to select product Press to display information on current transaction and carried out measurements Press to enter mass of product that is delivered as a pre-packaged product of known mass...
Page 182: Selecting Transaction Data
35.2. Selecting transaction data In order to record measurements, the operator has to log in, start and select Transaction> working mode. transaction type in < Procedure: • Press button, <Transaction type> window is opened, select transaction type: acceptance, shift, release. •...
Page 183: Transaction Procedure
35.3. Transaction procedure Upon data selection, press button. Message <Process in progress> with automatically given transaction number is displayed for 3 s. Transaction number format: XX / d d / M M / y y / H H / m m / s s, where: XX - type of transaction that has the following values: PZ –...
Page 184: Reports On Carried Out Transaction
Transaction aborting: • To abort the transaction, press button, the following message is displayed: <Do you want to abort transaction?>. • Press button to confirm, the transaction is automatically displayed on the list of aborted transactions. • Aborting the transaction enables postponing it until it is re-selected from the list.
Page 185: Working Mode - Sqc
{376} -------------------------------------------- The report is recorded in < Transactions Reports> database. List of data for completed transaction – see ch. 38.5.8 of this user manual. 36. WORKING MODE - SQC Statistical Quality Control assures stable production processes and easy supervision over them. SQC working mode carries out the control in accordance with declared errors which enables to reduce losses resulting from overflow.
Page 186: Procedure For Working Mode Activation
36.1. Procedure for working mode activation Procedure: • Go to the home screen and press button located in the top bar, <Working modes> submenu providing list of available working modes is displayed, • Select < SQC> mode, working mode home screen is displayed: Where: Entering control settings window.
Page 187: Local Settings Of A Working Mode
Where: Press to select product out of the database. Press to declare the number of controlled batch. Press to enter local settings of the working mode. Press to go back to the home screen. Press to start control process. 36.3. Local settings of a working mode Local settings for <...
Page 188: Product Edition For Control Process
Prompt for customer Selecting customer before control process. Asking for universal variable before control Prompt for universal variable process. Request batch quantity Asking for batch quantity before control process. Request sample quantity Asking for sample quantity before control process. Upon parameter activation, logging in is required Password required each time you enter the settings.
Page 189 List of data definable for a control: Pictogram Data name Description Name Product name Code Product code Mass Product nominal mass Product tare value (set automatically on Tare selecting a product from the database) Setting the size of controlled batch Batch size (maximum value: 999999) Remind about...
Page 190: Control Process Start
Quantity of Quantity of –T1 errors disqualifying disqualifying samples tested sample [Qn – T1] Quantity of Quantity of +T1 errors disqualifying disqualifying samples tested sample [Qn + T1] Blocking measurement Blocking of saving the measurement save with T1 [-] that contains within -T1 error Blocking measurement Blocking of saving the measurement save with T1 [+]...
Page 191: Control Process Course
Where: Abort control start Control start Caution: If before control start the operator: • Does not log in or the logged operator is not authorized to carry out the control, the scale displays a message: <Unauthorized access>, • Does not select a product from the database, the scale displays a message: <Product not chosen>, •...
Page 192 Product Name of the controlled product. Code Code of the controlled product. Nominal value of the controlled product. Average mass of the controlled product. Sum of carried out measurements. The value of standard deviation. Characteristics of sample’s negative errors T1 -15g - value of negative error T1, Max T1 - permissible quantity of negative errors T1, n T - actual quantity of negative errors T1.
Page 193 Net weight of the controlled product. Information on the control process. Workspace modification: numerical data / graph. Abort control process. Confirm measurement. • Control status During control process „Control status” parameter is active. It indicates one of three values with suitable visualization. Positive The workspace colour remains the same.
Page 194 Press button to return to an ongoing control. Press button to open list of the carried out measurements: To return to an ongoing control process, press button. • Workspace modification Upon pressing button, a workspace with graph containing measurements results is displayed:...
Page 195 Additionally, upon pressing the area with graph you can change its type (from line graph to bar graph): To disable the graph, press button once again. Upon control process completion, a summary of the process is generated. Carried out control process is automatically saved to the weighing instrument database:...
Page 196: Abort Of Control - Procedure
Press button to print the report using the connected printer. Press button to go back to < SQC> working mode settings without printing out the report. Caution: • In case of connection with < E2R System> software, control process summary does not contain question about report printout. All data is automatically sent to the computer software in order to print the report.
Page 197: Procedure Of Control Completion
Pressing key means getting back to the control in progress. Pressing key means abort of the control. Abort of control results in getting back to SQC mode setting window. A report on control will be saved to < Controls> database, report’s status - <Terminated>.
Page 198: Logging Out From A Control Process In Progress
36.9. Logging out from a control process in progress Procedure: • While in control mode press pictogram with name of the logged operator located in the bottom bar of the display, • The operator is automatically logged out and simultaneously a window <Insert Password>...
Page 199: Simultaneous Carrying Out Two Control Processes
Where: - information for an operator on a possibility Restart control to resume a control process in progress - Control resuming button • Pressing the button causes displaying a Logging in window <Insert Password> with the name of previously logged operator. •...
Page 200: Report From Product Testing
Caution: With a multiplatform scale, an operator using the parameter < Platform> ma has the option of assigning platform number to the current control. After entering required data on a control and starting the control process, the scale also displays data identifying the number of the enabled control: Caution: Processes: Control carrying out, logging out during control in progress and control termination are the same as in case of the above parts of this manual.
Page 201 Batch size: 5000 Number of measurements: 15 [-T1] errors quantity: 1 [-T2] errors quantity: 0 [+T1] errors quantity: 0 [+T2] errors quantity: 0 Min: 477g Max: 513g Average: 501.87g Total: 7528g Standard deviation: 9.156314500829 Result: Positive Measurements: 1. 490 g 2.
Page 202: Databases
{40:[-T2] errors quantity:,-20}{270} {40:[+T1] errors quantity:,-20}{282} {40:[+T2] errors quantity:,-20}{284} {40:Min:,-20}{272}{278} {40:Max:,-20}{273}{278} {40:Average:,-20}{274}{278} {40:Total:,-20}{271}{278} {40:Standard deviation:,-20}{276} {40:Result:,-1}{263} {40:Measurements:,-20} {277} ........---------------------------------------- {143:0c} 37. DATABASES Scale databases hold different data: Products Operators Customers Dosing processes Formulations Vehicles Identification processes Time Schedule PGC Packages Warehouses Labels...
Page 203: Database Configuration
In order to enter < Databases>, press and choose < Databases>. 37.1. Database configuration < Databases configuration> submenu enables the user to: • Set databases availability • Categorize product • Declare data operation for databases: product, operators, customers, extra variables •...
Page 204: Database Variables Operation
To operate product categories < Product categories> parameter needs to be activated. The parameter is located in „ Databases configuration categories” submenu. How to create databases categories – procedure: • Enter „ Databases configuration/ Categories / Database of categories”, • Press button to see <Create new record?>...
Page 205: Change Name Of An Extra Variables Database
Where: - Accessible variable - Inaccessible variable • Set accessibility of a demanded variable and exit in order to start weighment. 37.1.4. Change name of an extra variables database The user can change a name of an extra variables chart (table) in the following cases: •...
Page 206: Databases Export / Import
37.1.6. Databases export / import The user can export/import all databases with the use of a memory stick. Database export procedure: • Put a memory stick into USB port of a scale, • Enter: „ Database configuration / Export” submenu to start automatic database export from scales to a memory stick.
Page 207: Quick Code Search
• Inscribe the name of a product or its part and press • The program will automatically edit the required product. 37.2.2. Quick code search Procedure: • Enter < Databases> according to ch. 37 of this manual, • Enter < Products>, •...
Page 208: Printing Items From Databases
• Enter < Products>, • Give a long press to the item, then the context menu is displayed, • Press <Delete>, then a message is displayed: <Are you sure you want to delete?>, • Confirm it by pressing Caution: Deleting records in databases is possible only by logged-in administrators. 37.5.
Page 209 Where: Open Opening a content of a folder Import Import of a database from a memory stick to a scale Export Export of a database to a memory stick Delete all Deleting all records of a particular database Rename Renaming the database Cancel Cancelling (turning off) the context menu The following list of functions will be displayed after activation of a context...
Page 210: Database Edit Window
37.7. Database edit window The database edition can be performed by an administrator. 37.7.1. Operators’ database Procedure: • Enter < Databases> according to ch. 37 of this manual, • Enter < Operators> and press the required position. Record of operator: Name Operator name Code...
Page 211 Product record: Name Product name Code Product code EAN code Product barcode Mass Nominal product mass Weight Loss Weight loss in [%] Mass of an ingredient for bulk dosing Mass for fast dosing (in case of two-step dosing process) Batching outputs Declaring numbers of outputs for fine dosing Bulk batching output Declaring numbers of outputs for bulk dosing...
Page 212 Tare value (it is pre-set automatically after Tare selecting a product) Price Unit price Currency Currency assigned to a product price Submenu with data declared in the working PGC mode mode PGC Submenu with data declared in the working SQC mode mode SQC Number of validity Number of days to calculate expiry date...
Page 213: Database Of Customers
37.7.3. Database of customers Procedure: • Enter < Databases> according to ch. 37 of this manual, • Enter < Customer> and press the required position. Customer records: Name Customer’s name Code Customer’s code Tax ID Customer’s tax ID Address Customer’s address Postal code Customer’s postal code City...
Page 214: Database Of Formulations
Platform 2 * Weighing platform no. 2 determined for a specific indicator Platform 3 * Weighing platform no. 3 determined for a specific indicator Platform 4 * Weighing platform no. 4 determined for a specific indicator *) – number of weighing platforms depends on determined data in the indicator settings 37.7.5.
Page 215: Database Of Pgc Schedules
37.7.6. Database of PGC schedules Procedure: • Enter < Databases> according to ch. 37 of this manual, • Enter < Time Schedules PGC> and press the required position. List of data for selected PGC schedule: Product Assigning product to PGC schedule Batch size Specifying controlled batch quantity for PGC schedule Date...
Page 216: Database Of Identification Processes
Description Additional vehicle description *) – When declaring means of selecting a vehicle “From hand”, entering a new registration number causes automatic adding a new vehicle record to the database with a name corresponding to the registration number. 37.7.8. Database of identification processes Procedure: •...
Page 217: Database Of Warehouses
Package record: Name Package name Code Package code Package weight (set automatically after choosing Mass after choosing a package from the database) 37.7.10. Database of warehouses Procedure: • Enter < Databases> according to ch. 37 of this manual, • Enter < Warehouses>...
Page 218: Database Of Universal Variables
Label record: Name Label name Code Label code Label template* Label printout template Printer 1 Printer 1 printout declaration (default setting) Printer 2 Printer 2 printout declaration Printer 3 Printer 3 printout declaration Ways of designing and sending templates to a scale can be found in APPENDIX 03 of this manual.
Page 219: Extra Variables Database
Universal variable record: Code Universal variable code Universal variable name, used for printout and/or for Name a weighment record Universal variable value used for printout and/or for Value a weighment record 37.7.13. Extra variables database The database includes templates of extra variables which user can attribute to screen function buttons in order to enter any alphanumeric text intended to be printed.
Page 220: User's Translations Database
Choose the demanded graphic file. The program will automatically return to the previous submenu. The chosen graphic and name will be displayed in a < Image> field Caution: Maintained file formats are *.jpg, *.jpeg, *.png, with the optimal (max.) resolution of 150x150 pixels, where: •...
Page 221: Reports Configuration
Transactions Reports Density reports Differential weighments reports To enter < Reports> menu press button, which is located in the window of the indicator, and choose < Reports> option. 38.1. Reports configuration Submenu < Report configuration> allows for: • declaration of reports, which are to be accessible for the user, •...
Page 222: Configuration Of A Lot Number
38.1.2. Configuration of a lot number Procedure: • Enter submenu: „ Reports / Reports configuration” according to ch. 38 of this manual, • Select < Lot number> and carry out the configuration. List of data definable for a lot number: Name Change of the lot number name Lot number template, allows using variables that are...
Page 223 In order to specify number of weighings that are to be subjected to deletion process it is necessary to activate option: < Ask for number of weighings to be deleted>. Procedure: • Enter submenu: „ Reports / Reports configuration” according to ch. 38 of this manual, •...
Page 224: Deleting Older Data
38.2. Deleting older data A user after Logging on as administrator can delete older position in the database of weinghings < Weighing / Alibi>. Procedure: • Enter the submenu < Reports> according to ch. 38 of this manual, • Enter < Delete older data>, then an editing field is displayed <Give year>...
Page 225: Reports From Weighment Records
38.4. Reports from weighment records Submenu < Reports from weighing records> allows for: • preview of data for particular weighments, • data filtering, • printout of a weighments report, • preview and a printout of weighments diagram, • export of weighments database to file, •...
Page 226: Report Printout
Procedure: • Enter submenu: „ Reports / Reports From weighing records / Filtering” according to ch. 38 of this manual, • Enter a particular filter position and activate <Filtering> option. Where: - Active filtering - Inactive filtering 38.4.2. Report printout The user can print a report after executed weighing series.
Page 227: Weighments Chart
Caution: • Submenu: „ Devices / Printer / Printout / Report From Weighments Printout Template” allows for free modification of a report template (see point 16.2.3 of this manual); • If there is too much information printed (too many weighments) the program displays the following message <Process in progress>.
Page 228: Export A Database To A File
Display the previous window Print the diagram, use a PCL type printer Save the diagram as a *.bmp file, save it to a memory stick connected to USB port 38.4.4. Export a database to a file An operator after a series of weighments can export a database to a file using a pen drive.
Page 229 Package Source warehouse Target warehouse Checkweighing Platform number Statistics: Number of measurements Weighing counter Trade settlement Vehicle Universal variable Extra variable Custom variable: Value Custom variable: Name Min 2 Max 2 *) – Automatic selection of data to be exported (unfilled fields are omitted) •...
Page 230: Counter Of Weighments Records
Caution: In case a pen drive is not recognized after entering < Export database of weighments to a file> a message is displayed: <Operation failed>. • After the operation has been completed: „Operation finished successfully” is displayed together with the file name (with extention *.txt) created on the pendrive, Caution: The file name consists of a database name and scale factory number,...
Page 231: Reports Preview
• Insert desired value and accept it by pressing key. 38.5. Reports preview 38.5.1. Weighments / Alibi Procedure: • Enter < Reports> according to ch. 38 of this manual, • Enter < Weighments / Alibi> and press the required position. Weighment record: Date Weighment date...
Page 232 Minimum weighing result threshold (result control) Maximum weighing result threshold (result control) Extra minimum weighing result threshold Min 2 (alert) Extra maximum weighing result threshold Max 2 (alert) Platform number Platform number to perform weighments Statistics: Number Statistics: Current number of measurements of measurements Weighing counter Global counter of weighment records...
Page 233: Reports From Dosing
38.5.2. Reports from dosing Procedure: • Enter < Reports> according to ch. 38 of this manual, • Enter < Reports from dosing> and press the required position. List of data for a selected report from dosing: Status Status of correctness for a completed dosing process Start date Start date of dosing process End date...
Page 234: Density Reports
End date End date of formula making process Formulation Name of completed formulation Operator Operator preparing a formulation Customer Customer for which the formulation is prepared Number of Number of measurements within a completed Measurements formulation making process 38.5.4. Density reports Procedure: •...
Page 235: Controls Reports
Temperature of the density determination Temperature process Value of sinker’s volume immersed in tested Sinker volume liquid Weighing 1 Mass value of the 1 measurement Weighing 2 Mass value of the 2 measurement Weighing 3 Mass value of the 3 measurement Value of pycnometer’s mass utilized during Pycnometer mass density determination process...
Page 236: Average Tare Reports
Procedure: • Enter submenu < Reports> according to ch. 38 of this manual, • Enter database < Controls Reports> and choose a required one. Inventory of fields in every control: Batch number Batch number of tested goods Status Control Status/Result Start Date Control beginning date End Date...
Page 237 Report number pattern: X / y y / M M / d d / H H / m m / s s / T, where: X - Test mode: U – regulation compliant test, Z – test terminated by an operator, yy –...
Page 238: Report From Vehicle Scale
38.5.7. Report from vehicle scale Procedure: • Enter submenu < Reports> according to ch. 38 of this manual, • Enter database < Vehicle Scale Reports> and choose a required one. List of data for an individual report from vehicle scale: Vehicle Vehicle registration number Transaction status.
Page 239 Transaction number format: where: XX - type of transaction that has the following values: PZ – acceptance, MM – shift, WZ – release, yy - year of transaction start, MM - month of transaction start, dd - day of transaction start, HH - hour of transaction start, mm - minute of transaction start, ss - second of transaction start.
Page 240: Differential Weighments Reports
Number of measurements Quantity of carried out measurements Preview of all weighing records in carried out Weighing records transaction 38.5.9. Differential weighments reports Procedure: • Enter submenu < Reports> according to ch. 38 of this manual, • Go to submenu < Differential weighments reports>...
Page 241: Identification Processes
39. IDENTIFICATION PROCESSES The user can create his own scales operation algorithm and at the same time adjust the device to his needs (production department specific, production line, etc…). This allows the user to register detailed weighment report with unique data being stored during the process.
Page 242: List Of Identification Process Functions
• To set the process operation algorithm press < Add> and choose one of the available functions of the process (see point 39.2 to view the chart). Each of the functions is added one by one. Caution: It is possible to modify an already existing process. To add an element to the existing process press and hold for about 2 seconds the element before which the function is to be added.
Page 243 Set position taken Function sets a demanded record taken from a particular database. form database Declaration of a database for setting a record: product, customer, packaging, source warehouse, Databases target warehouse, lot number, batch number, extra variable, universal variable Selection of a demanded position out of product Product chart (default database).
Page 244 Type of defined threshold mass (net or gross) for Mass displaying information window Declaring the platform number to which the value Platform of <Threshold> parameter applies Function inducing a new custom variable. Add custom variable This variable is automatically saved in a report (weighments database) upon the end of a process.
Page 245: Identification Process - Activation Procedure
Conditional function specifying when to do the next step depending on the mass loaded on the Weight condition weighing platform, e.g.: next stage is carried out if the mass (net or gross) on the platform is lower than threshold mass. Mass Type of defined threshold mass (net or gross) Weight condition...
Page 246: Activation By Operator Logging
• Go back to the main window, • Press programmable button and select an appropriate identification process to activate it. 39.3.2. Activation by operator logging User may assign an identification process to an operator. It results in automatic start of a process right after the logging procedure has been carried out. Procedure: •...
Page 247: Example Of Process Forming And Its Realization
39.3.4. Example of process forming and its realization Description: User must get through the following balance operation algorithm: 1. Carry out the operator logging process with the use of a transponder card, 2. Give a shift number, 3. Zero scales, 4.
Page 248 Displays chart of extra variable from Database: extra variable; assign 6. Select item from position 1 to 20. Naming chart: to extra variable: 2; start database “Country of origin” – see point 37.1.4 position: 1; end position: 20 of this manual Database: Customer;...
Page 249 In order to break identification process one must: • Press button of the main window of a process to see a message: Press button to confirm and wait for the following window: Press < Abort> button. • Press button of an edit window or information window, press button of database data chart to see the following window: Press <...
Page 250: Communication Protocol
40. COMMUNICATION PROTOCOL 40.1. General information A. Scales-indicator serial communication protocol serves for communication between RADWAG scales and peripheral device, it uses RS-232C and Ethernet interface; B. It consists of commands sent from an external device to the scale and a responses from a scale.
Page 251: List Of Rs Commands
40.2. List of RS commands Commands Description of commands Zeroing Tarring Get tare value Set tare value Send the stable result in basic unit Send the result immediately in basic unit Send immediate results from all platforms in basic units Send the stable result in current unit Send the result immediately in current unit Switch on continuous transmission in basic unit...
Page 252: Respond Message Format
40.3. Respond message format After sending a request message you can receive: XX_A CR LF command accepted and in progress XX_D CR LF command completed (appears only after XX_A) XX_I CR LF command comprehended but cannot be executed XX _ ^ CR LF command comprehended but time overflow error appeared XX _ v CR LF command comprehended but the indication below the...
Page 253: Tarring
40.4.2. Tarring Syntax: T CR LF Possible answers: T_A CR LF - command accepted and in progress T_D CR LF - command completed T_A CR LF - command accepted and in progress T_v CR LF - command comprehended but tare range overflow appeared T_A CR LF - command accepted and in progress T_E CR LF...
Page 254: Send The Stable Result In Basic Unit
Caution: Use dots as decimal points in tare values. 40.4.5. Send the stable result in basic unit Syntax: S CR LF Possible answers: S_A CR LF - command accepted and in progress S_E CR LF - time limit for stable result exceeded S_I CR LF - command comprehended but cannot be executed S_A CR LF...
Page 255: Send Immediate Results From All Platforms In Basic Units
Example: S I CR LF – computer command S I _ ? _ _ _ _ _ _ _ 1 8 . 5 _ k g _ CR LF - command done, mass value in basic unit is returned immediately. 40.4.7.
Page 256: Send The Result Immediately In Current Unit
SU_A CR LF - command accepted and in progress SU_E CR LF - timeout while waiting for stable results SU_I CR LF - command comprehended but cannot be executed SU_A CR LF - command accepted and in progress MASS FRAME - mass value in current unit is returned Frame format: 7-15...
Page 257: Switch On Continuous Transmission In Basic Unit
40.4.10. Switch on continuous transmission in basic unit Syntax: C1 CR LF Possible answers: C1_I CR LF - command comprehended but cannot be executed C1_A CR LF - command comprehended and in progress MASS FRAME - mass value in basic unit is returned Frame format: 7-15 space...
Page 258: Switch Off Continuous Transmission In Current Unit
40.4.13. Switch off continuous transmission in current unit Syntax: CU0 CR LF Possible answers: CU0_I CR LF - command comprehended but cannot be executed CU0_A CR LF - command comprehended and executed 40.4.14. Set lower threshold Syntax: DH_XXXXX CR LF, where: XXXXX – mass format Possible answers: DH_OK CR LF - command executed...
Page 259: Read Upper Threshold
40.4.17. Read upper threshold Syntax: OUH CR LF Possible answers: UH_MASA CR LF - command executed Frame format: 4-12 space mass space unit space Mass - 9 characters justified to the right Unit - 3 characters justified to the left 40.4.18.
Page 260: Give Balance Serial Number
40.4.20. Give balance serial number Syntax: NB CR LF Possible answers: NB_A_”x” CR LF - command understood, returns serial number NB_I CR LF - command understood but not accessible at this moment x – serial number of the device (inserted in between inverted commas) Example: NB CR LF –...
Page 261: Activate Sound Signal
40.4.23. Activate sound signal Syntax: BP_TIME CR LF Where: _ - space, TIME – parameter, decimal specifying how long shall the sound last, parameter given in [ms]. Recommended range <50 - 5000>. Possible answers: BP_OK CR LF - command carried out, BEEP sound signal activated BP_I CR LF - command understood but not accessible at this moment ES CR LF...
Page 262: Set Working Mode
Working modes list: 1 – Weighing 2 – Parts Counting 3 – Deviations 4 – Dosing 5 – Recipes 6 –Weighing Animals 7 – Density 17 - Control of packaged goods PGC 20 - Comparator 21 – Vehicle scale Caution: Working modes numbering is identical for each kind of balance.
Page 263: Give Current Working Mode
Example: OMS_2 CR LF - set working mode “Parts counting” OMS_OK CR LF - working mode “Parts counting” 40.4.26. Give current working mode Syntax: OMG CR LF Possible answers: OMG_n_Mode name CR LF - command carried out, current working mode given OMG_I CR LF - command understood but not accessible at this moment...
Page 264: Manual Printouts / Automatic Printouts
_ _ _ _ _ _ 1 8 3 2 . 0 _ g _ _ CR LF – the printout generated from the scale after pressing 41. MODBUS RTU COMMUNICATION PROTOCOL The indicator PUE 7.1 enables complete operation of programmable controllers (PLC), which communicate through Modbus protocol class 0. The indicator in a network using modbus standard operates as slave on an accessible interfaces, RS232 or Ethernet.
Page 265 • Write multiple registers (fc 16), for cyclic record of the weighing module statuses. The superordinate unit (master): • Cyclically reads inputs signals from the indicator PUE 7.1, • Cyclically saves outputs status to the indicator PUE 7.1. Functions of Modbus communication with the indicator PUE 7.1: •...
Page 266: Memory Map
41.1. Memory map 41.1.1. Output address Address Offset LO 1 LO 1 LO 1 LO 2 LO 2 LO 2 LO 2 LO 3 LO 3 LO 3 LO 3 LO 4 LO 4 LO 4 LO 4 Where: - Mass for a platform, 4 bytes, float - Tare for a platform, 4 bytes, float - Current measuring unit of a platform, 2 bytes, word - Platform status, 2 bytes, word...
Page 267: Input Address
41.1.2. Input address Address Offset Where: - command, 2 bytes, word - command with a parameter, 2 bytes, word - Actual platform , 2 bytes, word - Tare for a platform, 4 bytes, float - Lo threshold of a platform, 4 bytes, float - Outputs status, 2 bytes, word - MIN threshold, 4 bytes, float - MAX threshold, 4 bytes, float...
Page 268 List of output variable: Name of output variable Address Length [word] Data type Mass platform 1 float Tare platform1 float Unit platform 1 word Status platform 1 word Lo platform 1 float Mass platform 2 float Tare platform 2 float Unit platform 2 word Status platform 2...
Page 269 • mass – mass value in current unit is returned, • tare – tare value in calibration/adjustment unit is returned, • unit – determines current (displayed) measuring unit: Byte no. Unit gram kilogram carat pound ounce Newton For instance: Byte no Value Scale use kilogram [kg].
Page 270 The scale does not report an error, the measurement is stable in the second measuring range. • LO – the value of LO threshold in calibration/adjustment unit is returned. • Process status – determines the status of dosing process byte no. Decimal value of process status a variable (Dec)
Page 271: Input Variables
• Formulation – response is the value of a code of a selected formulation (numeric range 0 - 32767). 41.2.2. Input variables Saving the input variables into the indicator PUE 7.1 enables controlling module’s operation. Caution: All input values are set in reaction to calibration/adjustment unit.
Page 272 • command – basic command. Setting of an appropriate command’s byte is directly responsible for carrying out a task, in accordance with below table: command task bytes scale zeroing scale tarring dosing process start dosing process stop (emergency stop) For instance: 0000 0000 0010 0000 –...
Page 273 • LO – complex command parameter – LO threshold value (in calibration / adjustment unit). • outputs status – complex command parameter determining outputs status of a indicator PUE 7.1 series. Output status byte no. Out3 Out2 Out1 • MIN - complex command parameter – MIN threshold value (in calibration / adjustment unit).
Page 274: Cooperation With Peripheral Devices
0000 0000 0000 0000 tarring 0000 0000 0000 0010 42. COOPERATION WITH PERIPHERAL DEVICES Weighing indicators PUE 7.1 can cooperate with the following devices: • Computer, • Receipt printer, • Label printer, • Additional display, • Barcode scanner, • Any peripheral device with the compatible ASCII protocol.
Page 275: Diagrams Of Connection Cables
43. DIAGRAMS OF CONNECTION CABLES Scale – computer cable Scale – printer (CITIZEN, EPSON) cable Scale – Kafka printer cable...
Page 276 Scale – ZEBRA printer cable Scale – I/O cable Caution: Cable „scale – Ethernet” is a standard network cable with RJ45 connectors on both sides.
Page 277: Technical Parameters
44. TECHNICAL PARAMETERS PUE 7.1 PUE 7.1P Housing plastic panel – stainless steel Installation within IP rating IP43 board – IP66/67, whole unit – IP32 Display TFT 640x480 5,7” with touch screen Power supply 10 – 28VDC/21W Operating temperature -10°C ÷ 40°C...
Page 278: Error Messages
Inputs parameters Outputs quantity Outputs type Optoinsulated Voltage range 5 -24V ±10% Minimum current 45. ERROR MESSAGES...
Page 279: Additional Equipment
46. ADDITIONAL EQUIPMENT Accessories: • KAFKA printer cable - P0136, • Computer cable - P0108, • EPSON printer cable - P0151, • Thermal printer - KAFKA, • Dot matrix printer - EPSON, • Label printer - CITIZEN, • Additional display in plastic casing - WD- 4/1, •...
Page 280 Description Symbol Standard printout in adjustment unit Standard printout in current unit Date Time Date & Time Mathematical function Net mass in current unit Net mass in adjustment unit Gross mass Tare {10} Current unit {11} Adjustment unit {12} Minimum threshold {13} Maximum threshold {14}...
Page 281 {38} CC Statistics: Standard deviation {39} Universal variable: Value {40} Text information {41} Batch number: Value {42} Statistics: Weighing counter {43} Platform mass {44} Balance type {45} Parts counting: Sample size {46} CC Statistics: Number of measurements {47} Statistics: Gross sum {48} CC Statistics: Gross sum {49}...
Page 282 {77} Operator: Access level {80} Package: Name {81} Package: Code {82} Package: Mass {85} Customer: Name {86} Customer: Code {87} Customer: Tax ID {88} Customer: Address {89} Customer: Postal code {90} Customer: City {91} Customer: Discount {100} Report From weighments: Measurements {101} Filter of weighments report: Start date {102}...
Page 283 {135} Target warehouse: Name {136} Target warehouse: Code {137} Target warehouse: Description {140} Net mass in adjustment unit: Total {141} Additional display: WD {142} Additional display: WWG {143} {144} Hex UTF8 {145} Partial mass {146} Gross mass in current unit {147} Tare in current unit {148}...
Page 284 {182} Dosing report: Result {183} Dosing report: Number of measurements {184} Dosing report: Total {185} Dosing report: Measurements {186} Measurements: Nominal mass {187} Measurements: Difference {205} Adjustment track record: Nominal Mass {206} Adjustment track record: Platform number {207} Adjustment track record: Unit {208} Vehicle scale: Name {209}...
Page 285 {236} Formulation: High deviation {237} Formulation: Ingredient code {238} Formulation: Current weighing number {240} Formulation report: Start Date {241} Formulation report: End Date {242} Formulation report: Result {243} Formulation report: Number of measurements {244} Formulation report: Total {245} Formulation report: Measurements {246} Measurements: Nominal mass {247}...
Page 286 {282} Control Reports: Number of T1 errors [ + ] {283} Control Reports: Permissible number of T1 errors [ + ] {284} Control Reports: Number of 2T1 errors [ + ] {285} Control Reports: Permissible number of 2T1 errors {286} Control Reports: Permissible number of 2T1 errors [ + ] {287} Control Reports: Navigating bar...
Page 287 {355} Day-of-year {356} Number of packages {357} Mass to be dosed {358} Smart Connect {359} Working mode {360} Printer: Allergens start [pl] {361} Printer: Non allergens start [pl] {362} Printer: Allergens end {363} Printer: Allergens start [de] {365} Printer: Non allergens start [de] {366} Printer: Allergens start [es] {367}...
Page 288: Formatting Variables
47.2. Formatting variables Users can format numeric, text and date variables intended for displaying or printing out. Different format commands: • Justification to the left, • Justification to the right, • Setting the number of characters for printout / display, •...
Page 289 Date separator between days, {2:yy/MM/dd} – Present date formatted as: months and years year - month - day, where yy represents two less significant digits of year. „Escape” character removing {2:yy\/MM\/dd} – Present date formatted as formatting function form next yesr / month / day;...
Page 290: Mathematical Function
47.3. Mathematical function Extended functionality of the mathematical functions with use of a variable <{5} Mathematical function> enables carrying out an optional operation on numbers and variables available on the list. The basic available mathematical functions are: • Adding (+) •...
Page 291 Caution: A numeric value is comprehended as an optional number or an optional mathematical operation that returns a numeric value. There are additional functions that modify the text values, and they can also operate on numbers that are converted to text: •...
Page 292: Appendix 02 - Functions Of Programmable Buttons
48. APPENDIX 02 – Functions of programmable buttons Icon Function name ENTER Zero Tare Enter tare Disable tare Restore tare Parameters Local Parameters Set MIN and MAX Statistics (cumulative) : Print and zero Statistics (cumulative) : Print Statistics (cumulative) : zero Statistics (cumulative of cumulative): Print and zero Statistics (cumulative of cumulative): Print Statistics (cumulative of cumulative): zero...
Page 293 Statistics: Delete Edit lot number Edit batch number Start Stop Choose an operator Choose an operator by name Choose an operator by code Choose a product Choose a product by name Choose a product by code Choose a package Choose a package by name Choose a package by code Choose a customer Choose a customer by name...
Page 294 Choose a source warehouse Choose a source warehouse by name Choose a source warehouse by code Choose a target warehouse Choose a target warehouse by name Choose a target warehouse by code Change working mode Counting pieces: Specify piece mass Counting pieces: Estimate piece mass Counting pieces: Ascribe standard Counting pieces: Quantity of sample - 5 pcs...
Page 295 Emergency stop Change unit Change platform Edit universal variable 1 Edit universal variable 2 Edit universal variable 3 Select dosing process Select dosing process by name Select dosing process by code Select formulation Select formulation by name Select formulation by code Ingredients Determine liquid density Determine solid density...
Page 296 Edit number of labels Edit number of C labels Edit number of CC labels Control – Change: Workspace / chart Control: Set control Control: Return to home screen Control: Average tare start Control: Data on control in progress Control: Edit note Control: Finish control Choose a vehicle Choose a vehicle by name...
Page 297 Choose traceability process Choose traceability process by name Choose traceability process by code Print Screen Select platform 1 Select platform 2 Select platform 3 Select platform 4 Choose an extra variable no 1 Choose an extra variable no 2 Choose an extra variable no 3 Choose an extra variable no 4 Choose an extra variable no 5 Zero platform 1...
Page 298 Tare platform 1 Tare platform 2 Tare platform 3 Tare platform 4 Give mass Undo weighing Increase accuracy Select record from the database Select weighing mode Select transactions mode Transaction settings Start transaction Finish transaction Abort transaction Information on transaction Set date and time Interactive...
Page 299: Appendix 03 - Label Template
49. APPENDIX 03 – Label template A label template can be created in 2 ways: • From the indicator level using variables, • Using PC software EDYTOR ETYKIET R02. A created project needs to be saved as an „lb” file then copied on a pen drive that can be connected to the indicator.
Page 300: Designing A Label On A Computer
Let us create a label template for the label below: Caution: The installer of EDYTOR ETYKIET R02 is accessible to download on website: www.radwag.com. on the overlap: Products / Measuring indicators / PUE 7.1. Procedure: 1. Run computer program LABEL EDITOR R02, then the main window...
Page 301 Caution: Prior to designing a label a new project needs to be created with initial printer and label settings. A description of creating new projects can be found in instruction manual „Label Editor R02” accessible in the program menu: „Info / User manual”. 2.
Page 302 5. From list <Variable> chose variable type „4 Date and time” and press , then the variable is placed in the table of variables show below. 6. Confirm it by pressing , then the variable is automatically placed on the label. 7.
Page 303 11. Chose <Barcode> from the list e.g. EAN-13. 12. Chose from list <Variable> item „7 Net mass in adjustment unit” and press , then the variable is placed in the table of variables show below. 13. In column <Formatter> type:V6.3 (mass in EAN13 as a 6-digit code with 3 decimal places).
Page 304: Saving Label Templates In The Scale
49.3. Saving label templates in the scale Procedure: • A label template *.lb created in EDYTOR ETYKIET R02 needs to be copied to a pen drive, • Connect the pen drive to USB in the scale, • Enter: „ Databases / Labels”...
Page 305: Attributing A Label To A Customer
49.5. Attributing a label to a customer Procedure: • Enter < Databases> according to ch. 37 of this manual, • Enter < Customers> and press the required item, • Enter < Label>, then the database of labels is open with the list of all labels, •...
Page 306: Appendix 05 - Zebra Printer Setting
52. APPENDIX 06 - Communication with barcode scanners 1. For communication with barcode scanners RADWAG scales use RS232 interfaces and simplex transmission (one direction) without handshaking. Only two wires are required for assuring such a transmission. Used scanners should be equipped in such interface with disabled both hardware and software handshaking.
Page 307: Appendix 07 - Computer Program „Pgc Viewer
5. A special protocol is required in order the code be received by RADWAG equipment. It is required to program an appropriate prefix and suffix. Prefix –...
Page 308 Operation description: • Run computer program „PGC Viewer”. It starts with opening the following window: Button functions: Open a controls or average tares database Print a report View a report Scroll the list of reports one position down Scroll the list of reports one position up Go to the last report Go to the first report •...
Page 309: Appendix 08 - Cooperation With Hrp Weighing Platform
• Print the marked report on a connected printer by pressing • Using button view the selected report. 54. APPENDIX 08 – Cooperation with HRP Weighing Platform For detailed information on HRP weighing platform refer to „HRP Weighing Platform” user manual. Cooperation of PUE HY10 indicator with HRP weighing platform is carried out via RS232 or Ethernet interfaces using appropriate cables that come standard with the equipment.
Page 310: Lo Threshold For Automatic Functions
Autozero Enter this parameter to enable automatic control and correction of zero indication. There are, however, some cases when this function can be a disturbing factor for the measuring process. e.g. very slow placing of a load on the weighing pan (load adding, e.g. pouring, filling).
Page 311 Where: Information about the remaining time to start the Start in 26 s process. Unload the Request to unload the weighing platform. platform Delay the adjustment by approx. 3 minutes. Adjustment can be delayed repeatedly, but you have to remember that too many delays cause larger errors during weighing.
Page 312: Internal Adjustment
Caution: With enabled < Automatic adjustment> parameter it is important to periodically carry out manual internal adjustment. 54.4. Internal adjustment Internal adjustment is carried out by means of internal adjustment weight. Procedure: • Enter < Weighing / Internal adjustment> submenu, the following message is displayed: •...
Page 313: Automatic Adjustment Time-Triggered
54.5. Automatic adjustment time-triggered The function enables carrying out automatic adjustment each day at a specific day and time. You can declare up to 5 values (hours) per day (e.g. 03.00, 8.00, 13.00, 18.00, 23.00). Procedure: • Enter< Weighing / Automatic adjustment time-triggered>...

RADWAG PUE 7.1 User Manual

1 Intended Use

2 Precautionary Measures

3 Warranty Conditions

4 Unpacking and Mounting

5 Weighing Indicator Structure

6 Getting Started

7 Keypad Overlay

8 Functions of Keys

9 Program Structure

10 Indicating Window

11 Logging in

12 Navigating Within the Menu

13 Weighing

14 Scale Parameters

15 Communication

16 Devices

17 Display

18 Inputs / Outputs

19 Authorization

20 Units

21 Other Parameters

22 User Adjustment

23 Software Update

24 Remote Desktop

25 Special Functions of Working Modes

26 Working Mode - Weighing

27 Working Mode - Parts Counting

28 Working Mode - Percent Setup (Deviations)

29 Working Mode - Dosing

30 Working Mode - Formulation

31 Working Mode - Pgc (Prepackaged Goods Control)

32 Working Mode - Density

33 Working Mode - Animal Weighing

34 Working Mode - Vehicle Scale

35 Working Mode - Transactions

36 Working Mode - Sqc

37 Databases

38 Reports

Quick Links

Need help?

Questions and answers

Related Manuals for RADWAG PUE 7.1

Summary of Contents for RADWAG PUE 7.1
