Introduction
Description

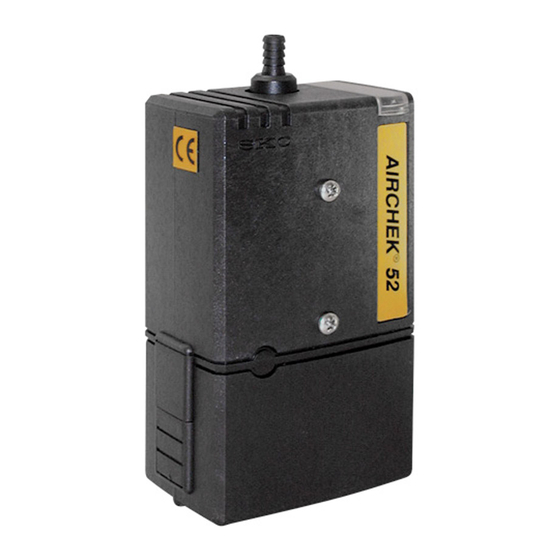

The AirChek 52 Sample Pump (Figure 1) is designed for rugged industrial use at flows from 5 to 3000 ml/min. Ideal for on-worker
applications, use the AirChek 52 for short-term or full-shift sampling with sorbent tubes, impingers, cyclones, PPIs, or filter cassettes.
Checking Pump/Kit Contents
Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact
SKC at 800-752-8472 (U.S. only) or 724-941-9701.
If You Ordered Cat. No.
Your Package Should Contain
224-52
AirChek 52 Sample Pump with NiMH battery pack and screwdriver set
AirChek 52 Sample Pump with NiMH battery pack and screwdriver set, single PowerFlex charger with cable,
224-52-S
Tygon tubing (3 feet, 1/4-inch ID), and collar clip with cable tie
AirChek 52 Sample Pump with NiMH battery pack and screwdriver set, single PowerFlex charger with cable,
224-52K
filter cassette holder, Tygon tubing (3 feet, 1/4-inch ID), and soft-sided nylon carry case
Required Equipment
1/4-inch ID tubing
®
PowerFlex
Charger
Low flow accessories if sampling at 5 to 500 ml/min. See Accessories.
863 Valley View Road, Eighty Four, PA 15330 USA • Tel: 724-941-9701 • www.skcinc.com
Pump inlet
(inlet filter underneath)
Protective control
Top view
On/off button
Figure 1. AirChek 52 Sample Pump
www.skcinc.com
AirChek
52 Sample Pump
®
Operating Instructions
Belt clip
cover (raised)
LCD
Flow
adjustment
screw
Back view
Charging jack
Cat. No. 224-52
Form 37714 Rev 2002
