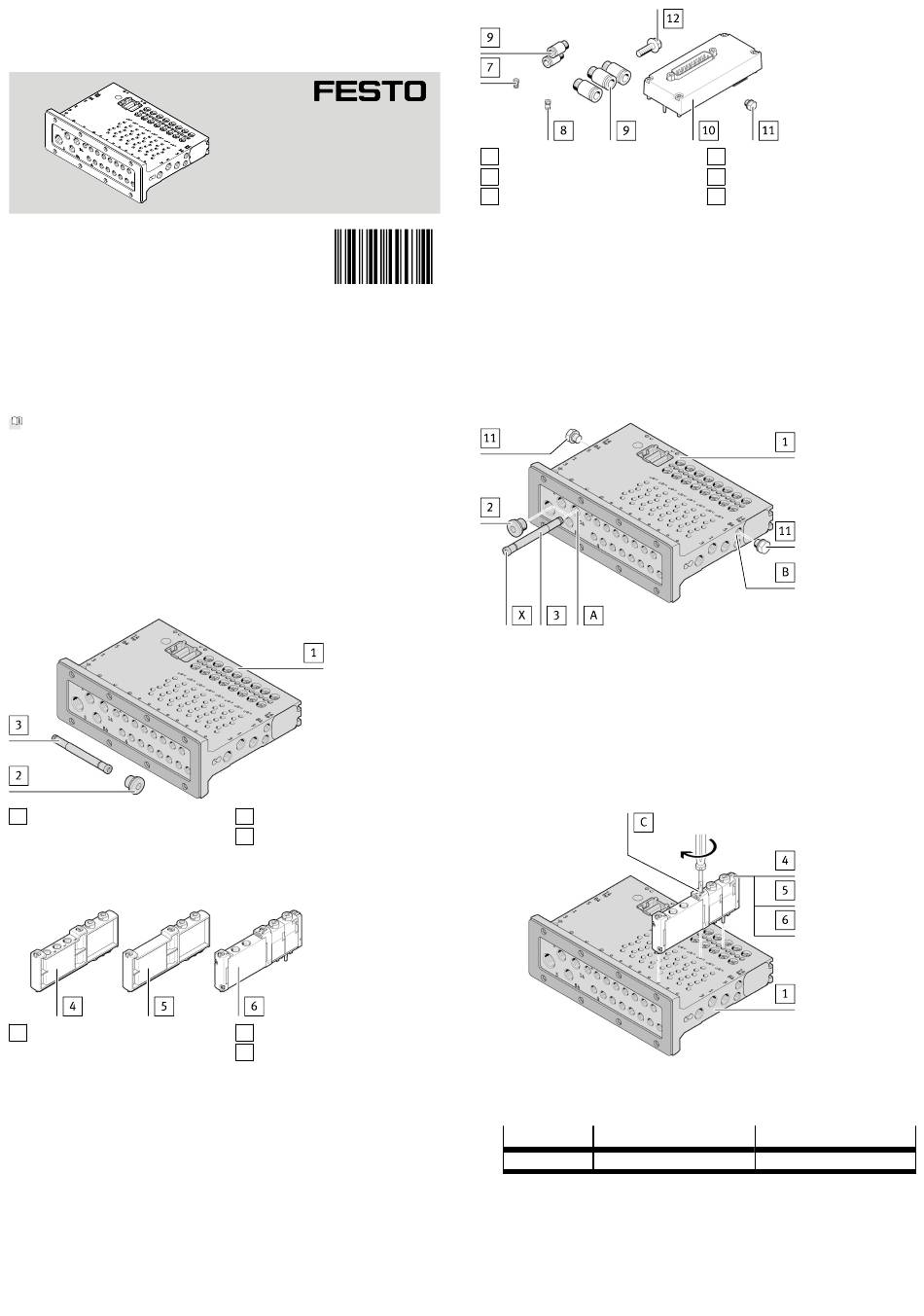

Festo VABM-L1-***HWS1-***-GR Series Instructions & Assembly

Manifold rail
VABM-L1-...HWS1/2-...-GR
Instructions | Assembly
8080413
2018-05a
[8080415]
Translation of the original instructions
1 Further applicable documents
All available documents for the product è www.festo.com/pk.
Observe further applicable documents:
– Assembly instructions for separator VABD-...-B
2 Safety instructions
– Only assemble the product on components that are in a condition to be safely
operated.
– Do not interchange outputs 2 and 4 of the components during the mounting
procedure.
3 Product range overview
3.1 Included in delivery
1 Manifold rail (1x)
VABM-L1-...HWS1/2-...-GR
Fig. 1
3.2 Not included in the delivery
4 Supply plate
VABF-L1-...-P3A4-...-T1
Fig. 2
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8080413
2 Blanking plug (1x)
3 Plug module (1x)
5 Cover plate VABB-L1-...-T
6 Solenoid valve VUVG-...
7 Fixed flow restrictor VFFG-T-F...
8 Check valve VABF-L1-...H-L2
9 QS fitting
Fig. 3
4 Mounting
4.1 Preparation
• Form pressure zones with the VABD-...-B
separator è 1 Further applicable documents.
To feed additional operating pressure into the pressure zones or increase the
exhaust performance:
• Mount supply plate 4 on manifold rail 1.
In case of unused valve positions:
• Mount cover plates 5.
4.2 Assembly of blanking plug/plug module
Fig. 4
• For dismounting of the plug module 3, use the M4 thread (X).
With external pilot air:
• Push plug module 3 into port 14 (A).
With internal pilot air:
1. Screw the blanking plug 2 into the port 14 (A).
Tightening torque: 1.5 Nm – 20 %.
2. Screw both blanking plugs aA into the ports 14 (B).
4.3 Assembly of supply plate/cover plate/solenoid valve
Fig. 5
1. Place the components 4/5/6 on the manifold rail 1.
2. Tighten the screws (C).
VABM-L1- 10HWS
(C) 0.3 Nm + 50 %
Tab. 1
3. If applicable, place additional components 4/5/6 as desired.
10 Electrical interface VAEM-L1-S-...
11 Blanking plug B-M7
12 Screw M5x16-A2-70-PRES-IP
14HWS
0.55 Nm ± 50 %
