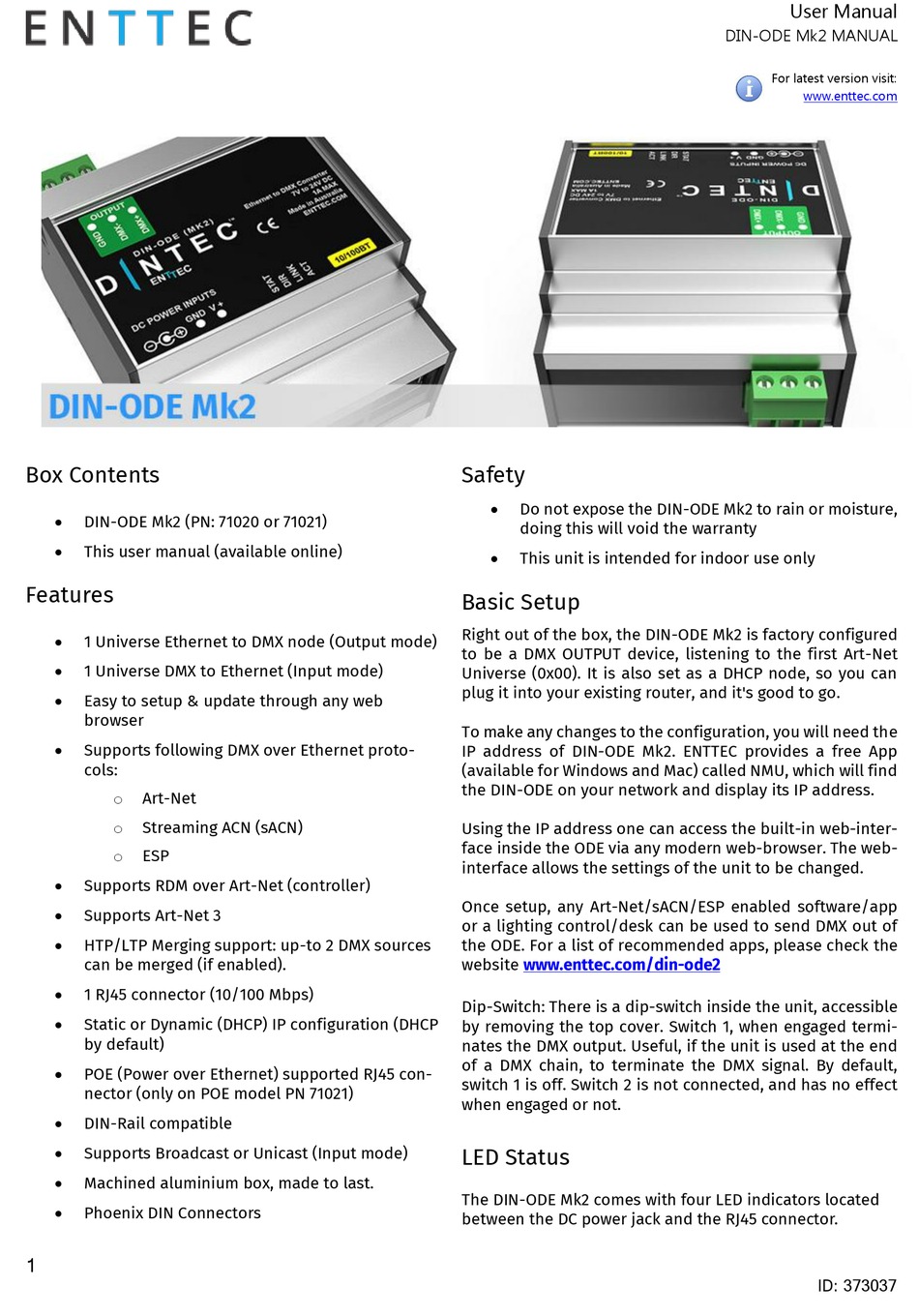

Enttec DIN-ODE MK2 User Manual

Box Contents

DIN-ODE Mk2 (PN: 71020 or 71021)

This user manual (available online)
Features

1 Universe Ethernet to DMX node (Output mode)

1 Universe DMX to Ethernet (Input mode)

Easy to setup & update through any web
browser

Supports following DMX over Ethernet proto-
cols:
Art-Net
o
Streaming ACN (sACN)
o
ESP
o

Supports RDM over Art-Net (controller)

Supports Art-Net 3

HTP/LTP Merging support: up-to 2 DMX sources
can be merged (if enabled).

1 RJ45 connector (10/100 Mbps)

Static or Dynamic (DHCP) IP configuration (DHCP
by default)

POE (Power over Ethernet) supported RJ45 con-
nector (only on POE model PN 71021)

DIN-Rail compatible

Supports Broadcast or Unicast (Input mode)

Machined aluminium box, made to last.

Phoenix DIN Connectors
1
Safety

Do not expose the DIN-ODE Mk2 to rain or moisture,
doing this will void the warranty

This unit is intended for indoor use only
Basic Setup
Right out of the box, the DIN-ODE Mk2 is factory configured
to be a DMX OUTPUT device, listening to the first Art-Net
Universe (0x00). It is also set as a DHCP node, so you can
plug it into your existing router, and it's good to go.
To make any changes to the configuration, you will need the
IP address of DIN-ODE Mk2. ENTTEC provides a free App
(available for Windows and Mac) called NMU, which will find
the DIN-ODE on your network and display its IP address.
Using the IP address one can access the built-in web-inter-
face inside the ODE via any modern web-browser. The web-
interface allows the settings of the unit to be changed.
Once setup, any Art-Net/sACN/ESP enabled software/app
or a lighting control/desk can be used to send DMX out of
the ODE. For a list of recommended apps, please check the
website www.enttec.com/din-ode2
Dip-Switch: There is a dip-switch inside the unit, accessible
by removing the top cover. Switch 1, when engaged termi-
nates the DMX output. Useful, if the unit is used at the end
of a DMX chain, to terminate the DMX signal. By default,
switch 1 is off. Switch 2 is not connected, and has no effect
when engaged or not.
LED Status
The DIN-ODE Mk2 comes with four LED indicators located
between the DC power jack and the RJ45 connector.
