Elite Screens 100GH1 User Manual
Silverframe series fixed frame screen
Hide thumbs
Also See for 100GH1:
- Product catalog (28 pages) ,
- Specifications (2 pages) ,
- Product catalog (72 pages)
Related Manuals for Elite Screens 100GH1
Summary of Contents for Elite Screens 100GH1

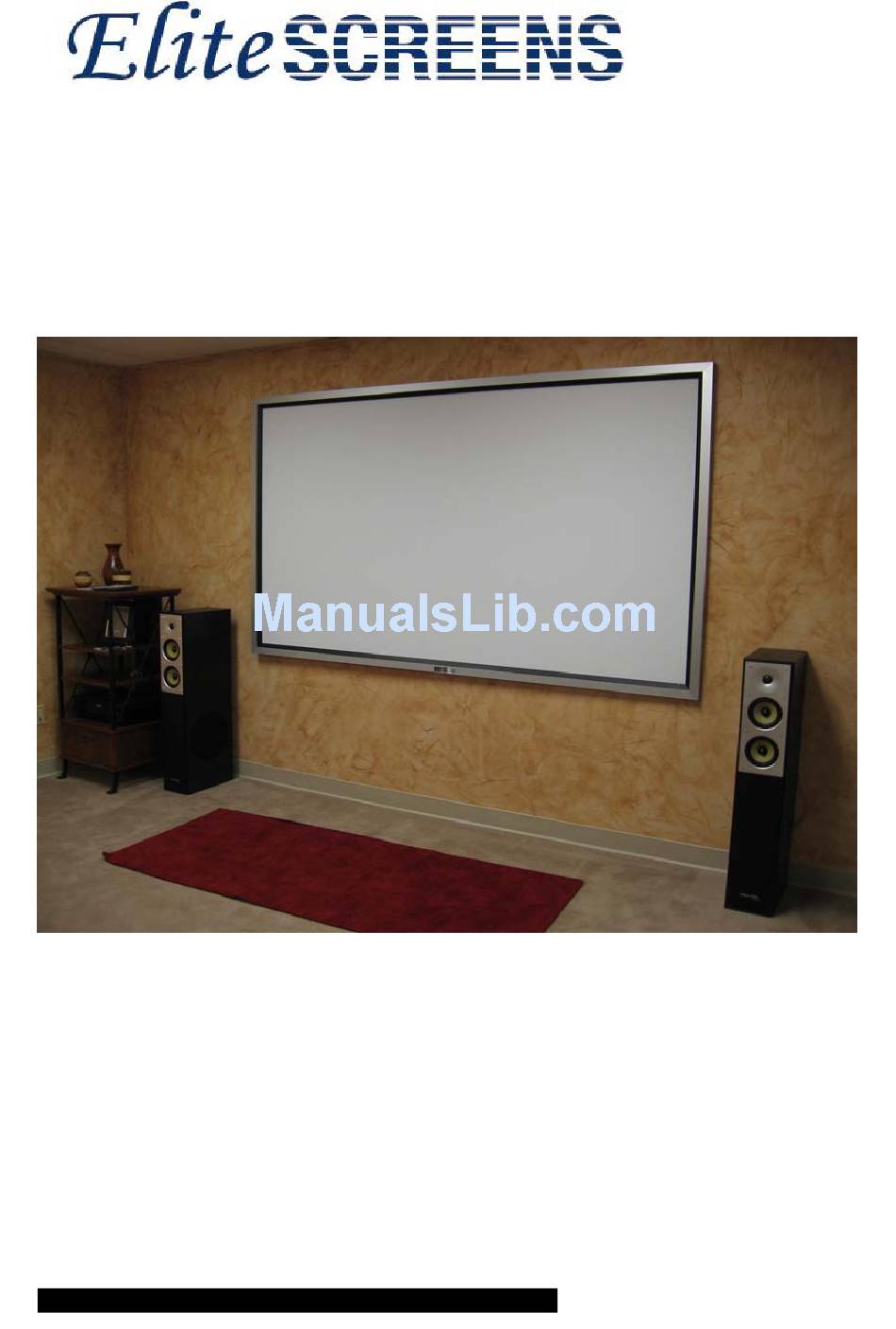

- Page 1 Fixed Frame Screen Elite SilverFrame Series User’s Guide HIGH GAIN WHITE, MATTE WHITE & HIGH CONTRAST GRAY...
- Page 2 ASSEMBLING THE FRAME 1. Insert both corner joint connectors into the long (horizontal) frame (see fig.1) Join all four frame parts together following the steps showed below. (fig.2)
- Page 3 3. After making sure that all four corners join at right angles to form a perfect rectangle, fasten the four angles together by using the (x24) joint screws included. (see fig.3)
- Page 4 INSTALLING THE SCREEN MATERIAL 4. Lay out the screen and tension rods on a clean and dry surface. Pass the screen’s tension rods through the sleeves according to their corresponding lengths on each edge of the screen as seen below. (see fig.4) 5.
- Page 5 Attaching Fix Plates Make sure that the material and frame are both laying face down on a clean, dry and non-abrasive surface. Center the material inside the frame. It will be noticeably smaller because stretching the material is required to create a sufficient amount of tension for perfect material flatness.
- Page 6 Use a stud finder to locate the wall studs nearest the center of your desired screen location. Mount the sliding wall brackets firmly into the wood using the wood screws from the installation kit included with the SilverFrame Screen. Hang the screen onto the wall as illustrated in (fig.
- Page 7 *(see exceptions below) after the DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair.
- Page 8 REGISTER YOUR ELITE PRODUCT WO WAY TO REGISTER YOUR WARRANTY WITH LITE CREENS A. On Line (Faster and Easier) www.elitescreens.com/register.html B. Fill out & Fax to (562) 483-8498, Attn: Customer Service Dept. *Your Name: _______________________________________________________ Address: ____________________________________________________________ City/State/Zip ________________________________________________________ *Email Address: ______________________________________________________ *Phone: _____________________________________________________________ *Screen Model: _______________________________________________________ *Serial Number: _______________________________________________________...
