Elite Screens Yard Master Electric Adjustment Instructions

Vertical limit switch adjustment

Vertical Limit Switch Adjustment Instructions

For technical support or further assistance, call 877-511-1211 x604

ATTENTION: Elite Screens does not recommend making unnecessary adjustments to the screen, as

improper adjustments will damage the unit and void your warranty.

Caution: The screen's Top Black Masking is already set to its maximum distance. There is NO extra

black top drop in the roller. Attempting to increase the drop will damage the motor and VOID your

warranty with Elite Screens. DO NOT use these instructions to try and get more out of your standard

black masking drop. Please contact Elite Screens before making any adjustments.

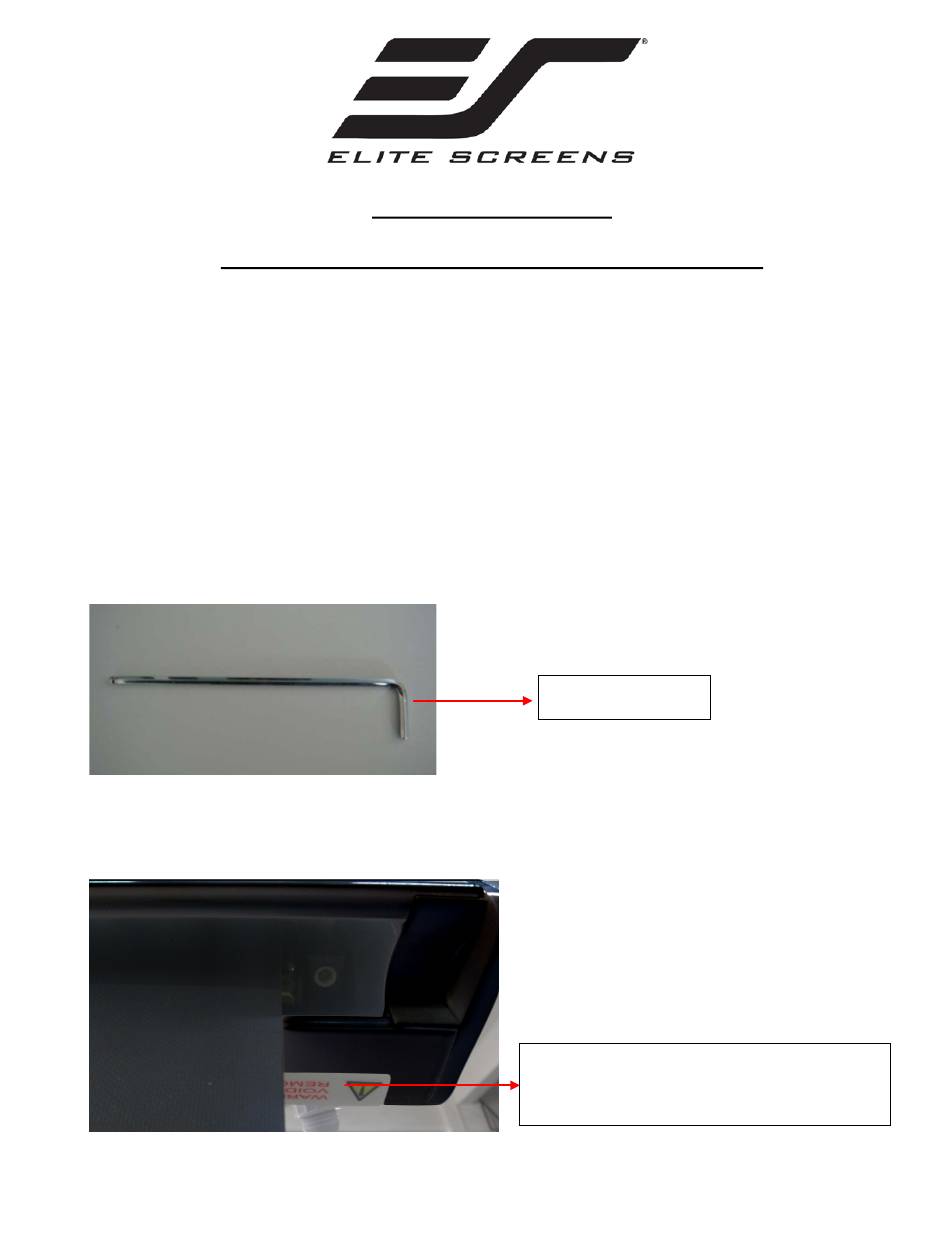

Adjustment tool needed

The adjustment screws are located on the left side of the screen.（as you are facing the front of the

screen）

Updated 05/25/17

Yard Master Electric

Lower limit adjustment screw is covered with a

warning sticker.

5/32" Allen wrench

www.elitescreens.com

Table of Contents

Do you have a question about the Yard Master Electric and is the answer not in the manual?

Page 1 Attempting to increase the drop will damage the motor and VOID your warranty with Elite Screens. DO NOT use these instructions to try and get more out of your standard black masking drop. Please contact Elite Screens before making any adjustments.
Page 2 Upper limit adjustment screw. Lower limit adjustment hole to access the lower limit screw. Adjustment instructions are as follows: If the screen is not retracting fully in to the housing: Insert the Allen wrench in to the upper limit screw and turn it counterclockwise.
Page 3 Note: The screen will not react when making this adjustment. You will need to raise the screen about a third of the way and then drop it down again to see the difference in the adjustment. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Updated 05/25/17 www.elitescreens.com...
