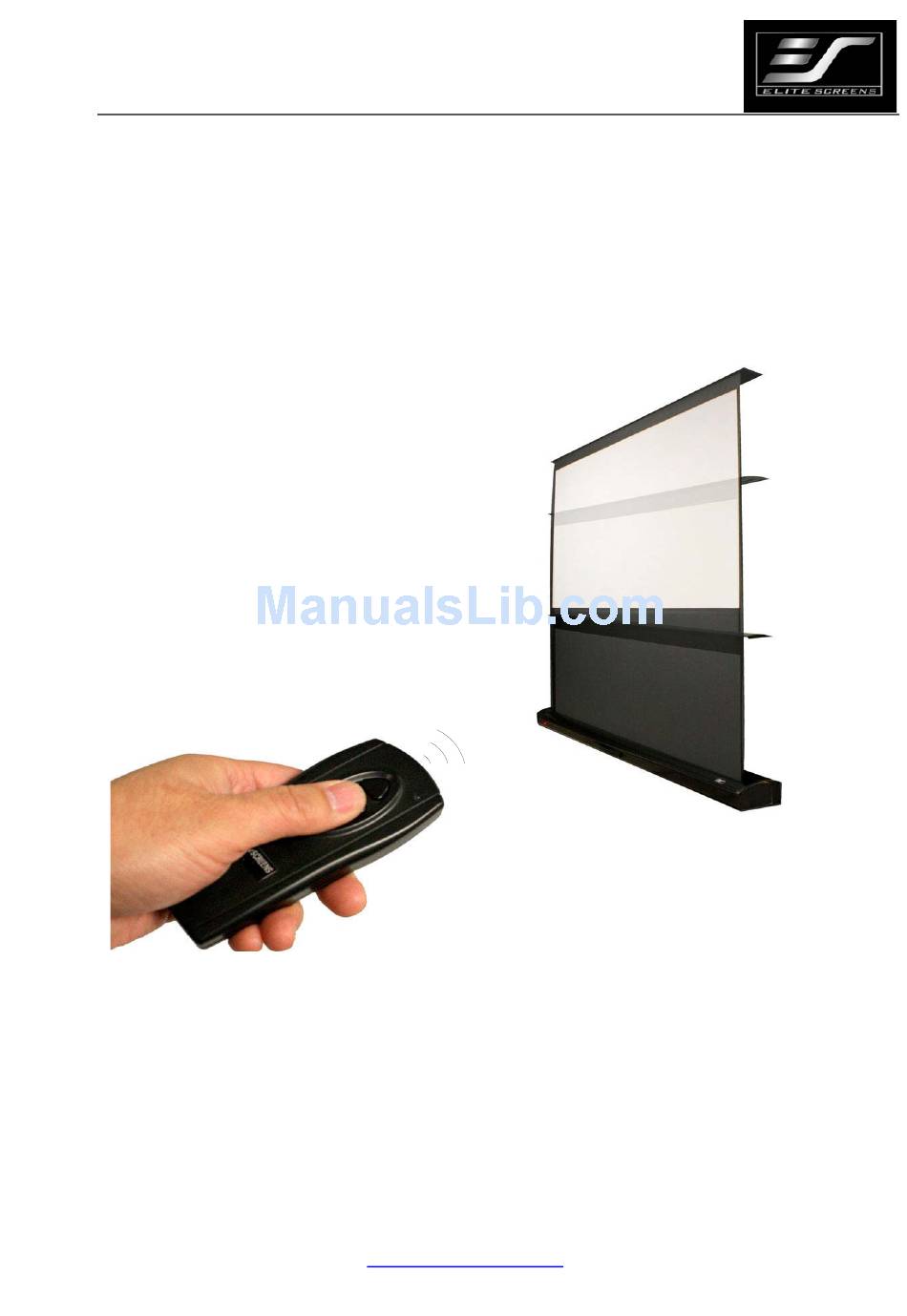

- Page 1 Portable Electric Floor Rising Screen Kestrel Series FOR MODELS: FE72V / 84V/92V/100V / 72H/84H /92H/ 100H USER’S GUIDE www.elitescreens.com Page 1 of 8 ...
- Page 2 Accessories for Kestrel Qty 1 Qty 1 Radio Frequency Remote Control Infrared Remote Control Qty 1 Qty 1 5‐12V DC Trigger IR “eye” Receiver Qty 1 AAA Batteries x 2 Low Voltage 3‐way Wall Switch www.elitescreens.com Page 2 of 8 ...
- Page 3 Please retain this manual for future reference. b. To avoid any damages to the screen, do not use any accessories or parts not recommended by Elite Screens. c. Handle the device carefully during transportation. d. Do not set up screen on uneven surfaces.
- Page 4 NOTE: • This equipment has been tested and found to comply with the limit s for a Class B digital device pursuant to Part 15 of the FCC Guidelines. • The products are designed t o provide reasonable protection against harmful interference in a residential/commercial installation and end user application and may radiate radio frequency energy.
- Page 5 Operating the Kestrel Series Screen Setup: Remove the controls and wiring from the compartment on the left side of the Kestrel Floor Electric Screen as shown in the pictures below. Connect the screen to the power supply and s witch the power button on. Now it is ready for use.
- Page 6 Controlling the Kestrel Series with the 5-12V trigger, Extended IR “eye” receiver or 3-way wall box switch: 1. 5-12V Trigger: Connect the 5-12 volt trigger cable to your projector’s trigger output via a separate cable that may or may not be provided by the projector manufacture. The trigger feature will not work without an output cable from the projector, but it can be tested using a 9-volt battery by simply connecting the Red (+) and Green (-) cable to the 9-volt battery 2.
- Page 7 Immediately advise Elite Screens of all damages or problems. Do not return merchandise to Elite Screens. File your claim with the carrier enclosing copies of the bill of lading (signed by the driver) and inspection report as support. Keep all packing materials and boxes with the damaged product.
- Page 8 22087 Hamburg, Germany Fax: 562-483-8498 Tel: +49-40-30392494 info@elitescreens.com Fax: +49-40-49219200 www.elitescreens.com info@elitescreens.eu www.elitescreens.eu Asia: Latin America Contact: Elite Screens China Ltd. erik.garcia@elitescreens.com East Asia Contact: Longxi Duimianling Industry Zone info.ea@elitescreens.com Longcheng India Contact: Longgang District, info.india@elitescreens.com ShenZhen GuangDong, China Japan Contact: Tel: +86-(0)755-8461-7989 info.japan@elitescreens.com...
