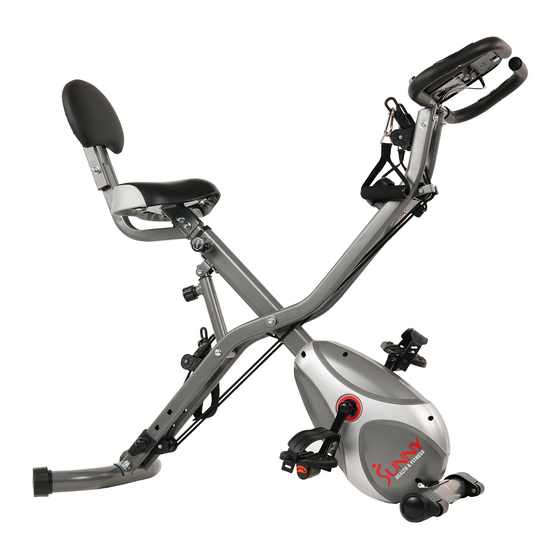

Sunny SF-B2710 User Manual

Total body bike
Hide thumbs Also See for SF-B2710:

Advertisement

Quick Links

See also: User Manual

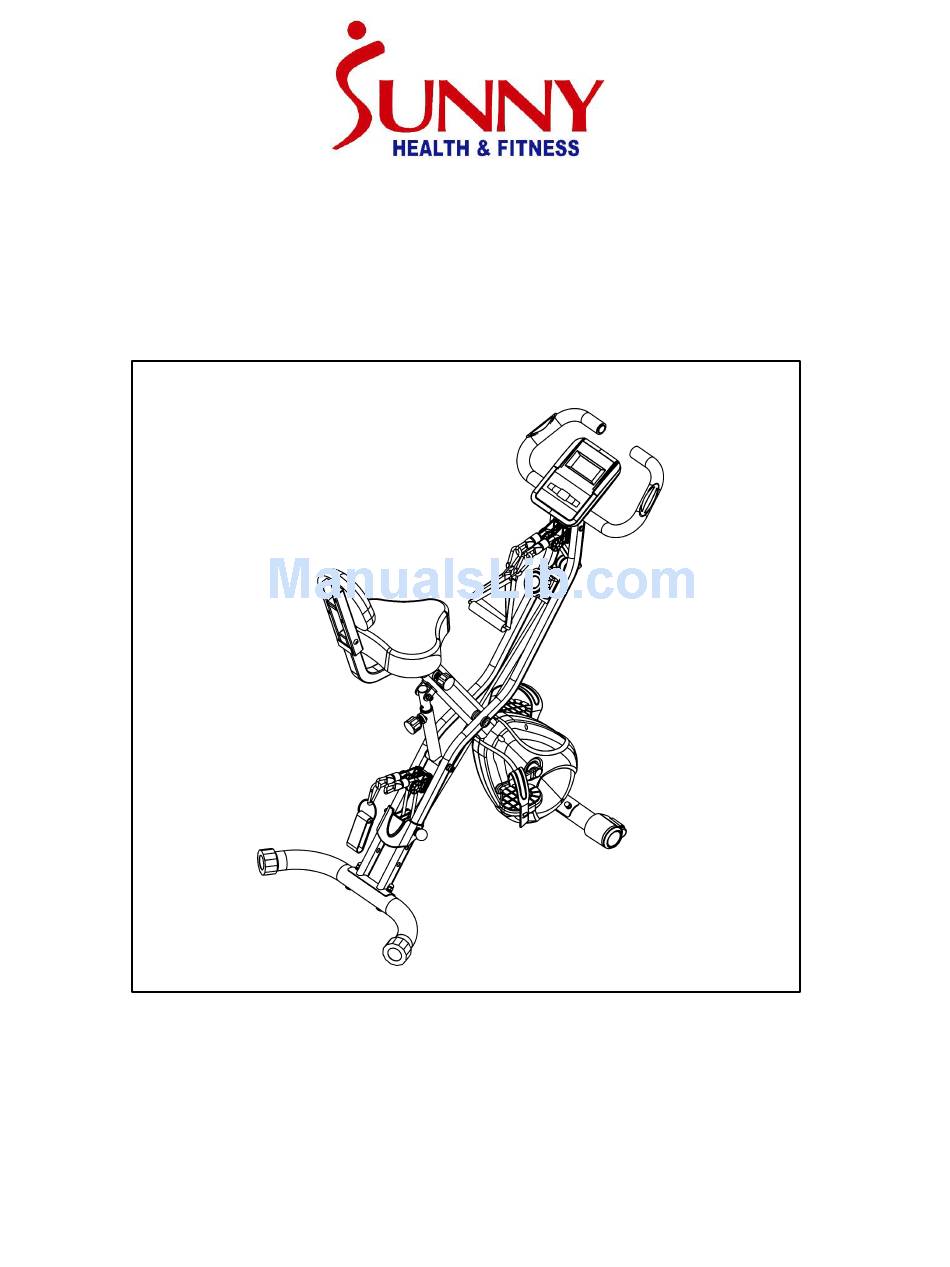

TOTAL BODY BIKE
SF-B2710
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US:
support@sunnyhealthfitness.com
or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

loading
Need help?

Need help?

Do you have a question about the SF-B2710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-B2710

Summary of Contents for Sunny SF-B2710

  • Page 1 TOTAL BODY BIKE SF-B2710 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
  • Page 3 EXPLODED DRAWING...

  • Page 4: Table Of Contents

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Carriage Bolt M8*65 Screw M8*48 ∅8*∅18 ∅25.4 Curved Washer End Cap ∅8*∅14 ∅8*∅18 Spring Washer Flat Washer Cap Nut Nylon Nut ∅50 Adjustable End Caps Press Wheel ∅50*395mm Rear Stabilizer 15*20 ∅50*395mm Front Stabilizer Rear Main Frame ∅50...
  • Page 5 HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Loosen and pull the Release Knob (No. 45) from the folded Rear and Front Main Frame (No. 54 and No. 55) and unfold. Attach Rear Stabilizer (No. 6) to the Front Main Frame (No. 55) using 2 Curved Washers (No. 2), 2 Spring Washers (No.

  • Page 7: Flat Washer

    STEP 3 Remove the pre-assembled 3 Nylon Nuts (No. 51) and 3 Flat Washers (No. 50) from the back of the Seat (No. 68) with Spanner (No. A). Attach the Seat (No. 68) to the Seat Tube (No. 67) with 3 Nylon Nuts (No. 51) and 3 Flat Washers (No.

  • Page 8: Rear Main Frame

    STEP 4 Loosen and pull out Release Knob (No. 45), then insert Seat Tube (No. 67) into Rear Main Frame (No. 54). Insert and tighten Release Knob (No. 45) to secure. STEP 5 Attach Handlebar (No. 84) to the Front Main Frame (No.

  • Page 9: Cover

    STEP 6 Remove 4 Screws (No. 85) from the back of the Meter (No. 86) with Allen Wrench (No. B). Attach Meter (No. 86) to the Front Main Frame (No. 55) with 4 Screws (No. 85) that were removed. Insert Sensor Wire (No. 39) into the hole on the back of the Meter (No.
  • Page 10 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE TENSION OF BIKE Adjust the tension of bike by rotating the Tension Knob (No. 80) clockwise to increase the level of resistance. Rotate the knob counter-clockwise to decrease the level of resistance. ADJUSTING THE TENSION OF EXERCISE BANDS Adjust the tension of Exercise Bands (No.

  • Page 11: Handle

    ADJUSTMENTS & USAGE GUIDE FOLDING THE BIKE Loosen and pull the Release Knob (45), fold the bike, and then engage Release Knob (45) into one of the preset holes and tighten MOVING THE BIKE First fold the bike according to the instructions above. To move the bike, hold Handlebar (No.
  • Page 12 USING THE BIKE Using the Total Body Bike, you can do a variety of exercises as below.

  • Page 13: Meter

    METER INSTRUCTIONS AUTO ON/OFF: The meter will turn on when you press MODE key. After 4 minutes of inactivity, the meter will shut off automatically. FUNCTION BUTTONS MODE: Press for 2 seconds to turn on meter. SET: During STOP mode, press to increase the value of TIME, DISTANCE or CALORIES.
