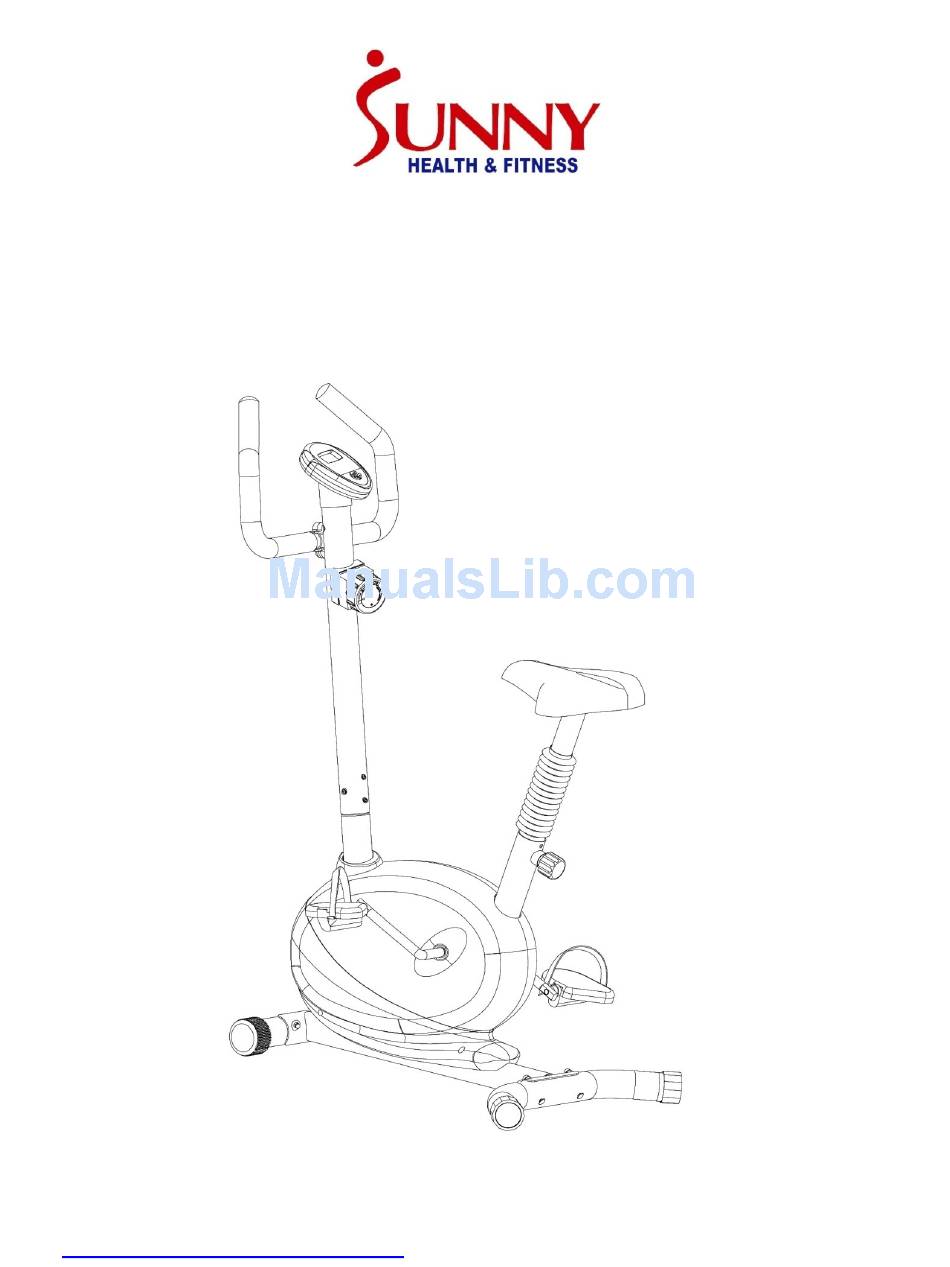

Sunny P8200 User Manual

Pink magnetic upright bike

Advertisement

Quick Links

PINK MAGNETIC UPRIGHT BIKE
NO. P8200
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain
owner's manual for future reference. For customer service, please contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P8200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny P8200

  • Page 1 PINK MAGNETIC UPRIGHT BIKE NO. P8200 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
  • Page 3: Exploded Drawing

    EXPLODED DRAWING...
  • Page 4: Parts List

    PARTS LIST Description Qty. Description Qty. Computer Handlebar Computer wire 1 Rolling End Cap Φ50 Upper Sensor Wire Carriage Bolt M8*60 Tension Control Knob Front Stabilizer Screw M5*15 Nut M8 Handlebar Post 25L/R Left & Right Pedals Arc Washer d8*20*2*R30 Rear Stabilizer Screw M8*16 End Cap Φ50...
  • Page 5: Hardware Package

    HARDWARE PACKAGE...
  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP: 1 Attach the Front and Rear Stabilizers (No. 23 and No. 26) to the Main Frame (No. 9) using 4 Carriage Bolts (No. 22), 4 Arc-Washers (No. 6) and 4 Nuts (No. 24). Tighten and secure with Spanner (No. 36). Attach the Left and Right Pedals (No.
  • Page 7 STEP: 2 IMPORTANT: Before attempting to connect the tension control cable, ensure that the Tension Control Knob (No. 3) is turned all the way to the left (the lowest level of resistance), this will provide the tension cable with the necessary length required to connect it.
  • Page 8 STEP: 3 Fix the Saddle (No. 28) to the Saddle Post (No. 31) using 3 Nylon Nuts (No. 30) and 3 Washers (No. 29). Tighten and secure with Spanner (No. 36). Attach the Stretch Pipe (No. 32) to the Saddle Post (No. 31). Next, insert the Saddle Post (No.
  • Page 9 STEP: 4 Connect the Computer Wire (No. 1a) to the Upper Sensor Wire (No. 2). Connect the Computer (No. 1) to the top of the Handlebar Post (No. 5). Next, attach the Handlebar (No. 20) to the Handlebar Post (No. 5) using 2 Screws (No.
  • Page 10: Exercise Computer

    EXERCISE COMPUTER SPECIFICATIONS: TIME……………………………………… 00:00-99:59 Min/Sec. SPEED…………………………………… 0.0-99.9KM/H or ML/H DISTANCE………………………………. 0.00-999.9KM or ML CALORIES………………………………. 0-9999KCAL TOTAL DISTANCE (ODO)……………..0-9999KM or ML BUTTON OPERATION: MODE – Press the MODE Button to cycle through and select functions; (TIME, DISTANCE and CALORIES). Press and hold the MODE button for 3 seconds to reset time, distance and calories. SET(If Available)–...
  • Page 11 USE & EXERCISE PROCEDURES NOTE: Using the Sunny Magnetic Upright Bike provides you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight. 1. THE WARM-UP PHASE: This stage helps to get the blood flowing around the body while also loosening and preparing the muscles for workout.
