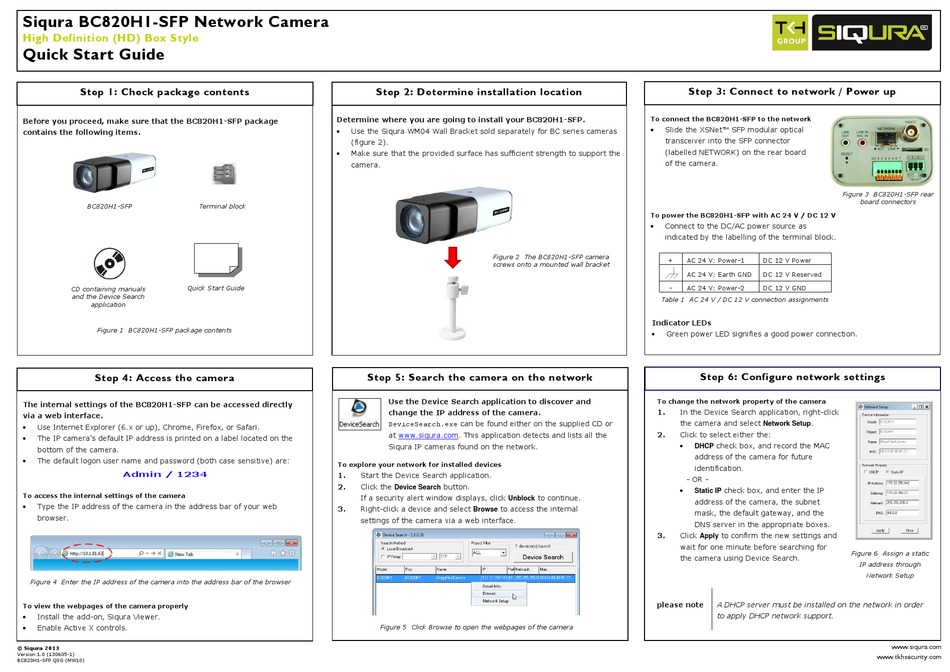

Siqura BC820H1-SFP Quick Start Manual

Siqura BC820H1-SFP Network Camera
High Definition (HD) Box Style

Quick Start Guide

Step 1: Check package contents

Before you proceed, make sure that the BC820H1-SFP package
contains the following items.
BC820H1-SFP
Quick Start Guide
CD containing manuals
and the Device Search
application
Figure 1 BC820H1-SFP package contents

Step 4: Access the camera

The internal settings of the BC820H1-SFP can be accessed directly
via a web interface.
 Use Internet Explorer (6.x or up), Chrome, Firefox, or Safari.
 The IP camera's default IP address is printed on a label located on the
bottom of the camera.
 The default logon user name and password (both case sensitive) are:
Admin / 1234
To access the internal settings of the camera
 Type the IP address of the camera in the address bar of your web
browser.
Figure 4 Enter the IP address of the camera into the address bar of the browser
To view the webpages of the camera properly
 Install the add-on, Siqura Viewer.
 Enable Active X controls.
© Siqura 2013
Version 1.0 (130605-1)
BC820H1-SFP QSG (MW10)

Step 2: Determine installation location

Determine where you are going to install your BC820H1-SFP.
 Use the Siqura WM04 Wall Bracket sold separately for BC series cameras
(figure 2).
 Make sure that the provided surface has sufficient strength to support the
camera.
Terminal block

Step 5: Search the camera on the network

To explore your network for installed devices
1. Start the Device Search application.
2. Click the
If a security alert window displays, click
3. Right-click a device and select
settings of the camera via a web interface.
Figure 2 The BC820H1-SFP camera
screws onto a mounted wall bracket
Use the Device Search application to discover and
change the IP address of the camera.
DeviceSearch.exe can be found either on the supplied CD or
at www.siqura.com. This application detects and lists all the
Siqura IP cameras found on the network.
button.
Device Search
to continue.
Unblock
to access the internal
Browse
Figure 5 Click Browse to open the webpages of the camera

Step 3: Connect to network / Power up

To connect the BC820H1-SFP to the network
 Slide the XSNet™ SFP modular optical
transceiver into the SFP connector
(labelled NETWORK) on the rear board
of the camera.
To power the BC820H1-SFP with AC 24 V / DC 12 V
 Connect to the DC/AC power source as
indicated by the labelling of the terminal block.
+ AC 24 V: Power-1 DC 12 V Power
AC 24 V: Earth GND DC 12 V Reserved
- AC 24 V: Power-2 DC 12 V GND
Table 1 AC 24 V / DC 12 V connection assignments
Indicator LEDs
 Green power LED signifies a good power connection.

Step 6: Configure network settings

To change the network property of the camera
1. In the Device Search application, right-click
the camera and select .
Network Setup
2. Click to select either the:
 check box, and record the MAC
DHCP
address of the camera for future
identification.
- OR -
 check box, and enter the IP
Static IP
address of the camera, the subnet
mask, the default gateway, and the
DNS server in the appropriate boxes.
3. Click to confirm the new settings and
Apply
wait for one minute before searching for
the camera using Device Search.
please note A DHCP server must be installed on the network in order
to apply DHCP network support.
Figure 3 BC820H1-SFP rear
board connectors
Figure 6 Assign a static
IP address through
Network Setup
