Siqura BC820 Installation Manual

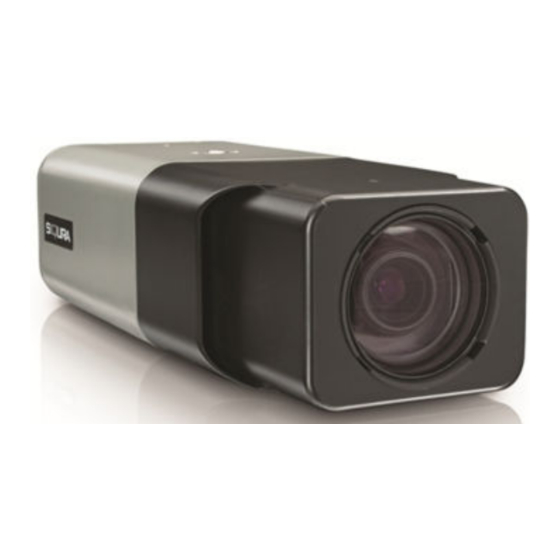

Hd box camera with day/night, h.264
Hide thumbs Also See for BC820:
Table of Contents

Advertisement

Quick Links

See also: User Manual
BC820 Series
HD box camera with Day/Night, H.264

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC820 and is the answer not in the manual?

Questions and answers

Related Manuals for Siqura BC820

Summary of Contents for Siqura BC820

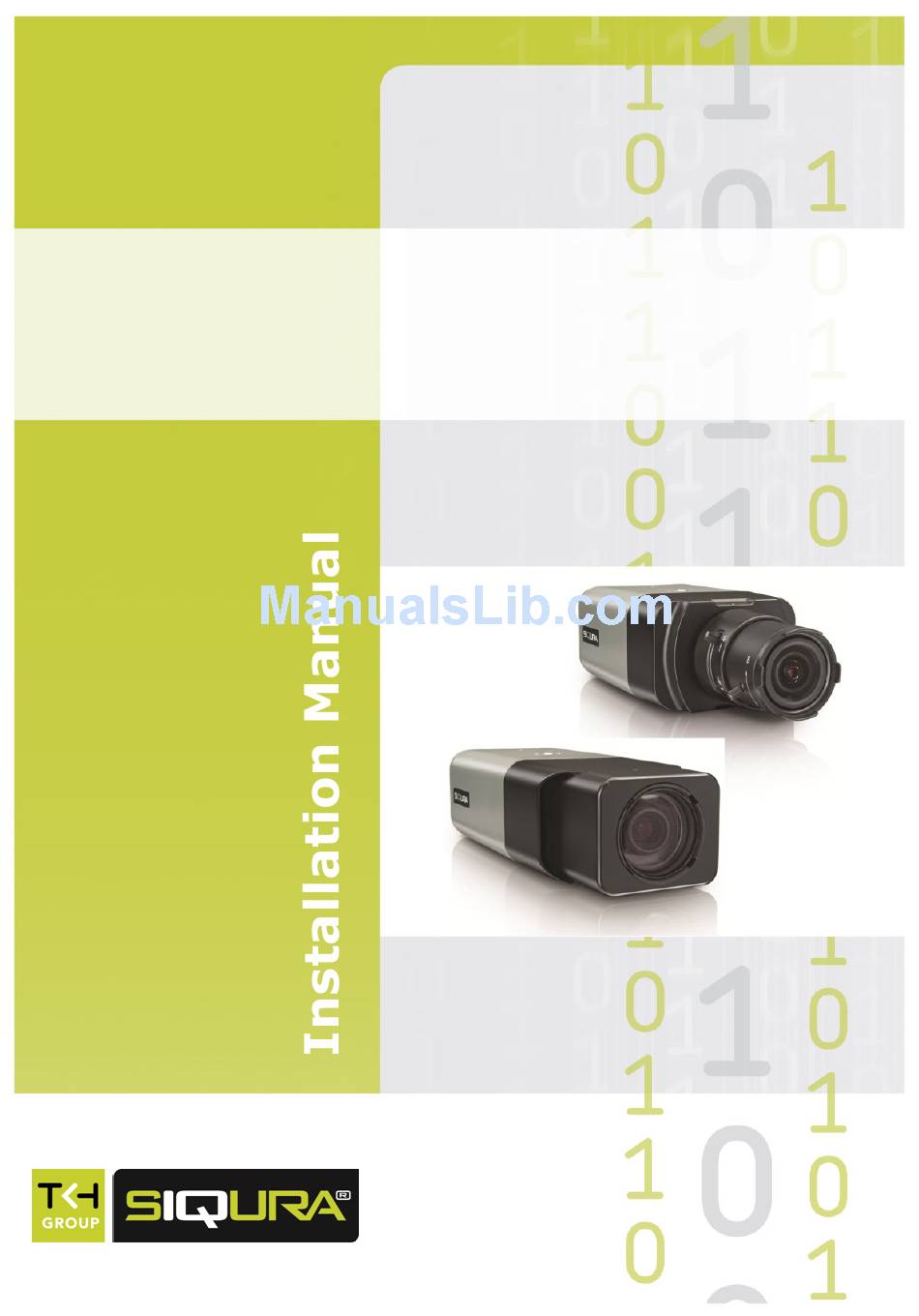

  • Page 1 BC820 Series HD box camera with Day/Night, H.264...
  • Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.

  • Page 3: Table Of Contents

    Alarm application ................. Audio ....................Micro SD storage ................. Mount the camera and the lens ..............Mount the camera ................Mount the lens ..................Appendix: Technical specifications ............BC820 and BC820-SFP ................. BC820MP5 and BC820MP5-SFP .............. BC820H1 and BC820H1-SFP ..............

  • Page 4: Introduction

    Document scope This manual applies to the BC820 series, Siqura's high-definition IP box cameras. It describes how to install BC820 cameras. For instructions on how to operate and configure a BC820, see the user manual of the specific model. Intended audience This manual is intended for technicians and operators involved in the installation of BC820 cameras.

  • Page 5: Safety And Compliance

    Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the module. Siqura assumes no liability for the customer's failure to comply with any of these safety requirements.

  • Page 6: Compliance

    Safety and compliance Never face the camera towards the sun Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at the sun or other extremely bright objects, as this can damage the camera. Do not expose indoor models to moisture The indoor dome camera is designed for indoor use or use in locations where it is protected from rain and moisture.

  • Page 7: Product Overview

    As a part of the Siqura collection, the BC820 cameras can be easily integrated with nearly all Siqura software and hardware solutions, including video codecs/servers, IP and analog cameras, video management and configuration software, and network storage devices.

  • Page 8: Models

    Day/Night (IR cut filter) ● Alarm I/O (1 output, 1 input) ● ROHS compliant ● 24 Vac / 12 Vdc / 802.3af PoE (BC820 only) ● RS-485 PTZ support ● SFP Interface (BC820-SFP) BC820MP5 & BC820MP5-SFP 5 Megapixel indoor network box camera with Day/ Night ●...

  • Page 9: Description

    (PoE) sources (SFP models excepted). The cameras can also be powered by 12 Vdc or 24 Vac (terminal block). SFP interface The SFP models are equipped with an SFP interface. It supports the Siqura XSNet™ SFP range for Ethernet over fiber and the Siqura ECO-plug™ for Ethernet over coax. Privacy masks Privacy masks cover sections of the image.

  • Page 10: Package Contents

    Product overview Package contents BC820/BC820-SFP & BC820MP5/BC820MP5-SFP BC820/BC820-SFP C mount lens Back focus adjuster Quick Start Guide (lens not included) adapter CD containing Terminal block Wire clip 1.5 A Power adapter manuals and DeviceSearch application BC820H1 & BC820H1-SFP BC820/BC820-SFP Terminal block...

  • Page 11: Back Panel

    BC820. In This Chapter 4.1 Switches, connectors, and buttons................11 4.2 System requirements.................... 12 4.3 System compatibility..................... 12 Switches, connectors, and buttons BC820 series cameras have the following connectors: BC820/BC820MP5 back panel BC820H1 back panel Feature Description CC/Data In/Out Connectors for data and contact closures 1.

  • Page 12: System Requirements

    All settings, including the camera's IP address, are reset to the original factory settings. System requirements The BC820 camera can be accessed and configured from a standard web browser supporting ActiveX controls. The browsing PC must meet the system requirements described in the table below.

  • Page 13: Cable Connection

    5.4 Audio........................14 5.5 Micro SD storage....................14 Power options All BC820 series cameras support 12 Vdc and 24 Vac via terminal block. The BC820/ BC820MP5 and BC820H1 models also support Power over Ethernet (PoE). 3-pin power connector Power the camera...

  • Page 14: Alarm Application

    Connect one end of the Ethernet cable to the camera's RJ-45 connector and the other end of the cable to the IEEE 802.3AF network switch or PC. The BC820 consumes 3.8 W of power. Note: In some cases, you may need to use an Ethernet crossover cable when directly connecting the BC820 cameras to a PC.

  • Page 15: Mount The Camera And The Lens

    6.2 Mount the lens......................15 Mount the camera The BC820 can be installed directly on a wall or ceiling, provided the surface has sufficient strength to support the camera. The mounting bracket screws directly into the screw hole shown in the figure below. No tools are required. There are screw holes on both the top and bottom of the camera.
  • Page 16 Mount the camera and the lens C/CS mount adapter Attached lens...

  • Page 17: Appendix: Technical Specifications

    Appendix: Technical specifications This appendix provides the technical specifications of the BC820 series cameras. In This Chapter BC820 and BC820-SFP....................18 BC820MP5 and BC820MP5-SFP..................21 BC820H1 and BC820H1-SFP..................24...

  • Page 18: Bc820 And Bc820-Sfp

    Appendix: Technical specifications BC820 and BC820-SFP Camera Image sensor 1/2.7" Progressive scan CMOS Video standards PAL/NTSC Output resolutions 1080p (1920x1080); 720p (1280x720); 1024x768; 800x600; D1 (720x576); CIF (352x288) Effective pixels 1920(H) x 1080(V) Digital slow shutter 1 - 1/15 s...
  • Page 19 Appendix: Technical specifications Functions Privacy masks Privacy mask type Colour Video motion detection 10 user-defined; rectangular masking; adjustable detection level, sensitivity, time interval Language support English, French, German, Italian, Korean, Simplified Chinese, Traditional Chinese, Russian Event notification HTTP, FTP, SMTP Tampering alarm On/off Video...
  • Page 20 User and administrator Supported browsers Internet Explorer (6.0+), Chrome, Firefox, Safari User accounts Powering Power consumption Power BC820 12 Vdc / 24 Vac / Power over Ethernet (PoE) BC820-SFP 12 Vdc / 24 Vac Power connector Terminal block Environmental Operating temperature -10 °C to +50 °C (+14 °F to +122 °F)

  • Page 21: Bc820Mp5 And Bc820Mp5-Sfp

    Appendix: Technical specifications BC820MP5 and BC820MP5-SFP Camera Image sensor 1/2.5" CMOS 5.0 Megapixel Video standards PAL/NTSC Output resolutions 5MP (2592 x 1944); 3.1MP (2048 x 1536); 1080p (1920 x 1080); 720p (1280 x 720); SVGA (800 x 600); D1 (720 x 480); VGA (640 x 480); CIF (352 x 240) Effective pixels 2592 (H) x 1944 (V) Shutter speed...
  • Page 22 Appendix: Technical specifications Video Number of video streams Max. 4x H.264 or 3x H.264 + 1x MJPEG Number of output Up to 20 (RTSP) streams Compression H.264 (MPEG-4 Part 10 / AVC) / MJPEG algorithm(s) Encoder bit rate control Constant bit rate (CBR), Variable bit rate (VBR) Maximum streaming capabilities H.264...
  • Page 23 Appendix: Technical specifications Network Interface(s) 10/100 Ethernet RJ-45 Protocols IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, IEEE 802.1x, QoS, ONVIF Password levels User and administrator Supported browsers Internet Explorer (6.0+), Chrome, Firefox, Safari User accounts Powering Power consumption...

  • Page 24: Bc820H1 And Bc820H1-Sfp

    Appendix: Technical specifications BC820H1 and BC820H1-SFP Camera Image sensor 1/2.7" Progressive scan CMOS Video standards PAL/NTSC Output resolutions 1080p (1920x1080); 720p (1280x720); XVGA (1024x768), SVGA (800x600); D1 (720x576); CIF (352x288) Effective pixels 1920(H) x 1080(V) Shutter speed 1 - 1/10000 s Signal-to-noise ratio >40 dB (AGC off) Minimum scene...
  • Page 25 Appendix: Technical specifications Video Number of video streams 4x H.264 or 3x H.264 + 1x MJPEG Number of output Up to 20 (RTSP) streams Compression H.264 MP (ISO/IEC 14496-10), MJPEG algorithm(s) Encoder bit rate control Constant bit rate (CBR), Variable bit rate (VBR) Output bit rate (per H.
  • Page 26 Appendix: Technical specifications Contact closures Alarm input 1x 5 V 10 kΩ pull-up input Operational modes Normally open / normally closed Triggered actions Enable output; email message, email image, FTP message, FTP image, record on SD card, API event Alarm output Photo relay output 300 Vdc/Vac Storage Storage options...
