Siqura BL1103M1-EI Quick Start Manual

BL1103M1-EI

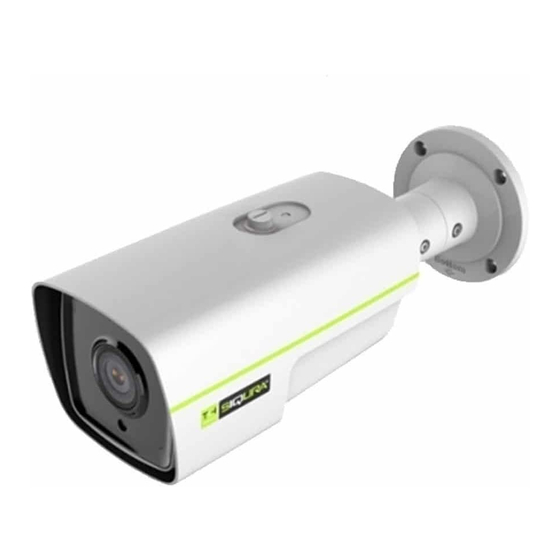

3 MP Intelligent IP bullet camera

Quick Start Guide

(a)

Unpack

Note: Subject to modification. Actual product and accessories may differ in appearance.

Insert Micro SD card / Reset

Serial port
(deb ugging on ly)
Reset but ton
Mic ro S D/SDHC/SDXC
(up to 128 GB)
*Reset button: Press and hold for 10 sec. when powering on or rebooting.
Warning: Restores factory default settings, including IP address, user name and password!
© Siqura B.V. 2017
Version 1.1 (160707-1.1)
bl1103m1ei QSG (MW10)
Find additional manuals, the datasheet,
the EU Declaration of Conformity and the
latest firmware for this product at:
http://www.tkhsecurity.com/support-files

Connect

Digital I/O
RJ-45
802.3af PoE
Note: Camera breakout cable connectors are labelled with their function and polarity.

Use DHCP server

DHCP:
Network s wit ch
IP = 10.x.y.z
IP = 10.x.y.z
DHCP
0°~360°
1
12 Vdc
0°~100°

Tilt angle (1)

Pan angle (2)

Camera rotation (3)
Note: For mounting instructions for pole mount or wall mount, see respective manuals.
DHCP:
IP = 10.x.y.z
30 s
IP = 192.168.1.x
2 ~ 253
Note: Use Device Manager (see next) to discover the camera on the network.

Mount

2
3
0°~360°

Use fixed IP address

IP = 192.168.1.x
Network s wit ch
DHCP
