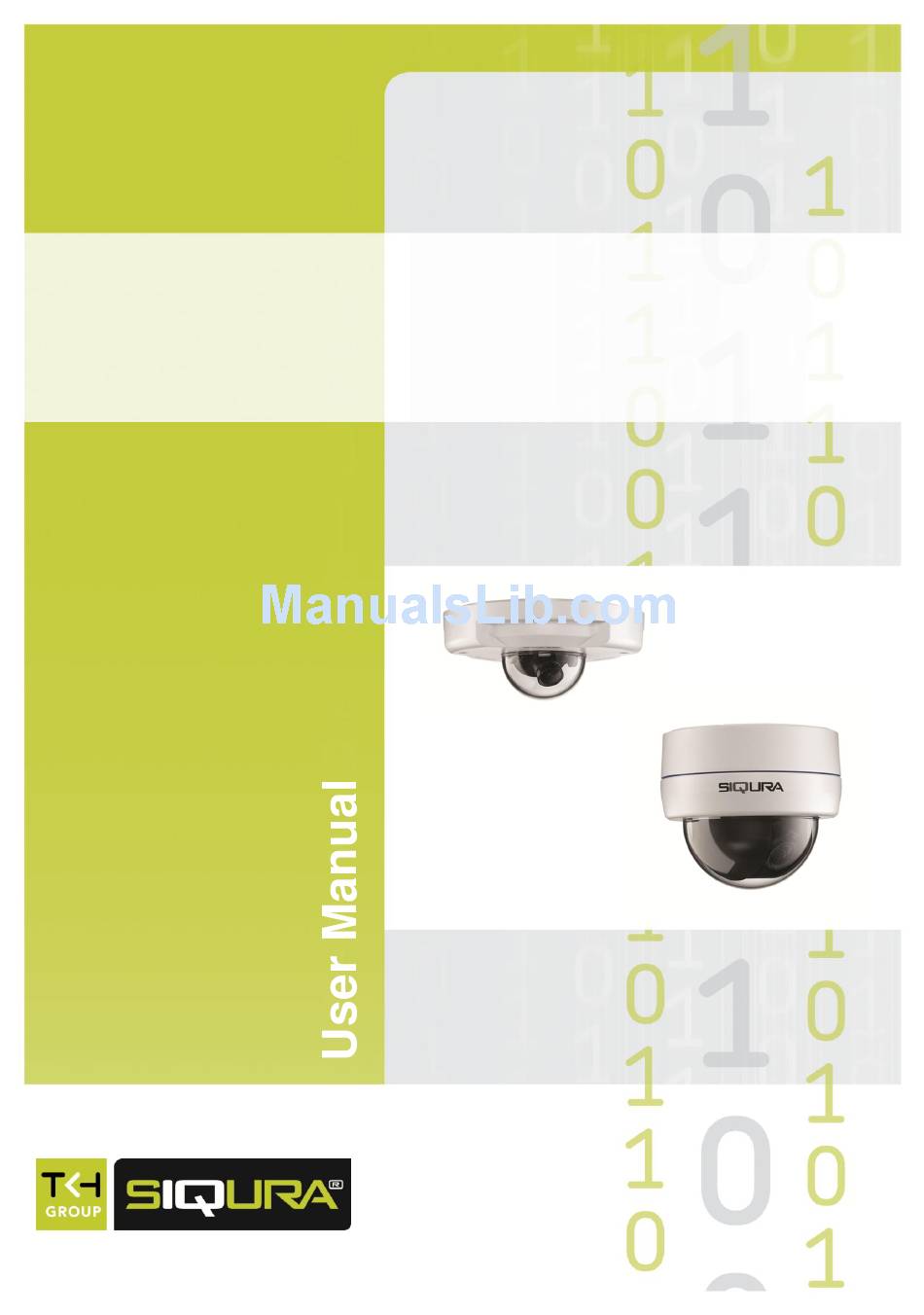

  • Page 1 CD820 & (I)FD820 Series HD Fixed Dome Network Camera...
  • Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.

  • Page 3: Table Of Contents

    Contents ABOUT THIS MANUAL ..........................7 SAFETY AND COMPLIANCE ........................9 ..............................9 AUTIONS ............................10 OMPLIANCE PRODUCT OVERVIEW ..........................11 ..........................11 OMMON FEATURES ..............................11 ODELS ............................13 ESCRIPTION ACCESS THE WEBPAGES ......................... 15 ..........................15 YSTEM REQUIREMENTS ........................
  • Page 4 FD820) ......................81 UNCTION WDR F ............................82 UNCTION ............................. 82 OISE EDUCTION TV S .............................. 82 YSTEM APPENDIX: INSTALL UPNP COMPONENTS ...................... 83 APPENDIX: DELETE THE EXISTING SIQURA VIEWER SOFTWARE ..............85 APPENDIX: SET UP INTERNET SECURITY ......................87 Page 4...
  • Page 5 Contents APPENDIX: VIDEO RESOLUTION ........................89 ..............................89 UAD STREAMS ..............................93 RIPLE STREAMS ..............................95 UAL STREAMS ..............................95 INGLE STREAM Page 5...

  • Page 7: About This Manual

    About this manual What this manual covers This manual applies to the (I)FD820 and CD820 series, Siqura's HD fixed dome and compact fixed dome network cameras. In this manual, "CD/(I)FD820" is the product name used when describing features Note: common to all (I)FD820 and CD820 models. In descriptions of distinguishing features, the relevant model name is used.

  • Page 9: Safety And Compliance

    Safety and compliance This chapter presents the CD/(I)FD820 safety instructions and compliance information. In This Chapter Cautions ................9 Compliance ............... 10 Cautions Make sure that camera installation is performed by a specialist Only qualified service personnel or system installers should install and connect this product. Handle the camera carefully Do not abuse the camera.

  • Page 10: Compliance

    CD820 & (I)FD820 Series Prevent exposure to optical radiation (units with SFP interface) Optical equipment presents potential hazards to testing and servicing personnel, owing Warning: to high levels of optical radiation. When using magnifying optical instruments, avoid looking directly into the output of an operating transmitter or into the end of a fiber connected to an operating transmitter, or there will be a risk of permanent eye damage.

  • Page 11: Product Overview

    Product overview CD/(I)FD820 series cameras are HD fixed dome network cameras providing high-quality high-definition images. This chapter introduces the individual models and their features. In This Chapter Common features .............. 11 Models ................11 Description ................ 13 Common features CD/(I)FD820 series cameras share the following features. Multiple resolutions: 1080p/720p ...
  • Page 12 CD820 & (I)FD820 Series FD820M1 HD outdoor fixed dome network camera with Day/Night Additional features  3.0 - 9 mm Varifocal, motorised lens  Day/Night (IR cut filter)  IP66 ingress rating  Extended temperature range FD820M1IR HD outdoor fixed dome camera network with Day/Night and built-in IR Additional features ...

  • Page 13: Description

    Product overview Description General The Siqura CD/(I)FD820 is a network fixed dome camera providing high-quality high-definition images. Multistream high definition CD/(I)FD820 cameras support quad-stream compression (H.264 Baseline / Main / High Profile + MJPEG) for efficient bandwidth and storage management. Multiple combinations of resolution and frame rate can be configured to satisfy different live viewing and recording scenarios.

  • Page 15: Access The Webpages

    System requirements ............15 Connect via web browser ............ 16 Find the unit with Siqura Device Manager ......16 Change the network settings with Siqura Device Manager ..17 Log on to the unit .............. 17 Install Siqura Viewer ............18 The CD/(I)FD820 Web Interface ..........

  • Page 16: Connect Via Web Browser

    Type the IP address of the CD/(I)FD820 in the address bar of the browser Find the unit with Siqura Device Manager With Siqura Device Manager - a tool included on the supplied Siqura Product CD - you can locate, manage, and configure Siqura IP cameras and video encoders.

  • Page 17: Change The Network Settings With Siqura Device Manager

    Access the webpages Change the network settings with Siqura Device Manager With Siqura Device Manager, you can directly change the network settings of the CD/(I)FD820.  To assign a static IP address Go to the list of detected devices, and then right-click the entry for the CD/(I)FD820.

  • Page 18: Install Siqura Viewer

    The first time you access the webpages of the camera, you may be prompted about the installation of Siqura Viewer. This add-on is required to view camera images in the webpages. The Siqura Viewer installation file is named install.cab. It does not give rise to any security risks. You can install it safely.

  • Page 19: The Cd/(I)Fd820 Web Interface

    Access the webpages The CD/(I)FD820 Web Interface On successful login, the home page of the CD/(I)FD820 is displayed. Camera settings and functions are organised on five main tabs found across the top of this page: Home System , and Streaming Camera Logout Home...

  • Page 21: Home

    Home After successful login, the home page of the CD/(I)FD820 opens in your web browser. This chapter describes the functionality available on this page. In This Chapter CD820/IFD820 ..............22 FD820 ................23 Home Page Features ............24 Zoom and Focus (FD820) ............ 25 Page 21...

  • Page 22: Cd820/Ifd820

    CD820 & (I)FD820 Series CD820/IFD820 CD820 and IFD820 home page This Button Does This Sets image display to standard size Sets image display to half size Sets image display to full screen Activates/deactivates the talk function Activates/mutes audio Saves a JPEG snapshot Pauses/Resumes video streaming Starts/Stops Live View recording Page 22...

  • Page 23: Fd820

    Home FD820 FD820 home page This Button Does This Sets image display to standard size Sets image display to half size Sets image display to full screen Activates/deactivates the talk function Activates/mutes audio Saves a JPEG snapshot Pauses/Resumes video streaming Starts/Stops Live View recording Adjusts lens angle to wide angle/tele zoom position Allows stepwise zoom adjustment...

  • Page 24: Home

    CD820 & (I)FD820 Series Home Page Features On the home page, you can do the following: View live video  Record live view images  Save snapshots of live view images  Adjust the video display size  Select the video format ...

  • Page 25: Zoom And Focus (Fd820)

    Home Zoom and Focus (FD820) FD820 series cameras support focus and zoom adjustment from the home page. Zoom Hold the Wide and Tele buttons for continuous zoom adjustment. Alternatively, you can click the Wide Steps and Tele Steps buttons for stepwise zoom adjustment using the step range selected on the drop-down list.

  • Page 27: System Settings

    System Settings On the System tab, Administrators can set and modify the CD/(I)FD820's system parameters. This chapter offers a detailed description of settings, options, and values found on this tab. In This Chapter System ................28 Security ................30 Network ................37 DDNS ................

  • Page 28: System

    CD820 & (I)FD820 Series System System > System Clicking the System option in the left-hand panel displays the CD/(I)FD820's host name, time zone, and time synchronisation settings. Remember to press after changing any settings. Save 6.1.1 Host name Specify a name to identify the camera on the network. If the alarm function is enabled and set to send alarm messages by mail or FTP the host name entered here will display in the alarm message.

  • Page 29: Time Synchronisation

    System Settings 6.1.4 Time synchronisation Sync with computer time If Sync with computer time is selected, the displayed date and time are synchronised with those of the user's PC. Manual Administrators can also set the video stream date and time manually. Note that the entry format for date and time should match the one shown next to the entry field (yyyy/mm/dd).

  • Page 30: Security

    CD820 & (I)FD820 Series Security From the Security pages, the administrator can perform user management, install security certificates, and enable and configure an IP address filter. 6.2.1 User System > Security > User 6.2.1.1 Admin password The default user name is Admin. The default password is 1234. User name and password are case sensitive.

  • Page 31: Adding And Managing User Accounts

    System Settings 6.2.1.2 Adding and managing user accounts The camera supports a maximum of twenty user accounts. User names and passwords can be up to 16 characters. Each user can be assigned the privileges of Camera control, Talk, and Listen. Privilege Description I/O access...

  • Page 32: Https

    CD820 & (I)FD820 Series 6.2.2 HTTPS System > Security > HTTPS HTTPS, SSL, and TLS Hypertext Transfer Protocol Secure (HTTPS) allows secure connections between the IP camera and the web browser using Secure Socket Layer (SSL) or Transport Layer Security (TLS), which protect camera settings and user name / password information from eavesdropping.

  • Page 33: Creating A Self-Signed Certificate

    System Settings 6.2.2.1 Creating a self-signed certificate  To create a self-signed certificate On the System tab, click in the menu on the left. Security In the Security submenu, click HTTPS Under Create self-signed certificate, click Create Enter the requested information in the Create dialog box, as described below. All fields are required.

  • Page 34: Ip Filter

    CD820 & (I)FD820 Series 6.2.3 IP filter System > Security > IP filter Using the IP filter, access to the IP camera can be restricted by denying/allowing specific IP addresses. Up to 256 IP addresses may be specified.  To enable the IP filter On the System tab, click in the menu on the left.

  • Page 35: Ieee 802.1X

    System Settings 6.2.4 IEEE 802.1X System > Security > IEEE 802.1X The CD/(I)FD820 is allowed to access a network protected by 802.1X/EAPOL (Extensible Authentication Protocol over LAN). Users need to contact the network administrator to obtain certificates, User IDs, and passwords. 6.2.4.1 CA certificate The CA certificate is created by the Certificate Authority (CA) for validation purposes.

  • Page 36: Client Certificate And Private Key

    CD820 & (I)FD820 Series 6.2.4.2 Client certificate and private key The Client certificate and Private key must be uploaded to authenticate the camera itself.  To upload a Client certificate/Private key On the System tab, click in the menu on the left. Security In the Security submenu, click IEEE 802.1X...

  • Page 37: Network

    System Settings Network From the Network pages, the administrator can configure IP address assignment and settings for Quality of Service (QoS), the Simple Network Management Protocol (SNMP), and Universal Plug and Play (UPnP). 6.3.1 Basic System > Network > Basic This page describes how to configure the camera to use a fixed IP address or acquire the address dynamically through the Dynamic Host Configuration Protocol (DHCP).

  • Page 38: Modifying The Fixed Ip Address

    CD820 & (I)FD820 Series 6.3.1.2 Modifying the fixed IP address The factory default IP address is in the 10.x.x.x range.  To modify the camera's fixed IP address On the System tab, click in the menu on the left. Network In the Network submenu, select Basic Select...

  • Page 39: Advanced Settings

    System Settings 6.3.1.4 Advanced settings Web Server port The HTTP port can be any port other than the default port, 80. If the port is changed, the user must be notified of the change for connections to be successful. For example, if the administrator changes the HTTP port of a camera with an IP address of 192.168.0.100 from 80 to 8080, the user must type in the address http://192.168.0.100:8080 instead of http://192.168.0.100.

  • Page 40: Qos

    CD820 & (I)FD820 Series 6.3.2 System > Network > QoS DiffServ and QoS Differentiated Services (DiffServ, or DS) is a method for adding Quality of Service (QoS) to IP networks. In routed networks, critical network traffic such as video and audio streams, which require a relatively uninterrupted flow of data, can get blocked due to other traffic.

  • Page 41: Snmp

    System Settings 6.3.3 SNMP System > Network > SNMP With the Simple Network Management Protocol (SNMP), part of the internet protocol suite, the CD/(I)FD820 can be monitored and managed remotely by a network management system. SNMP v1/v2 To enable the version of SNMP to use, select the appropriate check box. Read Community Specify the community name that has read-only access to all supported SNMP objects.

  • Page 42: Upnp

    CD820 & (I)FD820 Series Trap option A Warm Start SNMP trap signifies that the SNMP device - that is, the CD/(I)FD820, reinitialises itself by performing a software reload, such that its configuration is unaltered. Remember to click the button, after modifying settings on this page. Note: Save 6.3.4...

  • Page 43: Ddns

    System Settings DDNS System > DDNS The Dynamic Domain Name System (DDNS) allows a DNS name to be constantly synchronised with a dynamic IP address. In other words, it allows those using a dynamic IP address to be associated with a static domain name. Dynamic Network Services Inc.

  • Page 44: Mail

    CD820 & (I)FD820 Series Mail System > Mail (example settings) On the Mail page, administrators can configure SMTP settings for sending an e-mail via the Simple Mail Transfer Protocol (SMTP) when an alarm is triggered. SMTP is a protocol for exchanging e-mail messages between servers.

  • Page 45: Ftp

    System Settings System > FTP Administrators can configure the camera to send messages to a specific File Transfer Protocol (FTP) site when an alarm is triggered. For FTP server details, contact your network administrator or network service provider, or install FTP software on a PC on the same network as the camera. ...

  • Page 46: Http

    CD820 & (I)FD820 Series HTTP System > HTTP An HTTP Notification server can listen for notification messages from IP cameras triggered by events. Alarm triggered and motion detection notifications can be sent to the specified HTTP server. See also Application, Motion Detection, and Tampering for HTTP Notification settings. ...

  • Page 47: Application

    System Settings Application System > Application The CD/(I)FD820 provides one digital alarm input and one digital alarm output to be used with an alarm and its specified trigger actions. On the Application page, administrators can set the active state of the digital input and output (I/O), enabling the camera to trigger an alarm when the state of the alarm connector changes.

  • Page 48: Triggered Action

    CD820 & (I)FD820 Series Alarm Output The alarm output can be enabled under Triggered Action. Select Output high or Output low as the normal alarm status according to the current alarm application. 6.8.1 Triggered Action System > Application > Triggered Action The actions detailed in this section can be set to be triggered when an alarm occurs.
  • Page 49 System Settings Send HTTP notification An HTTP Notification Server can listen for notification messages from IP cameras. The CD/(I)FD820 can send alarm- and motion detection-triggered notifications to the server selected from the HTTP address list.  To enable the sending of HTTP notifications Select Send HTTP notification Click to open the...

  • Page 50: Specifying File Name Conventions

    CD820 & (I)FD820 Series 6.8.2 Specifying file name conventions System > Application > Alarm pin# status > File name The File Name text box allows users to specify the file conventions for captured images. The following options are available for naming image files. File name ...

  • Page 51: Motion Detection

    System Settings Motion Detection System > Motion detection The Motion Detection function enables the camera to trigger an alarm when motion in a specified area reaches or exceeds a configured sensitivity threshold value.  To enable the Motion Detection alarm On the System tab, click in the menu on the left.

  • Page 52: Motion Detection Area

    CD820 & (I)FD820 Series Time interval (sec) [0-7200]  The default interval is 10. This value is the duration in seconds between each detected motion. Under Triggered Action, select to activate the Alarm Output Enable alarm output configuration. Under Triggered action, select the desired trigger actions that are to be performed in the event of an alarm.

  • Page 53: Motion Detection Window

    System Settings 6.9.2 Motion detection window The Motion window appears when Motion Detection is turned on and displays the configured motion detection threshold level. The amount of motion currently being detected is shown as a blue graph line relative to the motion detection threshold level. The configured motion detection threshold Peaks rising above the set motion detection level...

  • Page 54: Network Failure Detection

    CD820 & (I)FD820 Series 6.10 Network Failure Detection System > Network failure detection Ping request The network failure detection function enables the CD/(I)FD820 to test the connection between the camera and a target host on the network. The camera can ping the remote machine - that is, send data packets to it, with configurable intervals to determine if it is accessible and responding.

  • Page 55: Tampering

    System Settings 6.11 Tampering System > Tampering On the Tampering page, administrators can enable the camera to trigger an alarm when changes to the physical state of the camera occur. The Tampering Alarm enables the camera to detect tampering actions - deliberate redirection of the camera, blocking, paint spraying, and lens covering - through video analysis and react to such events by sending out notifications or uploading snapshots to the specified destination(s).

  • Page 56: Storage Management

    CD820 & (I)FD820 Series 6.12 Storage Management System > Storage management You can implement local recording to the Micro SD/SDHC card up to 32 GB. On the Storage Management page, administrators can view capacity information of the Micro SD/SDHC card and a recording list with all the recording files that are saved on the memory card.

  • Page 57: Device Information

    System Settings Device information The Device information section of the Storage Management page shows: The type of storage card  The amount of free space available on the card  The total amount of storage on the card  Status - whether or not there is a card in the camera's Micro SD slot ...

  • Page 58: Recording

    CD820 & (I)FD820 Series 6.13 Recording System > Recording Recording schedules Administrators can configure up to 10 recording schedules that meet the surveillance requirements. Recordings are stored on the Micro SD/SDHC card. Select to terminate the recording function - that is, if no scheduled recording is ...

  • Page 59: File Location

    System Settings 6.14 File Location System > File location The CD/(I)FD820 offers JPEG snapshot and MJPEG recording functionality. Users can specify a storage location for the snapshots and live view web recordings. The default storage location is C:\. For users with a Windows 7 operating system, it is required to log on as an Administrator Note: to configure the Snapshot and Web Recording function.

  • Page 60: Iris Adjustment (Fd820)

    CD820 & (I)FD820 Series 6.15 Iris Adjustment (FD820) System > Iris Adjustment The CD/(I)FD820's DC auto iris lens can adjust to varying light levels to produce the best picture in the given lighting conditions. On the Iris Adjustment page, the user can set the auto iris to the desired level of brightness.

  • Page 61: View Information

    System Settings 6.16 View Information Via the View information option in the left-hand pane, administrators can access the camera log file, display user information, and get an overview of the camera parameters and their current values. 6.16.1 Log file System > View information > Log file The system log provides useful information about configuration and connections after system launch.

  • Page 62: User Information

    CD820 & (I)FD820 Series 6.16.2 User Information System > View information > User information The Administrator can view each added user’s login information and privileges. See also User (on page 30).  To view the list of user accounts On the System tab, click in the menu on the left, and then click ...

  • Page 63: Parameters

    System Settings 6.16.3 Parameters System > View information > Parameters The CD/(I)FD820 camera's parameters are stored in its configuration file.  To view the system parameters On the System tab, click on the menu on the left, and then click ...

  • Page 64: Factory Default

    CD820 & (I)FD820 Series 6.17 Factory Default System > Factory default The Factory default page enables administrators to reset the camera to the default factory settings.  To restore the default factory settings On the System tab, click in the menu on the left. Factory default Click Set Default...

  • Page 65: Software Version

    System Settings 6.18 Software Version System > Software version  To display the camera's software version On the System tab, click in the menu on the left.  Software version Version information displays in the web browser. Note that version numbers appearing in your web page may differ from the numbers shown in the example above.

  • Page 66: Software Upgrade

    In the Currently installed programs list, select , and then click Siqura Viewer Remove uninstall the existing Siqura Viewer. Reopen your web browser, log on to the CD/(I)FD820, and then allow the automatic download and installation of Siqura Viewer. Page 66...

  • Page 67: Maintenance

    System Settings 6.20 Maintenance System > Maintenance Administrators can use this page to export configuration files (.bin) to a specified location, for future use, for example, and upload an existing configuration file to the camera.  To export the configuration file On the System tab, click in the menu on the left.

  • Page 69: Streaming

    Streaming This chapter describes the Streaming tab which can be used to view and modify settings pertaining to video resolution, video compression mode, video protocol, audio transmission mode, and video masking. The Streaming tab can be accessed by administrators only. Note: In This Chapter Video Format ..............

  • Page 70: Video Resolution

    CD820 & (I)FD820 Series 7.1.1 Video resolution  To set up the video resolution for the CD/(I)FD820 On the Streaming tab, click in the menu on the left. Video format On the list, select a streaming format combination. Video Resolution For details about video resolution combinations, see Appendix: Video resolution.

  • Page 71: Video Compression

    Streaming Video Compression Streaming > Video Compression Administrators can select the appropriate video compression mode on the Video compression page.  To change MJPEG compression settings On the Streaming tab, click in the menu on the left. Video compression Set a value for the MPEG Q factor parameter. Range: [1...70].

  • Page 72: Video Stream Protocol

    On the Video Stream Protocol page, users can select a protocol for streaming media over the network to the web pages via the Siqura Viewer application. The protocols on this page only apply to streams going to a Siqura Viewer. Note:...

  • Page 73: Video Frame Rate

    Streaming Video Frame Rate Streaming > Video frame rate On the Video frame rate page, the administrator can set the MJPEG, H.264-1, and H.264-2 frame rate - that is, the number of frames per second. The default setting of MJPEG frame rate is 30 fps. The setting range is from 1 to 30 fps.

  • Page 74: Video Mask

    CD820 & (I)FD820 Series Video Mask Streaming > Video mask The video mask function aims to avoid any intrusive monitoring. The CD/(I)FD820 supports up to 5 privacy masks.  To add a mask On the Streaming tab, click in the menu on the left. Video mask Under Active Mask Function, select a mask check box.

  • Page 75: Audio

    Both µ-LAW and A-LAW imply 64 kbps. However, µ-LAW and A-LAW use different compression formats. While higher bit rates allow for better audio quality, they also require more bandwidth. Click Save CD820 series cameras support Audio in only. Note: Page 75...

  • Page 77: Camera

    Camera From the Camera tab, Administrators and users with the camera control permission can view a live video stream and configure camera parameters. After making changes in any section in the pane on the left, click the SET button Note: to confirm the new settings and see the effect of your changes in the camera view.

  • Page 78: Exposure

    CD820 & (I)FD820 Series Exposure FD820: Camera > Exposure Exposure is the amount of light received by the image sensor and is determined by the width of iris adjustment (lens diaphragm), the amount of exposure by the sensor (shutter speed), and other exposure parameters.

  • Page 79: Manual Mode

    Camera 8.1.2 Manual mode Fixed shutter In this mode, the fixed shutter speed can be specified manually. The shutter speed range is from 1/10000 to 1 (1/1.5) sec. with 19 (18) options. Users can select a suitable shutter speed according to the ambient illumination. White Balance Camera >...

  • Page 80: Picture Adjustment

    CD820 & (I)FD820 Series Picture Adjustment Camera > Picture Adjustment Brightness Users can set the brightness of the image by selecting a value ranging from -12 to +13. To increase video brightness, select a higher number. Sharpness The sharpness value controls the clarity of detail perceived in an image. A higher sharpness value may enhance the edges of objects and produce a clearer image.

  • Page 81: Digital Zoom

    Camera Digital Zoom Camera > Digital Zoom If digital zoom is enabled, users can rotate the mouse wheel in full screen mode to zoom in and out. Digital zoom is adjustable from x2 to x8. IR Function (IFD820 and FD820) Camera >...

  • Page 82: Wdr Function

    CD820 & (I)FD820 Series WDR Function Camera > WDR Function WDR function The wide dynamic range (WDR) function automatically adjusts settings and varies the exposure for different objects in the camera scene in order to display detail in the darker areas of an image without saturation in the brighter parts.

  • Page 83: Appendix: Install Upnp Components

    Appendix: Install UPnP components To access the CD/(I)FD820 from your computer through UPnP, the UPnP networking service must be installed on your machine.  To install the UPnP components On the Windows , click Start Menu Control Panel Double-click Add or Remove Programs In the Add or Remove Programs window, click Add/Remove Windows Components From the Components list, select...

  • Page 85: Appendix: Delete The Existing Siqura Viewer Software

    Appendix: Delete the existing Siqura Viewer software Viewing camera images in the CD/(I)FD820 Web pages requires Siqura Viewer software. You are strongly advised to remove a previous installation of Siqura Viewer from your computer before initial access to the camera over the network or when you encounter an "A new version is available"...

  • Page 87: Appendix: Set Up Internet Security

    Appendix: Set Up Internet Security If ActiveX control (Siqura Viewer) installation is blocked, set the Internet security level to default or change the ActiveX controls and plug-ins settings.  To set the Internet Security level to default Start Internet Explorer (IE).

  • Page 89: Appendix: Video Resolution

    Appendix: Video resolution When setting up the camera's video resolution, refer to the following tables for possible combinations of settings. To configure these settings, go to the , and then select Streaming menu Video format In This Chapter Quad streams ..............89 Triple streams ..............
  • Page 90 CD820 & (I)FD820 Series Page 90...
  • Page 91 Appendix: Video resolution Page 91...
  • Page 92 CD820 & (I)FD820 Series Page 92...

  • Page 93: Triple Streams

    Appendix: Video resolution Triple streams Page 93...
  • Page 94 CD820 & (I)FD820 Series Page 94...

  • Page 95: Dual Streams

    Appendix: Video resolution Dual streams Single stream Page 95...
