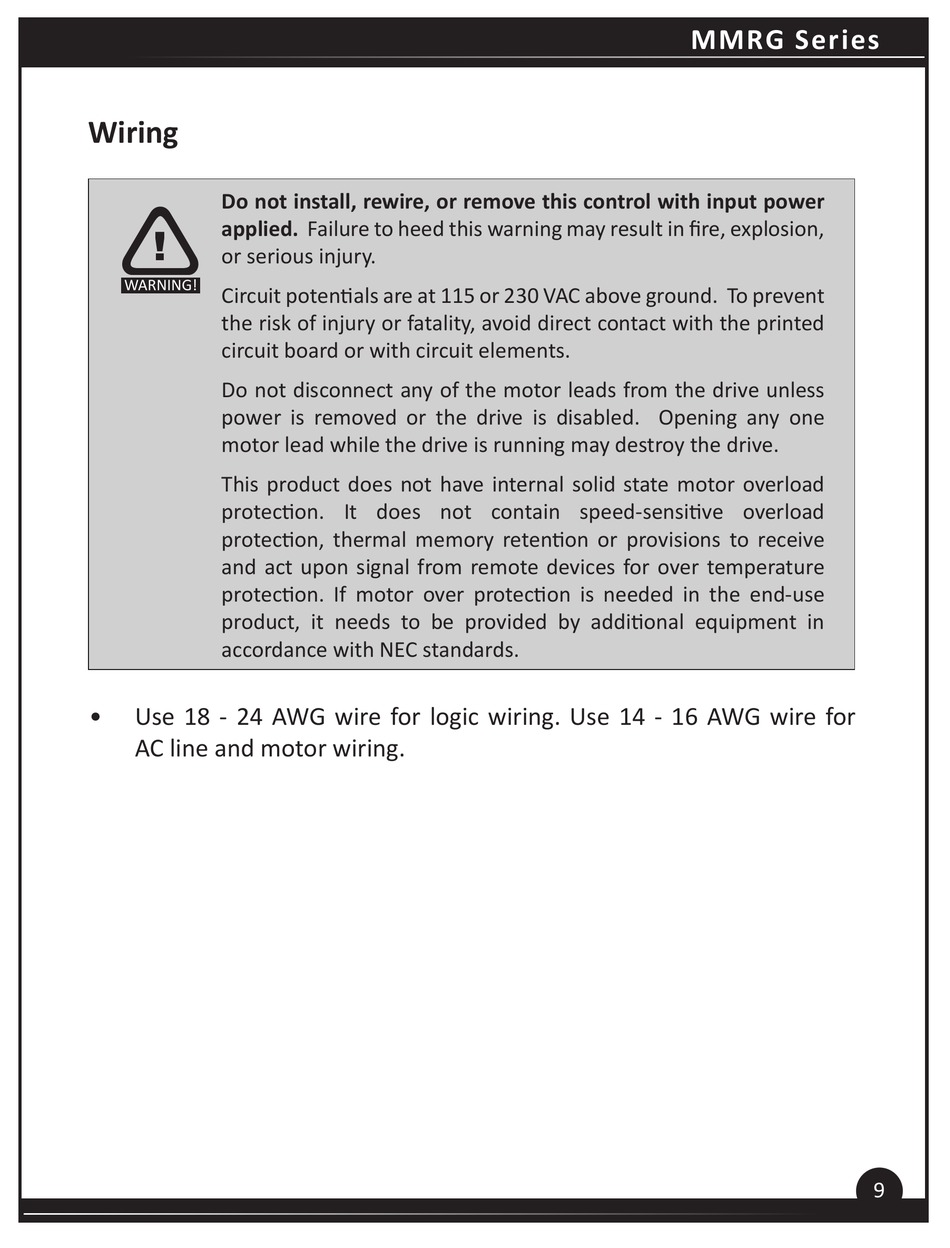

Wiring

Do not install, rewire, or remove this control with input power

applied. Failure to heed this warning may result in fire, explosion,
!
or serious injury.
WARNING!
Circuit potentials are at 115 or 230 VAC above ground. To prevent
the risk of injury or fatality, avoid direct contact with the printed
circuit board or with circuit elements.
Do not disconnect any of the motor leads from the drive unless
power is removed or the drive is disabled. Opening any one
motor lead while the drive is running may destroy the drive.
This product does not have internal solid state motor overload
protection. It does not contain speed-sensitive overload
protection, thermal memory retention or provisions to receive
and act upon signal from remote devices for over temperature
protection. If motor over protection is needed in the end-use
product, it needs to be provided by additional equipment in
accordance with NEC standards.
• Use 18 - 24 AWG wire for logic wiring. Use 14 - 16 AWG wire for
AC line and motor wiring.
