Minarik M2-D Quick Start Manual

Minarik M2-D Quick Start Manual

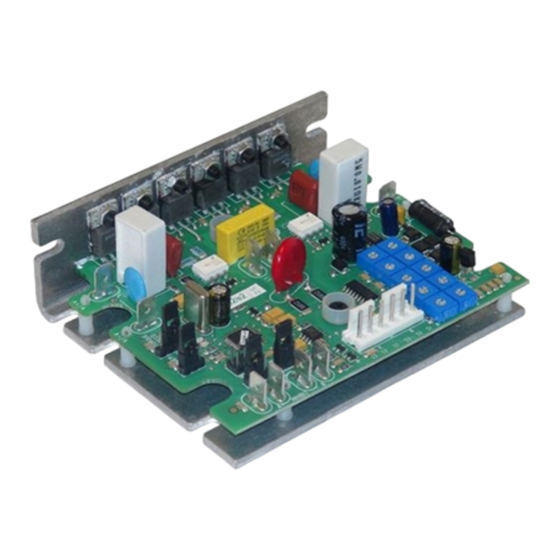

Dual motor control scr dc drive

Advertisement

Quick Links

D I M E N S I O N S
D501
3.175 [80.7]
3.175 [80.7]
R501
2.43 [61.7]
C510
J502
J503
1
180 90
180 90
J504
.675 [17.2]
A -- INHIBIT -- B
S P E C I F I C A T I O N S
Input Voltage +/- 10%, 50/60 Hz
Output Voltage (VDC)
Maximum Continuous Output from each side (Amps)
Maximum Total output from both sides (Amps)
HP Rating for each side
Maximum Total HP rating of both sides
Form Factor
* Heatsink (part number 223-0159) is required if one side provides more than 5A or the total output of both
sides is more than 6.5A.
Q502
Q504
Q503
D502
M
IC502
IC503
A B
U1
J505
J507
J506
A-B
S3
S2
S1
S3
S2
S1
* Without Heatsink
* With Heatsink
115 VAC
115 VAC
230 VAC
0 - 90
0 - 90
0 - 180
10
5
5
11.5
6.5
6.5
1/15 - 1
1/15 - 1/2
1/8 - 1
1 1/8
5/8
1 1/4
1.37
1.37
Q U I C K
.186 [5]
6 PLACES
MOTOR A
FUSE
MASTER
POWER
SWITCH
LINE
VOLTAGE
INPUT
115 VAC
or
230 VAC
Motor Connections
M2-D drives supply motor voltage from A+ and A- terimnals. It is assumed that when A+ is
positive with respect to A-, the motor will rotate clockwise (CW) while looking at the output of
the shaft protruding from the front of the motor. If this is opposite of the desired rotation,
reverse the wiring of the A+ and A- terminals.
230 VAC
Power Input
Connect the AC power leads to terminals L1 and L2, or to a double-pole single-throw master
0 - 180
power switch (recommended). Suitable for use on a circuit capable of delivering not more than
10
5000 rms symetrical Amperes, 240 Volt maximum.
11.5
1/8 - 2
Line Fuse
2 1/4
If 115 VAC input line is used, wire an external line fuse in the hot leg between the stop switch
(if installed) and the L1 terminal. If 230 VAC input is used, fuse both legs.
Speed Potentiomenter Connections
Speed adjustments are supplied by speed potentiometers connected to J507 and J506
(Factory supplied pot kit includes two sets of potentiometer hardware. Part number: 202-0112).
D u a l M o t o r C o n t r o l S C R D C D r i v e
S T A R T
G U I D E
C O N N E C T I O N S
Q502
Q504
D501
Q503
M
R501
IC502
IC503
C510
J502
A B
U1
J503
1
180 90
180 90
J505
J504
J507
J506
A -- INHIBIT -- B
A-B
S3
S2
S1
S3
S2
S1
SPEED A
RATIO OR SPEED B
POTENTIOMETER
POTENTIOMETER
CLOSE TO INHIBIT DRIVE
M2-D
MOTOR B
D502
