MMRG Series

RUN/JOG Switch - Inhibit Connection

Use a single pole, two position switch for the RUN/JOG switch, and a
single pole, normally closed, momentary operated pushbutton for the
JOG pushbutton.
Connect the RUN/JOG switch and JOG pushbutton to the inhibit terminals
as shown in Figure 22. The motor coasts to a stop when the RUN/JOG
switch is set to JOG. Press the JOG pushbutton to jog the motor. Return
the RUN/JOG switch to RUN for normal operation.
JOG
PUSHBUTTON
RUN
JOG
INHIBIT
TERMINALS

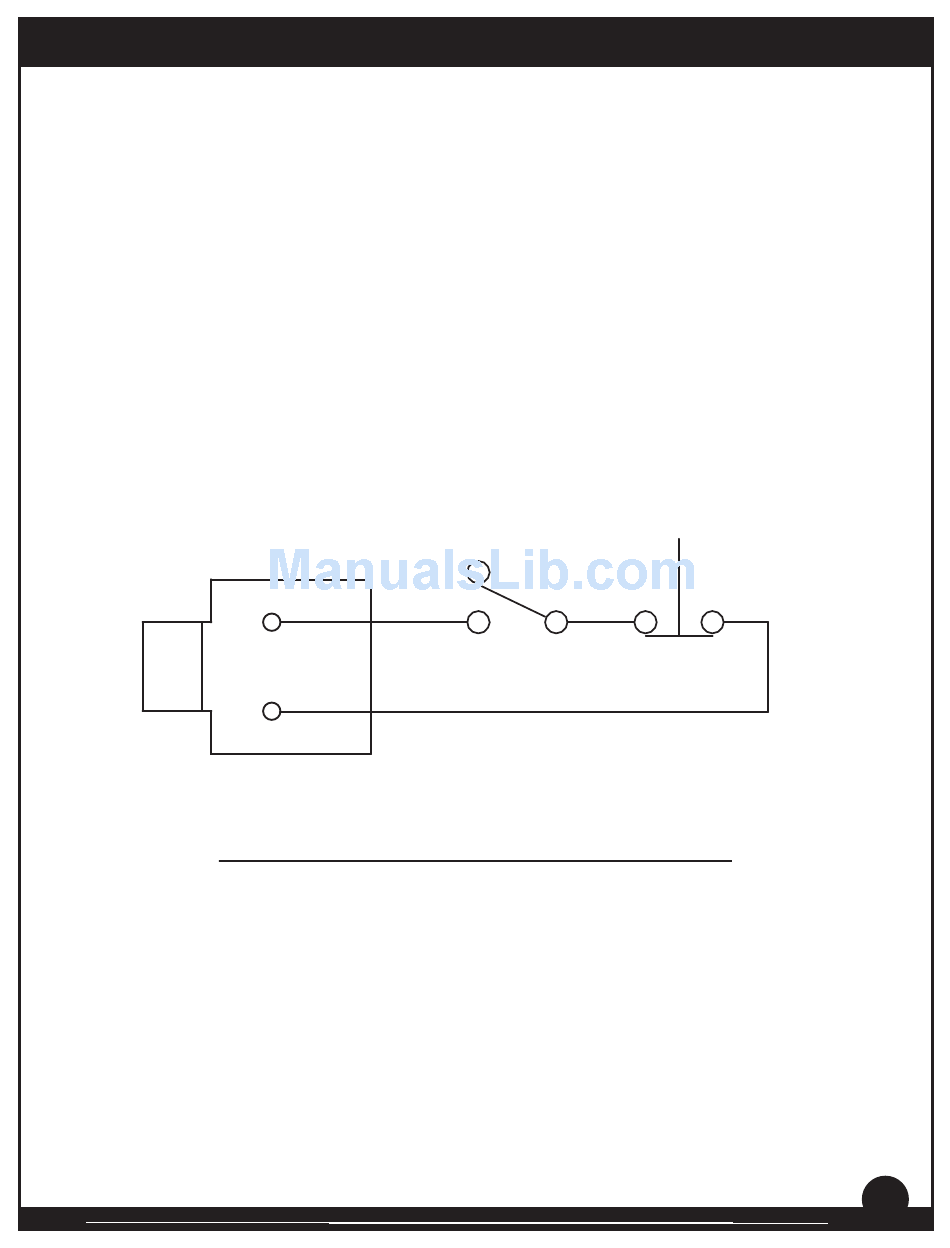

Figure 22. RUN/JOG Switch - Inhibit Connection
35
