Converter IP GUI. A notable difference is the multi-band and complex/real settings available
in the crossbar setting shown in
X-Ref Target - Figure 5-3
RFSoC Data Converter Evaluation Tool User Guide
UG1287 (v2018.2) October 1, 2018
Chapter 5: Evaluation Tool System Configuration using the GUI
Figure 5-4.

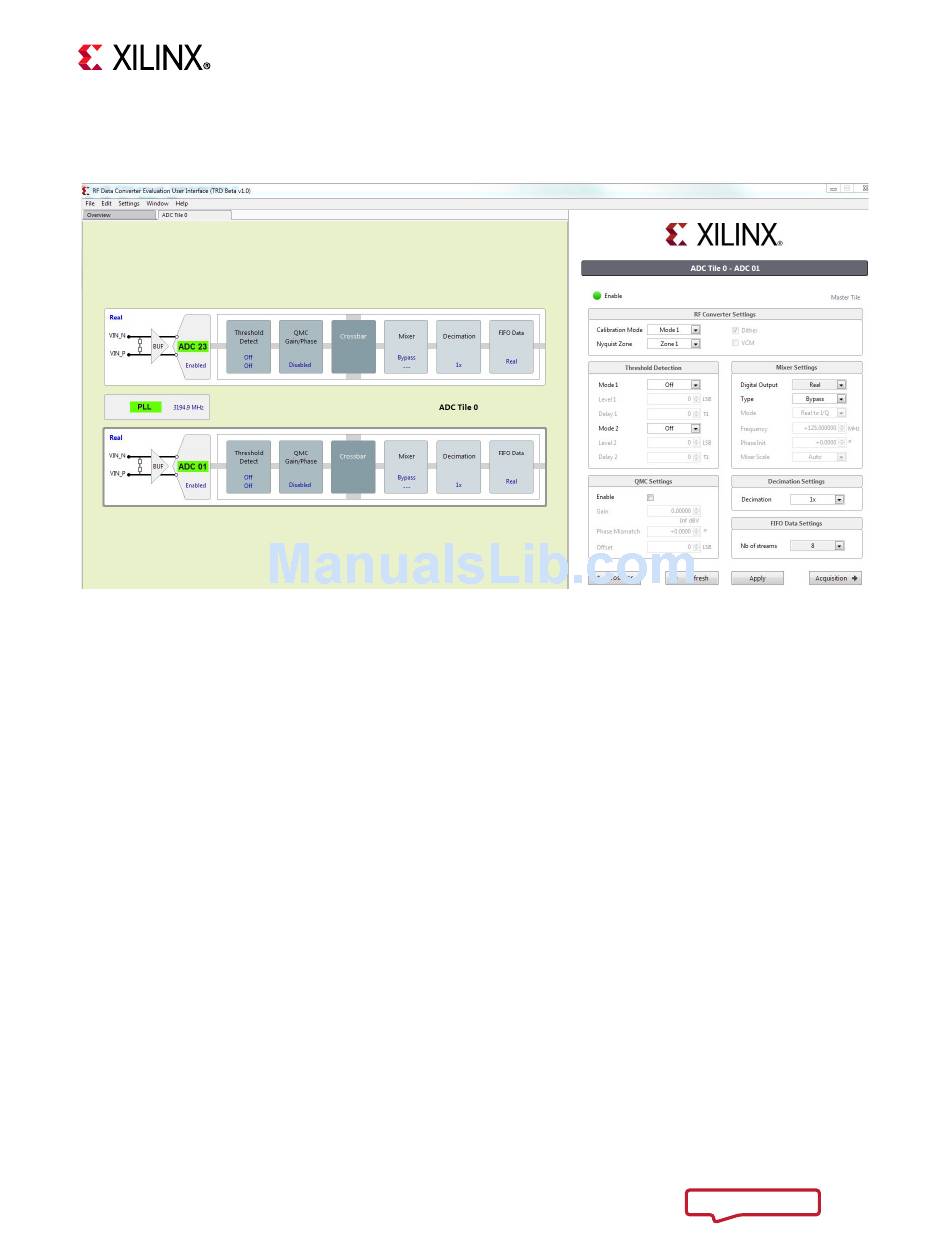

Figure 5-3: ADC Configuration
