External Component Configuration

In the overview tab, when clicking on Clock Settings, the external PLL can be configured
with a set of predefined frequencies as shown in
X-Ref Target - Figure 5-1
When clicking on Power Settings, the DAC power mode can be changed between 20 mA
and 32 mA.
RFSoC Data Converter Evaluation Tool User Guide
UG1287 (v2018.2) October 1, 2018
Chapter 5: Evaluation Tool System Configuration using the GUI

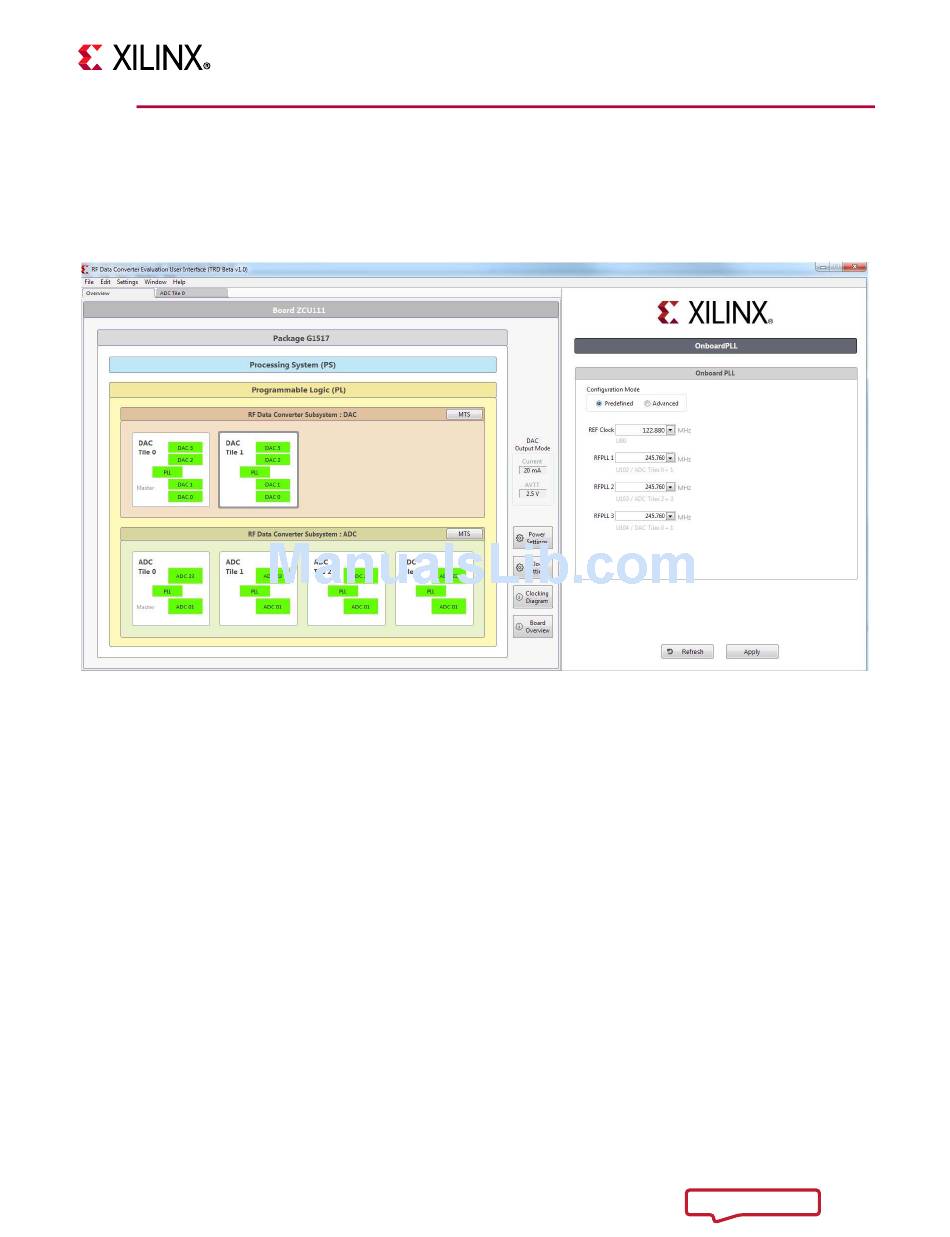

Figure 5-1: Overview of External PLLs
