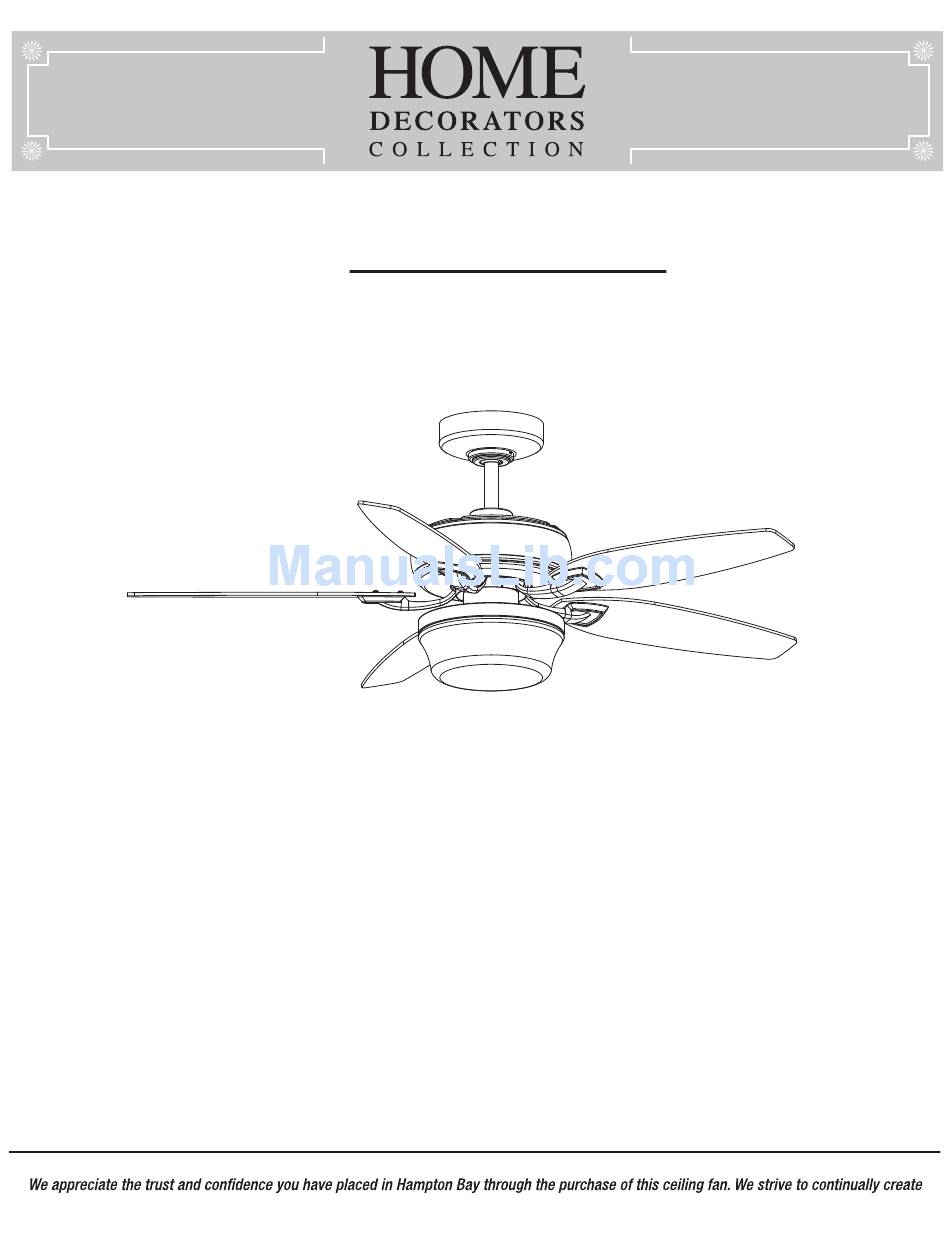

USE AND CARE GUIDE
FC132-BJRL/FC140-BJRL 52/56-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for Home Depot FC132-BJRL
Summary of Contents for Home Depot FC132-BJRL
- Page 1 Model # Item # UL Model # Model # USE AND CARE GUIDE FC132-BJRL/FC140-BJRL 52/56-INCH CEILING FAN Questions, problems, missing parts? Before returning to the store call Hampton Bay Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS THANK YOU quality products designed to enhance your home.
-
Page 2: Table Of Contents
WARNING: To Reduce The Risk Of Fire Or Electric Shock, This FC132-BJRL Fan Should Only Be Used With Fan Speed Control After making electrical connections, spliced conductors should Model No. FYDC759 - A1,the FC140-BJRL Should Only Be Used be turned upward and pushed carefully up into outlet box. -
Page 3: Warranty
Warranty Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. -
Page 4: Pre-Installation
Pre-Installation (continued) Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL TOOLS REQUIRED Phillips Flat blade Adjustable Electrical Wire cutter screwdriver screwdriver wrench tape / Stripper Step ladder HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Mounting Screw ST4.8... - Page 5 Item # 1000*****/1000***** Pre-Installation (continued) Item # FC132-BJRL/FC140-BJRL PACKAGE CONTENTS Part Decription Quantity Part Decription Quantity Mounting bracket Light kit tter assembly Ball/downrod assembly Blade bracket Canopy Blade Canopy ring Remote control &Receiver assembly &include 8 plastic wire nuts and 2 batteries...
-
Page 6: Installation
Do not use a plastic outlet box. but no ceiling joist you may need an installation hanger bar The illustrations below show three different ways to mount the as shown above (available at any Home Depot store). outlet box. Outlet Box... -
Page 7: Assembly
Assembly - Standard Ceiling Mount Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL Preparing for routing the wires □ Remove the hitch pin (GG) and lock pin (HH) from the downrod (B). □ Loosen the two set screws (II) from the fan motor assembly (F) coupling. - Page 8 Assembly - Hanging the Fan Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL Attaching the fan to the electrical box WARNING: To reduce the risk of re, electric shock, or other personal injury, mount the fan to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.
- Page 9 Assembly -Hanging the Fan (continued) Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL Making the electrical connections WARNING: To avoid possible electrical shock, ensure the electricity is turned off at the main fuse box before wiring. WARNING: To avoid possible electrical shock, ensure the electricity is turned off at the circuit breaker or main fuse box before wiring.
- Page 10 Assembly -Hanging the Fan (continued) Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL Wrapping the extra wire Mounting the fan-motor assembly (standard mount) NOTE Follow this step ONLY if you did not cut the extra length off from the WARNING: When using the standard ball/downrod mounting, the tab in the wires coming from the ceiling fan.
- Page 11 Assembly - Attaching the Fan Blades Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL Attaching the blades to the blade Fastening the blade assemblies to brackets the motor □ □ Attach a blade (I) to a blade bracket (H) by inserting screws...
- Page 12 Assembly - Installing the Light Kit Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL Attaching the light kit tter assembly Attaching the glass bowl CAUTION: To reduce the risk of electric shock, disconnect WARNING: Do not overtighten when installing the shade into the the electrical supply circuit to the fan before installing the light kit.
-
Page 13: Operation
Operation Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL Installing the batteries CAUTION: Do not use with a wall light dimmer switch. NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the remote control. - Page 14 Item # 1000*****/1000***** Operation(continued) Item # FC132-BJRL/FC140-BJRL NOTE: The fan has memory function , it will resume the speed setting on the fan prior to the power being turned off. And The LED display will show the founction for 4 seconds after the button is released.
-
Page 15: Care And Cleaning
Care and Cleaning Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL □ Check the support connections, brackets, and blade attachments twice a year. Ensure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. -
Page 16: Troubleshooting
Troubleshooting Item # 1000*****/1000***** Item # FC132-BJRL/FC140-BJRL Problem Solution □ The fan will not start. Check the main and branch circuit fuses or breakers. □ Check the line wire connections to the fan and switch wire connections in the switch housing.
