V20210253
CFN-1053
Instruction Manual
Read Completely Before Installation
& Use and Keep for Future Reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFN-1053 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Depot CFN-1053

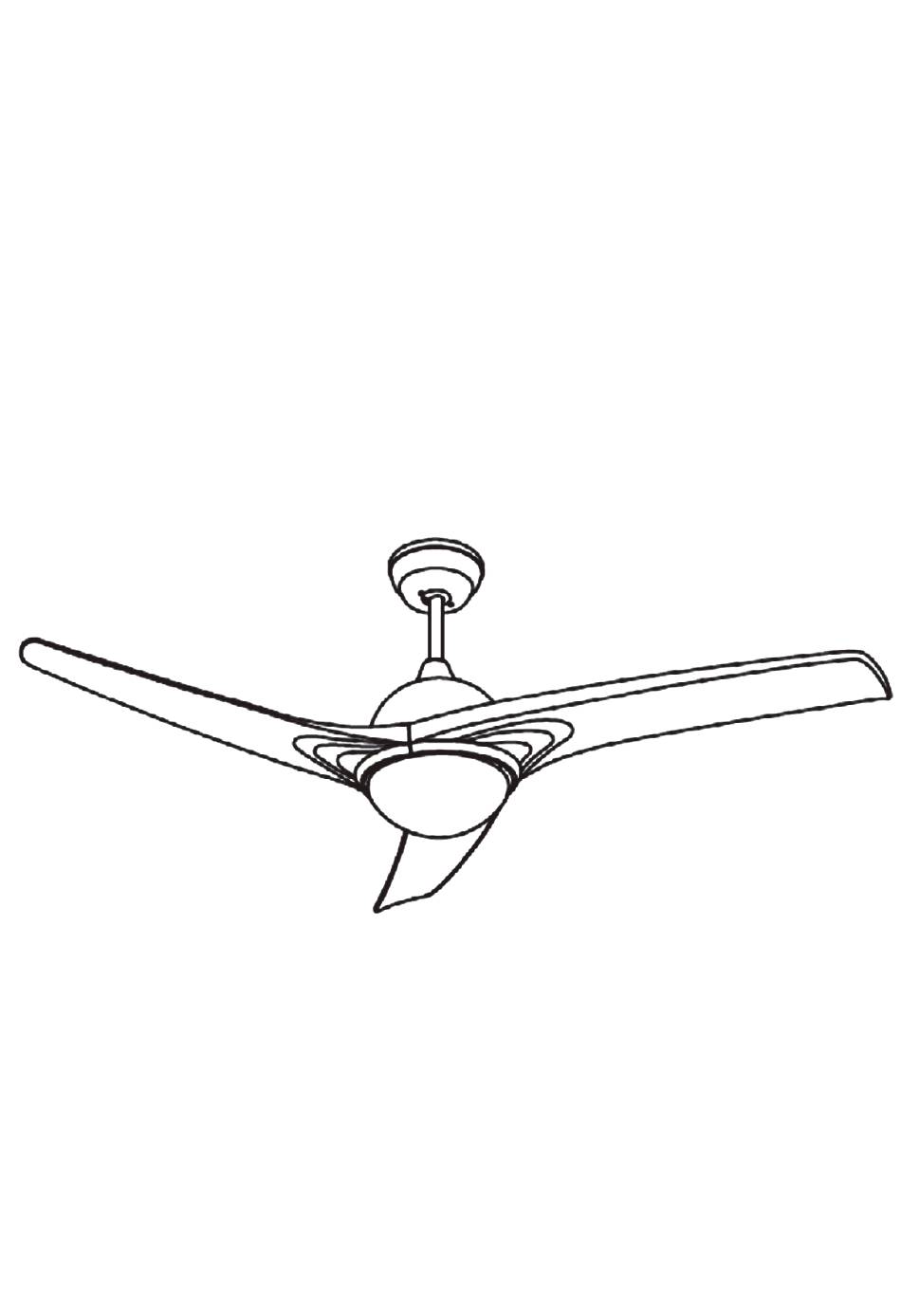

  • Page 1 V20210253 CFN-1053 Instruction Manual Read Completely Before Installation & Use and Keep for Future Reference...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ·························································································· 1 Package Contents ················································································· 2 Safety Information·················································································· 3 Preparation ·························································································· 4 Initial Installation ··················································································· 5 Downrod Mounting ················································································ 5 Circuit Connections ··············································································· 6 Canopy and Cover Installation ································································· 7 Fan Blade Installation ············································································· 7 Light Installation ··················································································· 8 Color Temperature Adjustment ·································································...
  • Page 3: Package Contents

    PACKAGE CONTENTS A. Fan Blades (×3) B. Ceiling Mounting Bracket C. Canopy D. Canopy Cover E. Downrod F. Coupling Cover G. Fan Motor Assembly H. Light Plate I. LED Light Kit J. Glass Shade K. Remote Control L. Receiver M. Mounting Screws (×4) Mounting Bolts (×2) Spring Washers (×4) Star Washers (×4)
  • Page 4: Safety Information

    SAFETY INFORMATION Warning! 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
  • Page 5: Preparation

    PREPARATION 1. Turn Off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death.
  • Page 6: Initial Installation

    INITIAL INSTALLATION Outlet Box Washers Ceiling Mounting Bracket Hook Mounting Screws/Bolts 120V Wires Step 1. Pass the 120V supply wires through the center hole in the ceiling mounting bracket. Step 2. Secure the ceiling mounting bracket to the outlet box with the provided mounting screws or bolts and spring or star washers.
  • Page 7: Circuit Connections

    CIRCUIT CONNECTIONS Again, ensure that the power has been cut before working with the wiring. Use the wire nuts provided Receiver with your fan. Ceiling Mounting Bracket Ensure there are no loose wires or connections, and secure connectors with electrical tape. Step 1.
  • Page 8: Canopy And Cover Installation

    CANOPY AND COVER INSTALLATION Outlet Box Ceiling Mounting Bracket Bolts Canopy Canopy Cover Step 1. Tuck all the connections neatly into the outlet box. Step 2. Slide the canopy up to the ceiling mounting bracket and place the key hole slots over the mounting screws or bolts on the bracket.
  • Page 9: Light Installation

    LIGHT INSTALLATION Step 1. Remove the pre-installed bolts on the fan motor assembly. Step 2. Feed the wire connectors through the middle of the light plate. Install the light plate onto motor assembly and secure it by replacing and retightening the bolts.
  • Page 10: Remote Control Operation

    REMOTE CONTROL OPERATION Install the remote control holder onto any wall or suitable flat surface using the two steel screws. Upon first use, connect the remote control to its receiver in the fan by pressing the emitter's "LI" and "Hi" button for 3 seconds. There should be a beep to announce that the remote has successfully connected to its receiver.
  • Page 11: Troubleshooting

    TROUBLESHOOTING Potential Problems Common Solutions Check fuses and/or circuit breakers and reset if needed. Cut off power to the fan and check its internal electrical connections. Fan blades Replace the remote control’s batteries. don't rotate Check that the fan cover is correctly placed and no bolt interfere with the movement of the blades.
