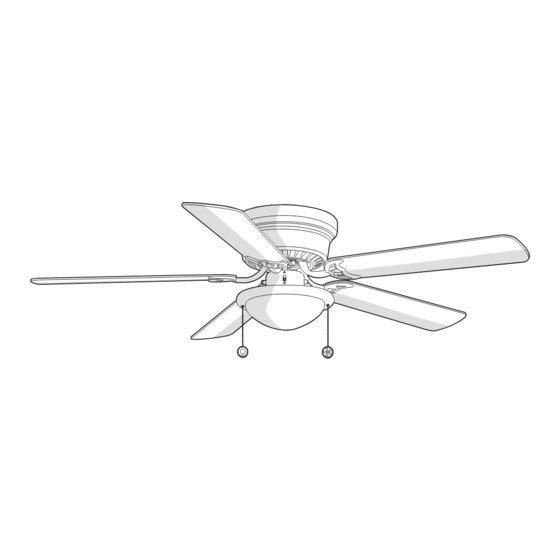

- Page 1 Item #550-073 Model #AL383-WH USE AND CARE GUIDE HUGGER 52 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store call Home Depot Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-877-527-0313 HOMEDEPOT.COM THANK YOU THANK YOU...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions ........... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Specifications ................Tools Required ................. Service Parts ..............Hardware Included .............. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has WARNING: To reduce the risk of electrical shock or fire, do been turned off at the circuit breaker or fuse box before not use this fan with any solid-state fan speed control device. beginning. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Blade attachment screw and fiber washer Plastic wire nut (not to scale) Mounting plate screw and lock washer (not to scale) Motor housing screw and lock washer (preassembled) Blade arm screw and lock washer Light kit mounting screw (preassembled) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting plate Blade arm Fan motor assembly Light kit Motor housing Glass shade Blade... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the outlet box. An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced. -
Page 8: Assembly
Assembly — Hanging the Fan Hanging the fan from the Attaching the mounting plate mounting bracket to the electrical box □ Carefully lift the fan motor assembly (B) and insert WARNING: To reduce the risk of fire, electric shock or the T section of the motor mounting plate (KK) into other personal injury, mount the fan only to an outlet box or the slot in the mounting plate (A). - Page 9 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White conductor WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
-
Page 10: Finishing The Fan Installation
Assembly — Hanging the Fan (continued) Attaching the motor housing Finishing the fan installation to the mounting plate □ □ Swing the motor assembly (B) up into position under Carefully lift the motor housing (C) onto the mounting the motor mounting plate (KK). Secure the motor plate (A), properly align the holes and tighten the mounting plate (KK) to the mounting plate (A) with the motor housing (C) with the four screws and lock... -
Page 11: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the blades to Fastening the blade the blade arms assemblies to the motor □ Attach the blades (D) to the blade arms (E) using the WARNING: To reduce the risk of personal injury, do not three blade attachment screws and fiber washers bend the blade arms (E) while installing, balancing the blades (AA). -
Page 12: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit to Installing the light bulb the switch housing and glass shade □ Install 1 x 60W (or CFL equivalent) Medium base bulb CAUTION: Before starting installation, disconnect the (not included). power by turning off the circuit breaker or removing the fuse at the fuse box. -
Page 13: Operation
Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Attach the two pull chains and fobs (HH) to the pull chains located on the switch housing (LL). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low and 4 pulls - Off. -
Page 14: Care And Cleaning
Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □... - Page 15 Troubleshooting (continued) Problem Problem Solution Solution □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
-
Page 16: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting plate Blade attachment screw and fiber washer Fan motor assembly Plastic wire nut Motor housing Mounting plate screw and lock washer Blade Motor housing screw and lock washer (preassembled) Blade arm Blade arm screw and lock washer Light kit... - Page 17 Questions, problems, missing parts? Before returning to the store call Home Depot Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use. AL383000001-A...
