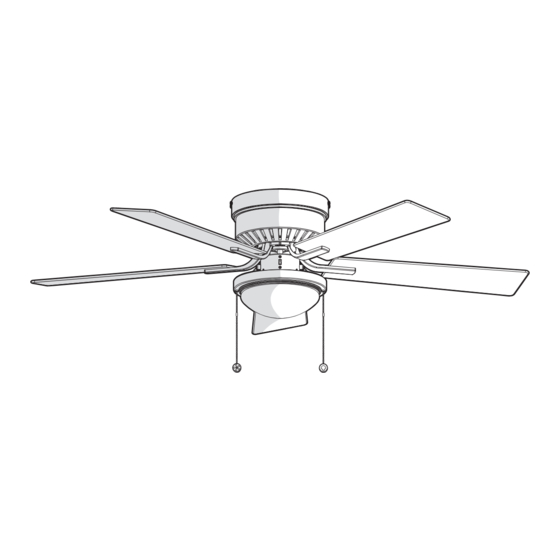

52 IN. HUGGER II
INDOOR CEILING FAN
We appreciate the trust and con dence you have placed in Home Depot through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
HOMEDEPOT.COM
your home improvement needs. Thank you for choosing Home Depot!
Item #1008 659 782
Model #RD4130AH-BN
1-877-527-0313
THANK YOU
1008 659 792
1008 659 791
1008 659 788
1008 659 785
RD4130AH-MWH
RD4130AH-GM
RD4130AH-ORB
RD4130AH-MBK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Depot HUGGER II RD4130AH-BN
Summary of Contents for Home Depot HUGGER II RD4130AH-BN
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Depot through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........Assembly . -
Page 3: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of 15 years after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is returned. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw and ber washer 9 Watt LED bulb Thumbscrews (spare) Pull chain and fob Mounting bar screw with lock washer...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting plate Blade arm Fan motor assembly Light kit Motor housing Glass shade Blade HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
-
Page 6: Installation
Installation MOUNTING OPTIONS Hanger Bar WARNING: To reduce the risk of re, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the outlet box. An outlet box commonly used for the support of lighting xtures may not be acceptable for fan support and may need to be replaced. -
Page 7: Assembly
Assembly — Hanging the Fan Attaching the mounting plate to the Hanging the fan from the mounting electrical box plate Carefully lift the fan motor assembly (B) and insert the T WARNING: To reduce the risk of re, electric shock or section of the mounting bar (HH) into the slot in the mounting other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and... - Page 8 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: To avoid possible electrical shock, be sure Neutral conductor electricity is turned off at the main fuse box before wiring. Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 9 Assembly — Hanging the Fan (optional) Single Switch Connections Dual Switch Connections On a single switch the fan and light can be turned on or off On a dual switch the fan and light can be turned on or off together.
- Page 10 Assembly — Hanging the Fan (continued) Attaching the motor housing to the Finishing the fan installation mounting plate Swing the motor assembly (B) up into position under the Carefully lift the motor housing (C) onto the mounting plate (A), mounting plate (A). Secure the mounting bar (HH) to the properly align the holes and tighten the motor housing (C) mounting plate (A) with the screws and lock washers (FF) with the four screws and lock washers (II) supplied.
- Page 11 Assembly — Attaching the Fan Blades Attaching the blades to the blade Fastening the blade assemblies to the arms motor Attach the blades (D) to the blade arms (E) using the three WARNING: To reduce the risk of personal injury, do not bend blade attachment screws and ber washers (BB).
- Page 12 Assembly — Installing the Light Kit Attaching the light kit to the switch Mounting the glass shades housing and installing the light bulbs Mount the glass shade (G) to the light kit (F) by unscrewing CAUTION: Before starting the installation, disconnect the partially the thumbscrews (DD) on the light kit (F).
-
Page 13: Operation
Operation Installation PULL CHAIN OPERATING INSTRUCTIONS Attach the two pull chains and fobs (EE) to the pull chains located on the switch housing (OO). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off. -
Page 14: Care And Cleaning
Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically. - Page 15 - Consult the dealer or an experienced radio/TV technician for help. Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM...
