This kit provides for the installation of the
blower and motor outside of the cabinet, such
as below the floor. Use this kit for indoor
remote installations only.
Note: A 3-1/4" x 10 transtion to 6" round is
required.
1
Step
Prepare
the Vent
3"
Blower Wire Box
Loosen
Screw
Blower Conduit
JXRB57 Kit
For Indoor Remote Blower Locations
Tools and Materials required:
• Pencil
• Measuring tape
• Drill with appropriate bits
• Nut driver
• Junction box
• Wire nuts
• Safety glasses
• 3-1/4" x 10" to 6" round transition.
• 3-1/4 x 10" duct, (or 6" round) sufficient length to reach
the outdoor wall cap or roof cap.
• Electrical cable and connectors, sufficient length to
connect the downdraft vent to the remote blower
location. 14-guage min. is recommended, must conform
to local codes.
Parts Supplied
Package of screws
Cover Plate

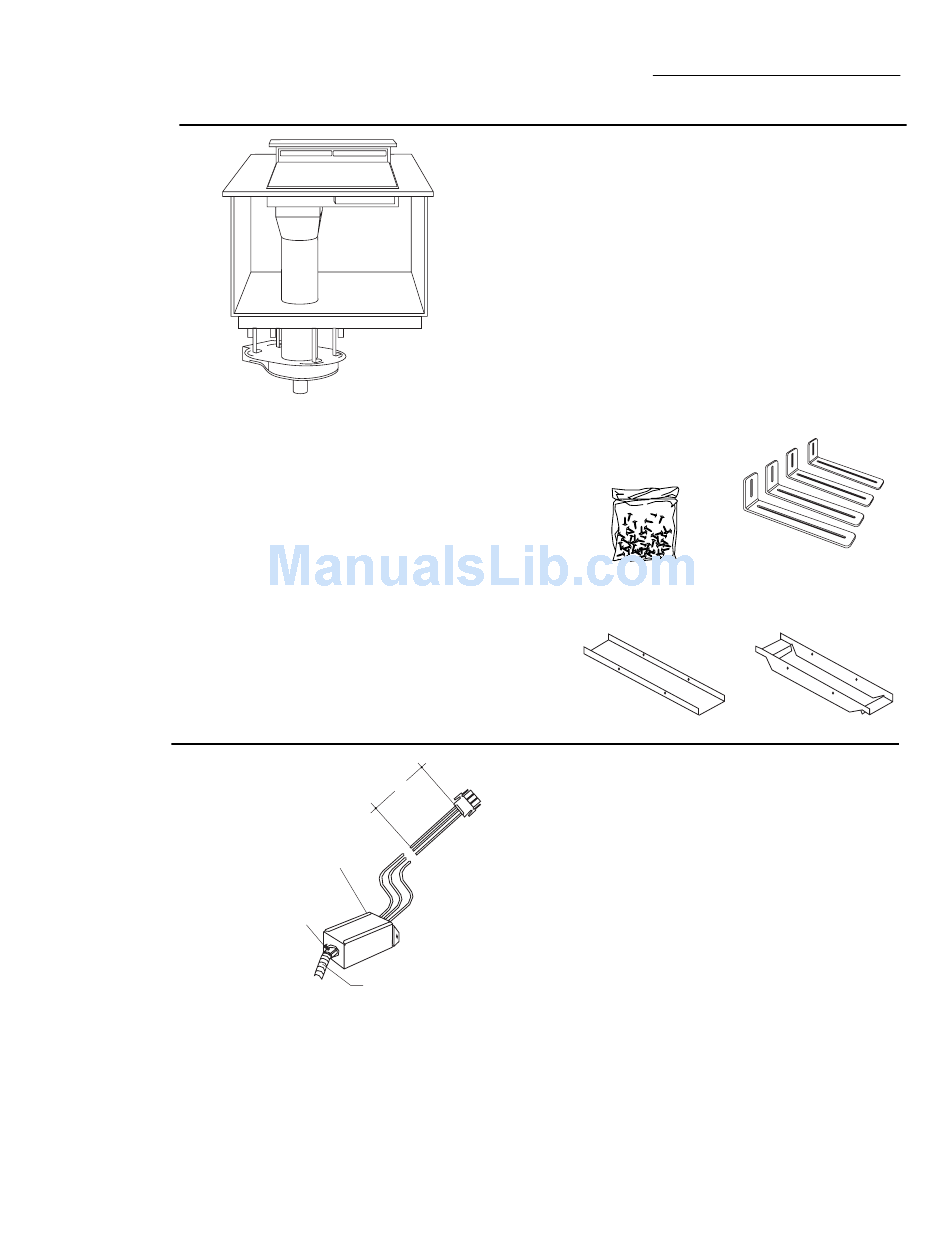

• Flatten the shipping box to use as a pad.
• Place the unit on its back onto the protec-
tive pad.
• Remove the wire box on the plenum.
• Cut the blower leads approximately 3" from
the plug on the end of the vent.
• Remove the blower conduit by loosening the
screw on the fitting.
• Set aside the 3" wire leads with plug, wire
box and screws.
Hanger Brackets
Outlet Plate
