Venting
Options
• The downdraft vent is shipped with the
• The blower outlet is sized for 3-1/2" x 10"
discharge outlet pointing straight down and
can be changed to the left or right side.
and can be transitioned to 6" round.
Installation Preparation
Downdraf t Vent Systems

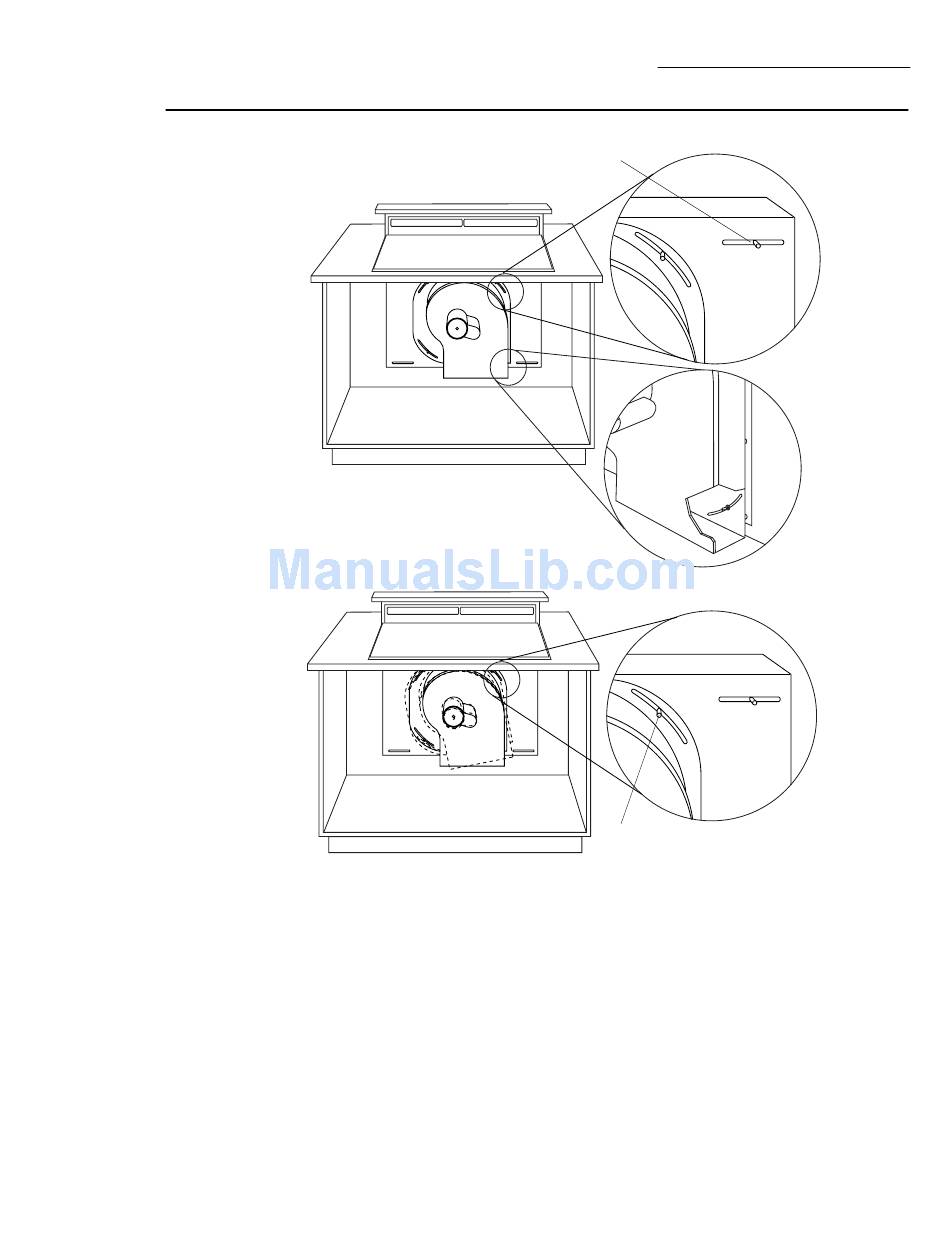

Loosen Screws
to Adjust
Blower Left
to Right
Nut
Location
Inside
the Blower
Discharge
Loosen Screws to Rotate
30° to Left or 30° to Right
30° Rotation Left or Right
Side to side adjustments:
The entire blower mounting plate can be
adjusted 3-1/2" to the left or right. This will
help to align vent discharge to house
ductwork.
30° Rotation
For even more flexibility, the entire blower
can be rotated up to 30° towards the left or
30° towards to right.
Discharge direction
The blower assembly may be removed and
turned 90° for a left or right side discharge.
11
