Remove
Packaging
WARNING
Power
FOR PERSONAL SAFETY:
Supply
Remove house fuse or open circuit breaker
before beginning installation.
Do not use an extension cord or adapter plug
with this appliance. Follow National electrical
codes or prevailing local codes and ordi-
nances.
This downdraft vent must be supplied with
120V, 60Hz., and connected to an individual,
properly grounded branch circuit, protected
by a 15 or 20 ampere circuit breaker or time
delay fuse.
Gas Cooktops
If this vent is installed in combination with a
Monogram gas cooktop, it may operate from
the same duplex outlet.
Electric Cooktops
If this vent is installed in combination with a
Monogram electric cooktop, the vent must
operate from a separate 120V outlet.
• A properly grounded 3-prong receptacle
– Locate the receptacle inside the cabinet on
10

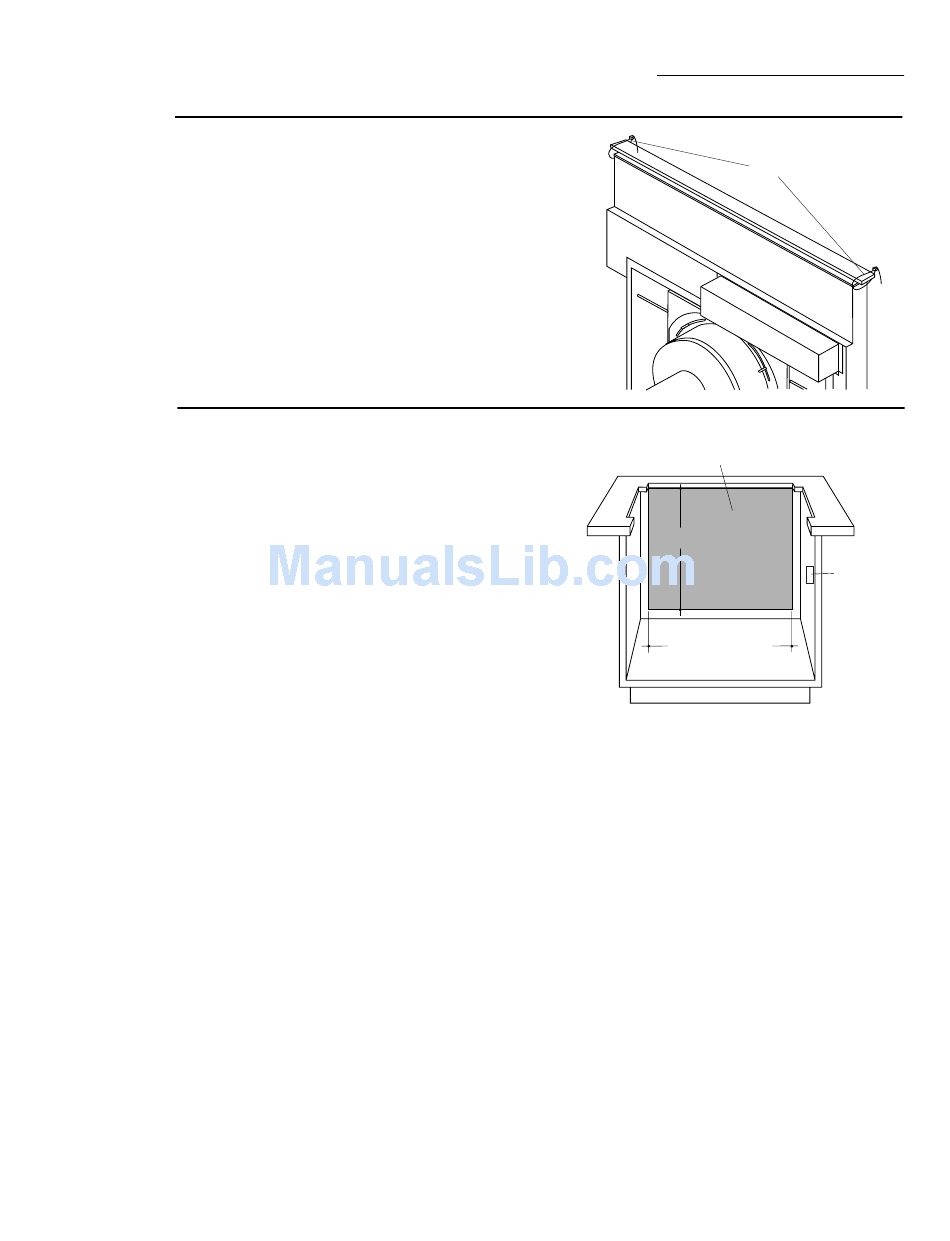

• Remove the shipping materials and the
carton, set carton aside. The carton can be
used as a pad when changing or adjusting
vent direction.
• Remove the plastic ties on both ends at the
top of the vent.
should be located within reach of the vents'
two foot power cord.
the right side wall. The receptacle cannot be
placed on the back of the cabinet wall where
it may interfere with the downdraft plenum.
See illustration.
Installation Preparation
Downdraf t Vent Systems
Do Not Locate Gas or Electrical
Connections Within Shaded Area
29-1/2"
34" for 36" Models
28-1/2" for 30" Models
IMPORTANT: (Please read carefully).
The power cord of this appliance is equipped
with a three-prong (grounding) plug which
mates with a standard three-prong grounding
wall receptacle to minimize the possibility of
electric shock. The customer should have the
wall receptacle and circuit checked by a
qualified electrician to make sure the recep-
tacle is properly grounded and has correct
polarity.
• Where a standard two-prong wall receptacle
is encountered, it is the personal responsibil-
ity and obligation of the customer to have it
replaced with a properly grounded three-
prong wall receptacle.
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
DO NOT USE AN EXTENSION CORD.
Plastic Ties
Electrical
Outlet
12" Above
Cabinet Floor
