Crestron infiNET EX CLC-FANDELVEX-W Installation Manual

CLC-FANDELVEX-W
in NET EX Fan Controller
®
Installation Guide

Description

The Crestron CLC-FANDELVEX-W is an in NET EX fan and light controller. The compact
®
design allows it to securely t in a fan canopy.
Refer to the following table for speci cations for the CLC-FANDELVEX-W.
SPECIFICATION
Current Ratings
Fan Load 120 Vac, 0.8 A, 60 Hz
Light Load 120 Vac, 200 W, 60 Hz
(100 W Max for CFL or LED Loads)
Load Types Dimmed incandescent, CFL, LED, tungsten,
electronic low voltage
NOTE: Do not connect to magnetic low-voltage
type loads.
Environmental
Temperature 32° to 104 °F (0° to 40 °C)
Humidity 10% to 90% RH (noncondensing)
The CLC-FANDELVEX-W has a multifunction ACQUIRE button and STATUS, LIGHT, and
FAN LEDs. Their functions are described below.
The ACQUIRE button:
• Allows the device to connect to the in NET EX network. Refer to the "Wireless
Communications" section for details.
• Press to toggle the dimming load between on and off.
• Press to exit Identify mode.
The STATUS LED:
• Illuminates green to indicate it is receiving power.
• Flashes green to indicate in NET EX acquire status.
• Flashes red to indicate error conditions.
NOTE: The green LED extinguishes after 1 minute. The red LED extinguishes
when the error is cleared.
The LIGHT LED:
• Illuminates to indicate that a command was received to turn on the light.
NOTE: The LIGHT LED extinguishes after 1 minute.
The FAN LED:
• Illuminates to indicate that a command was received to turn on the fan.
NOTE: The FAN LED extinguishes after 1 minute.

Additional Resources

Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest rmware updates. Use a QR
reader application on your mobile device to scan the QR image.
DETAILS

Installation

WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker or
fuse and test that the power is off before wiring!
WARNING: To reduce the risk of electric shock, install the CLC-FANDELVEX-W with an
isolating wall control or switch.
CAUTION: To reduce the risk of overheating and possible damage to other equipment,
do not install to control a receptacle.
NOTES: Observe the following points:
• Install and use this prodct in accordance with appropriate electrical codes and
regulations.
• A licensed electrician should install this product.
• Do not install in a damp or moist environment. This product is for indoor use only.
NOTE: Before using the CLC-FANDELVEX-W, ensure the device is using the latest
rmware. Check for the latest rmware for the CLC-FANDELVEX-W at
www . crestron . com / rmware. Firmware is loaded onto the device using Crestron
Toolbox™ software.
NOTE: Refer to the documentation for the fan for proper installation or disassembly and
reassembly.
NOTE: Using the fan's hardware controls, set the fan to high speed and the lights to on.
NOTE: Remove any pre-installed fan remote controller before installing the
CLC-FANDELVEX.

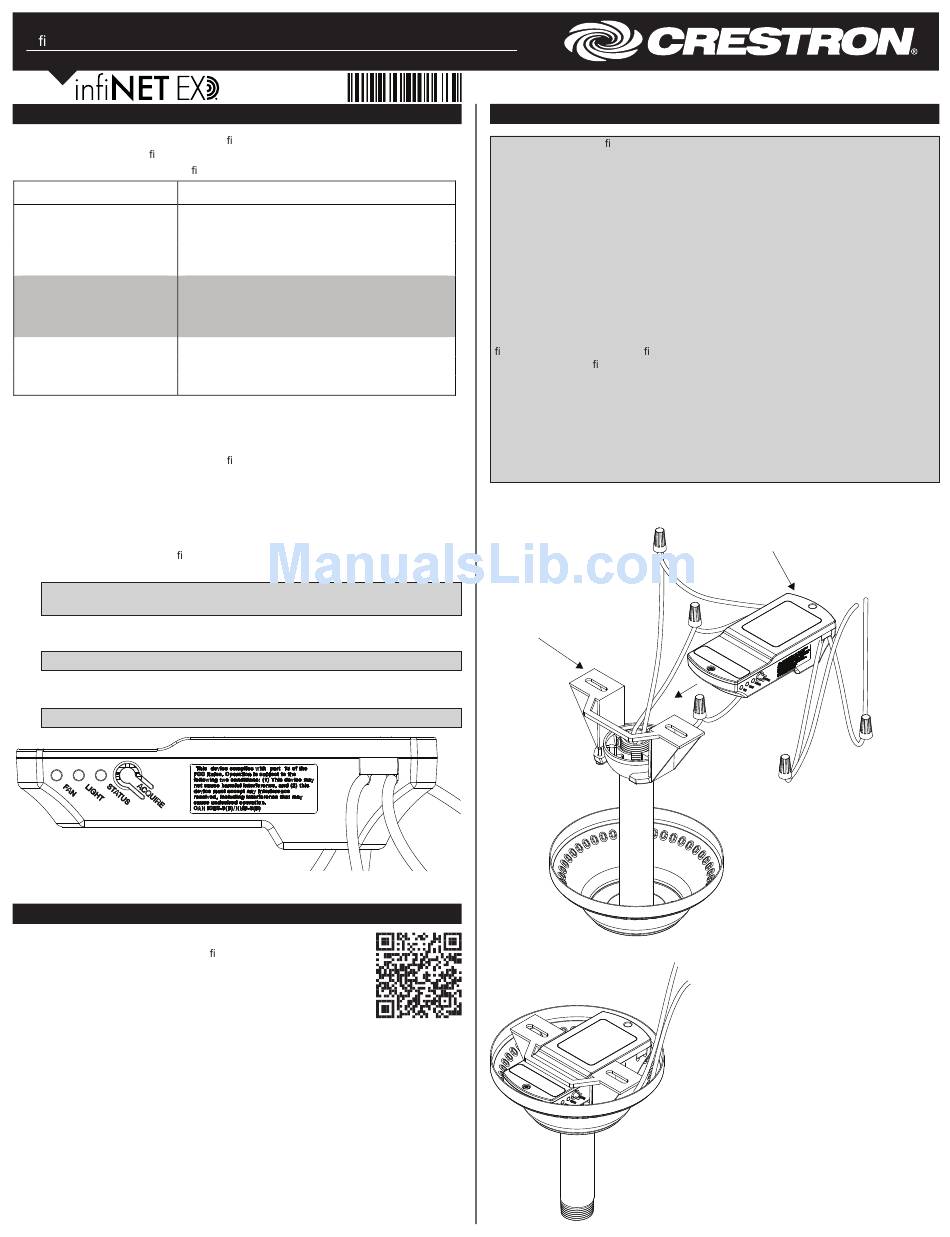

Install the CLC-FANDELVEX-W after all connections have been made. The
CLC-FANDELVEX-W can be inserted into most common fan canopies. Refer to the
following illustration for details.
Ceiling Fan

Mounting

Bracket
CLC-FANDELVEX-W Installed in Fan Canopy
CLC-FANDELVEX-W
To Junction Box
To Junction Box
