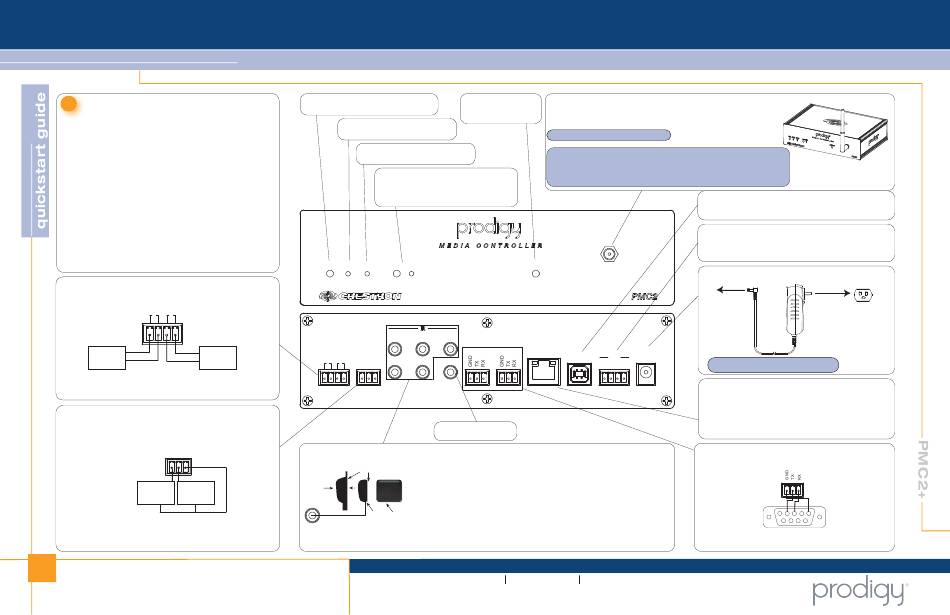

Crestron Prodigy PMC2+ Quick Start Manual

PMC2+
1
Introduction

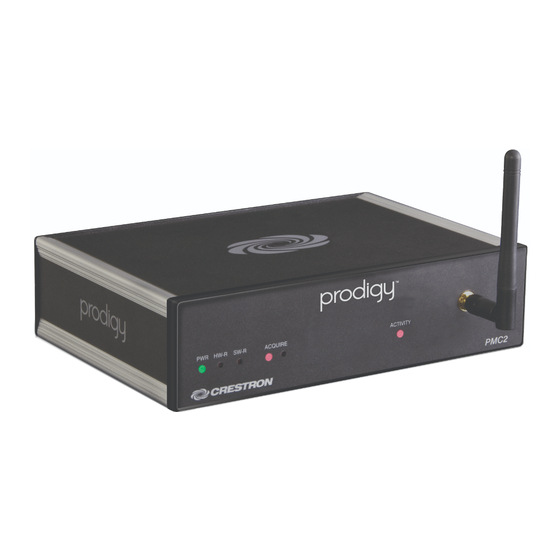

The Prodigy Media Controller (PMC2) is a compact
®
2-Series control system with an integrated wireless gateway.
Equipped with two RS-232 ports, five infrared outputs, two
low-level (0-24 VDC) inputs, two isolated relays, Ethernet,
and Cresnet , the PMC2 is a great single-box professional
®
RF wireless control solution for home theaters.
Contents
The PMC2 contains the following:
• (1) PMC2 Prodigy Media Controller
• (1) PW-2407W Power Supply
• (1) Antenna
• (5) STIRP Infrared Emitter Probes
• (1) PTX3 Prodigy Handheld Touchpanel
• (1) USB cable for PMC2
• (1) USB cable for PTX3
Terminal block connectors for RELAY, INPUT, COM, and
•
NET ports
• (4) Rubber feet
• (1) User Guide
• This Quickstart Guide
RELAY
CONNECTS TO: Any contact closure device
RELAY
2
1
DEVICE 1 DEVICE 2
SUPPORTS: (2) normally open, isolated relays
DETAILS: Rated 1 Amp, 30 Volts AC/DC; MOV arc suppression
across contacts
INPUT
CONNECTS TO: Contact closure device (door switch, motion sensor)
FOR: Detecting contact closure (digital)
INPUT
1 2 G
DEVICE 1 DEVICE 2
DETAILS:
Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold
1.25 Volts DC;
Programmable 5 Volts, 2k ohms pull-up resistor per pin
1
For Regulatory Compliance information, refer to the latest
version of Doc. 6894.
QUICKSTART DOC. 7006B (2027854) 06.10
Prodigy Media Controller
®
PWR
Indicates that the PMC2 is receiving power.
HW-R (HARDWARE RESET)
Press to reboot the PMC2.
SW-R (SOFTWARE RESET)
Press to restart the program.
ACQUIRE
For pairing PMC2 with PTX3. Press to place
the PMC2 in the Acquire mode. Press again
to exit the Acquire mode.
PWR HW-R SW-R ACQUIRE
1 2
RELAY INPUT
4 5
1 2 1 2 G
IR
CONNECTS TO: Up to five infrared-controlled devices with included STIRP IR emitters.
Adhesive Layer 1.
2.
IR Mask
1
3.
STIRP
IR Window
Shell
DETAILS:
Output up to 1.2 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
www.crestron.com/prodigy
©2010 Specifications subject to
change without notice.
ACTIVITY ANTENNA
Indicates communication CONNECTS TO: Included antenna
with PTX3.
RANGE: 100 feet (30 meters) indoors, subject to site-specific conditions
NOTE: Use only the included antenna.
NOTE: To comply with FCC RF exposure limits for general
population/uncontrolled exposure, this transmitter must be installed to provide
a separation distance of at least 20 cm from all persons and must not be
colocated or operating in conjunction with any other antenna or transmitter.
TM
ACTIVITY
3
COM1 COM2 LAN
COMPUTER NET
IR IN
24 Y Z G
IR IN
Reserved for future use.
Remove adhesive from STIRP shell and affix shell to controlled device's IR
window.
Prepare the IR Mask to cover the IR window by trimming any excess
material. The mask should cover the shell and the IR window to prevent
interference from external IR signals.
Remove adhesive and affix mask over shell.
888.273.7876 201.767.3400
All brand names, product names, and trademarks
are the property of their respective owners.
COMPUTER
CONNECTS TO: Optional PC with included USB cable.
FOR: Programming with Composer software
NET
CONNECTS TO: Optional P-MNETGW (for control of lighting
and HVAC equipment), PT-AMFMXM Radio Tuner, or
PAMP-4X100 Processor Amplifier
24VDC
CONNECTS TO: Included power supply
TO
TO
PMC2
AC OUTLET
24VDC
0.7A
NOTE: Connect power last.
LAN
CONNECTS TO: Local Area Network via router or switch
FOR: Communication with:
Up to six PTL4 wall-mount touchpanels
Up to two P-IDOCV iPod interfaces
One iPhone ® /iPod touch ® (running Crestron Control App
One XPanel connection
COM1 & COM2
CONNECTS TO: Serial-controlled devices with software
handshaking
COM1
3 5
1 2 4
6 7 8
9
DETAILS:
Bi-directional, RS-232; Up to 115.2k baud;
Software handshaking support
TM )
RS-232 Port of
Controlled Device
