Crestron MC4 Quick Start Manual

MC4/MC4-I

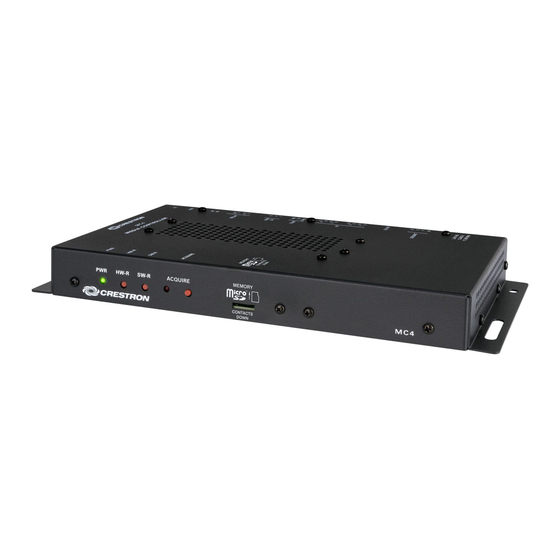

The Crestron® MC4 and MC4-I
secure, high-performance, cost-effective control processors and
interfaces. Their small form factor and versatile mounting options make
them ideal for applications such as single-room systems, small to
medium-sized homes and offices, and MDUs (multidwelling units). The
control system includes a built-in infiNET EX® and ER wireless gateway
for acquiring wireless devices as well as numerous control ports for
controlling wired devices.
NOTE: The MC4 and MC4-I are functionally similar. For simplicity
within this guide, the term "control system" is used to refer to both
the MC4 and MC4-I unless otherwise noted.
In the Box
1 MC4 or MC4-I, 4-Series Media Room Controller
Additional Items
1 Rack Ear, Left (2053897)
1 Rack Ear, Right (2053896)
4 Nut, 10-32 (2004889)
1 Antenna, Dual Band, 2.4/5.8 GHz (2052945)
1 Cable, CAT5e, 5 ft (1.52 m) (2022311)
2 Connector, 3-Pin (2003575)
4 Connector, 4-Pin (2003576)
4-Series media room controllers provide

Install the Device

The control system may be mounted into a rack or onto a flat surface.

Rack Mounting

The control system occupies 1U of rack space when using the provided
rack ears.
1. Attach the rack ears to the device:
a. Insert the two threaded posts on the left rack ear up and into the
front opening in the left mounting flange of the control system.
Repeat this step for the right rack ear.
b. Attach the four provided nuts to the threaded posts to secure the
rack ears to the control system.
Quick Start
1
