DO GUIDE
TSW-560/TSW-760/TSW-1060
5", 7", and 10.1" Touch Screens

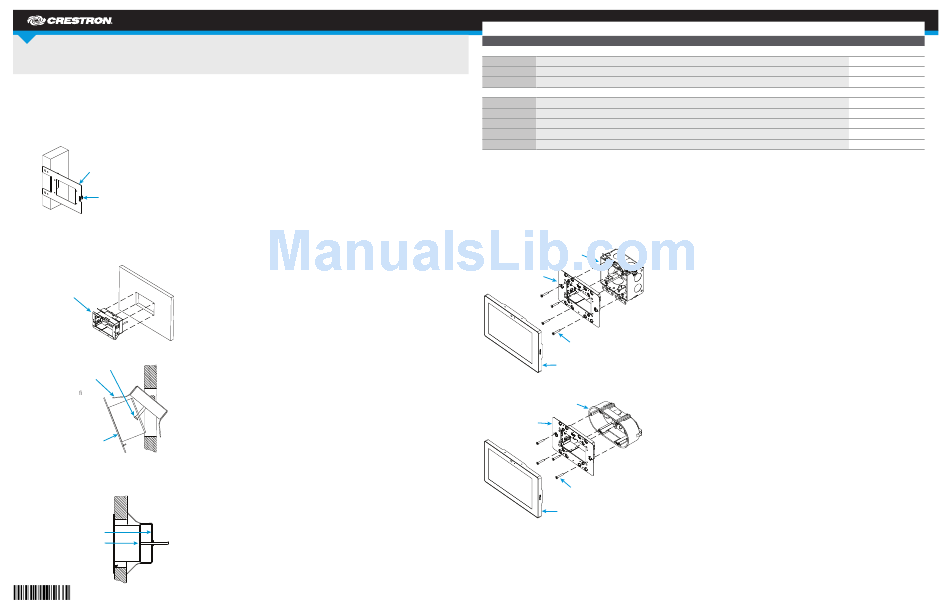

DO Install the TSW-560 Mounting Bracket
The Crestron ® TSW-560 touch screen can be mounted into drywall and other surfaces, or it can be mounted onto a wall stud. When mounted into drywall
and other surfaces, the touch screen protrudes 1/2" (13 mm) from the mounting surface.
To mount the TSW-560, use the following procedure:
1. For preconstruction applications, use standard drywall nails or screws (not included) to attach the included preconstruction mounting bracket to a
wall stud.
Preconstruction bracket
Use a tie wrap to hold the cable
until the TSW-560 is mounted.
CAUTION: Allow an air gap of at least 12" (305 mm) in the wall cavity above and below the TSW-560 for heat dissipation.
For postconstruction applications, use the preconstruction bracket as a cutout template by turning the bracket to face the wall, ensuring it is level,
and temporarily tacking it to the wall with finishing nails (not included) in the smaller holes around the cutout opening. Trace the cutout opening with
an appropriate drywall saw (not included).
Universal mounting bracket
2. Loosen the two screws on the included universal mounting bracket, and then install the universal mounting bracket, bottom first, into the opening.
Loosen both of the screws.
Push the top surface
downward to install
the bottom half rst.
Universal mounting bracket
3. Reach into the universal mounting bracket and push the rear half back to ensure it is fully behind the mounting surface. Ensure the front of the
universal mounting bracket is level, and then tighten the two screws to complete the installation.
CAUTION: To avoid damage to the bracket, do not overtighten the screws.
Push the rear half back.
Ensure the front is level.
Then, tighten both screws.
DO Check the Box
QUANTITY PRODUCT
Items for TSW-560 Only
1 Latch, Security
1 Bracket, Universal Mounting
1 Bracket, Preconstruction
Items for TSW-760 and TSW-1060 Only
1 Bracket, Mounting
1 Latch, Security
4 Screw, 6-32 x 3/4", Undercut Head, Phillips
2 Screw, M3.5 x 25 mm, Flat Head, Phillips
4 Screw, M3 x 16 mm, Flat Head, Phillips
DO Install the TSW-760 or TSW-1060 Mounting Bracket
The TSW-760 and TSW-1060 touch screens install over a standard 2-gang or 3-gang U.S. electrical box, a 2-gang European electrical box, or a 2-gang
U.K. electrical box. The touch screens can also be attached directly to drywall and other surfaces over the front of a 2-3/8" (60 mm) high by 3-3/8" (86
mm) wide cutout. When installed, the touch screen protrudes 1/2" (13 mm) from the mounting surface, eliminating any visible screws.
To mount the TSW-760 or TSW-1060 into an electrical box, use the appropriate included screws (four 6-32 x 3/4" screws, four M3 x 16 mm screws, or
two M3.5 x 25 mm screws) to attach the mounting bracket to the electrical box, as shown in the following illustrations.
NOTE: For U.S.-style installations, use a #2 Phillips screwdriver. For European or U.K.-style installations, use a #1 Phillips screwdriver or equivalent.
For U.S.-style installations, use the four 6-32 x 3/4" screws.
U.S. electrical box
Mounting bracket
Screws (4): 6-32 x 3/4"
TSW-760 or TSW-1060
For European-style installations, use the four M3 x 16 mm screws.
European electrical box
Mounting bracket
Screws (4): M3 x 16 mm
TSW-760 or TSW-1060
For U.K.-style installations (not pictured), use the two M3.5 x 25 mm screws.
To complete the installation, refer to "DO Complete the Installation" on the next page.
PART NUMBER
4525305
4525127
4524592
4525352
4525305
2033247
2023756
2013788
