- Page 1 PAC 3500 E OPERATING MANUAL LOCAL AIR CONDITIONER...
-
Page 2: Table Of Contents
Information marked with this symbol indicates that the • Check accessories and connection parts for possible operating manual must be observed. damage prior to every use of the device. Do not use any defective devices or device parts. Operating manual – local air conditioner PAC 3500 E... - Page 3 • Any unauthorised modifications, such as alterations or structural changes to the device, are forbidden. • Any operation other than as described in this manual is prohibited. Non-observance renders all claims for liability and guarantee null and void. Operating manual – local air conditioner PAC 3500 E...
-

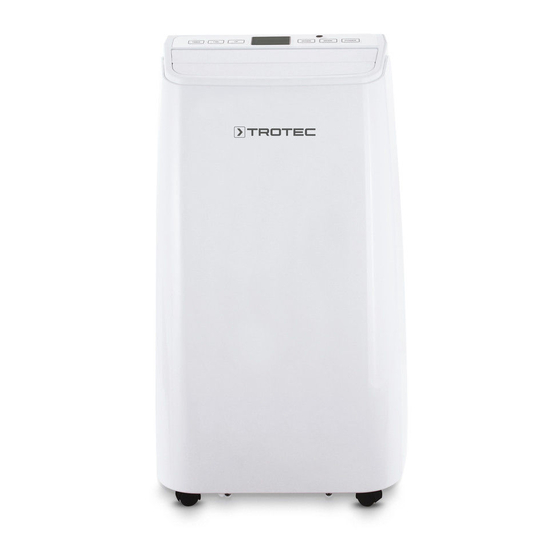

Page 4: Information About The Device
The device was designed for universal and flexible application. Due to its compact dimensions it can be easily transported and used in all interior spaces. Operating manual – local air conditioner PAC 3500 E... -
Page 5: Transport And Storage
Wait 12 to 24 hours before switching the device back on! Acting contrary might lead to compressor damage and a malfunctioning device. If so, any warranty claims will be voided. Operating manual – local air conditioner PAC 3500 E... -
Page 6: Assembly And Installation
• Keep air inlets and outlets as well as the exhaust air hose connection free. • Make sure that no curtains or other objects interfere with the air flow. Prior to initial start-up, insert the batteries in the remote control. Operating manual – local air conditioner PAC 3500 E... - Page 7 For this purpose, we recommend using a window seal (optional). When attaching the window seal, a minimum distance of 30 cm should be maintained between the two hoses. • Install the exhaust air hose inclined with the air direction. Operating manual – local air conditioner PAC 3500 E...
- Page 8 Do not replace or extend the hose, for it could cause a malfunction. Connecting the power cable • Insert the mains plug into a properly secured mains socket. Operating manual – local air conditioner PAC 3500 E...
-
Page 9: Operation
Switching the device on or off segment display (29). MODE button Selection button for the mode of operation Fan speed indication Low = Medium = High = Dehumidification Operating mode dehumidification mode indication active Operating manual – local air conditioner PAC 3500 E... - Page 10 Check the hose for tight fit. 2. Press the FAN button (18) to set the desired fan speed. ð The selected fan speed (27) is displayed. ð The current room temperature is indicated on the segment display (29). Operating manual – local air conditioner PAC 3500 E...
- Page 11 ð The display changes back to the previous indication. ð The TIMER indication (31) appears on the display. ð The timer setting equals the desired number of hours. ð The device switches off after the set period of time. Operating manual – local air conditioner PAC 3500 E...
- Page 12 • Store the device according to the Storage chapter. Operating mode Cool = cooling indication Fan = ventilation Dry = dehumidification °C / °F button Switching temperature indication between °C and °F Operating manual – local air conditioner PAC 3500 E...
-
Page 13: Errors And Faults
(in cooling mode). The compressor will not switch on unless the respective temperature is reached. • The compressor may start up with a delay of 3 min, as it is provided with an internal protection against direct restart. Operating manual – local air conditioner PAC 3500 E... -
Page 14: Maintenance
Visually check the inside of the device for dirt Check the air filter for dirt and foreign objects and clean or replace if necessary Replace air filter Check for damage Check the attachment screws Test run Operating manual – local air conditioner PAC 3500 E... - Page 15 12. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......13. Date: ......14. Date: ......15. Date: ......16. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......Operating manual – local air conditioner PAC 3500 E...
- Page 16 Refrigerant circuit • The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air- conditioning or by Trotec. Operating manual – local air conditioner PAC 3500 E...
- Page 17 • Reconnect the device to the mains. collection container. If you do not intend to use the device for a considerable time: • Store the device according to the Storage chapter. Operating manual – local air conditioner PAC 3500 E...
-
Page 18: Technical Annex
Directive 2006/66/EC of the front (D): 50 cm European Parliament and of the Council of 6 September 2006 on batteries and accumulators. Please dispose of batteries and accumulators according to the relevant legal requirements. Operating manual – local air conditioner PAC 3500 E... - Page 20 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
