Device Configuration
Configuring the device using the Ethernet Device
Configuration Tool:
1. Attach the module to a soft starter.
2. Connect Ethernet port 1 or port 2 on the module
to the network.
3. Apply control power to the soft starter.
4. Start the Ethernet Device Configuration Tool.
5 5

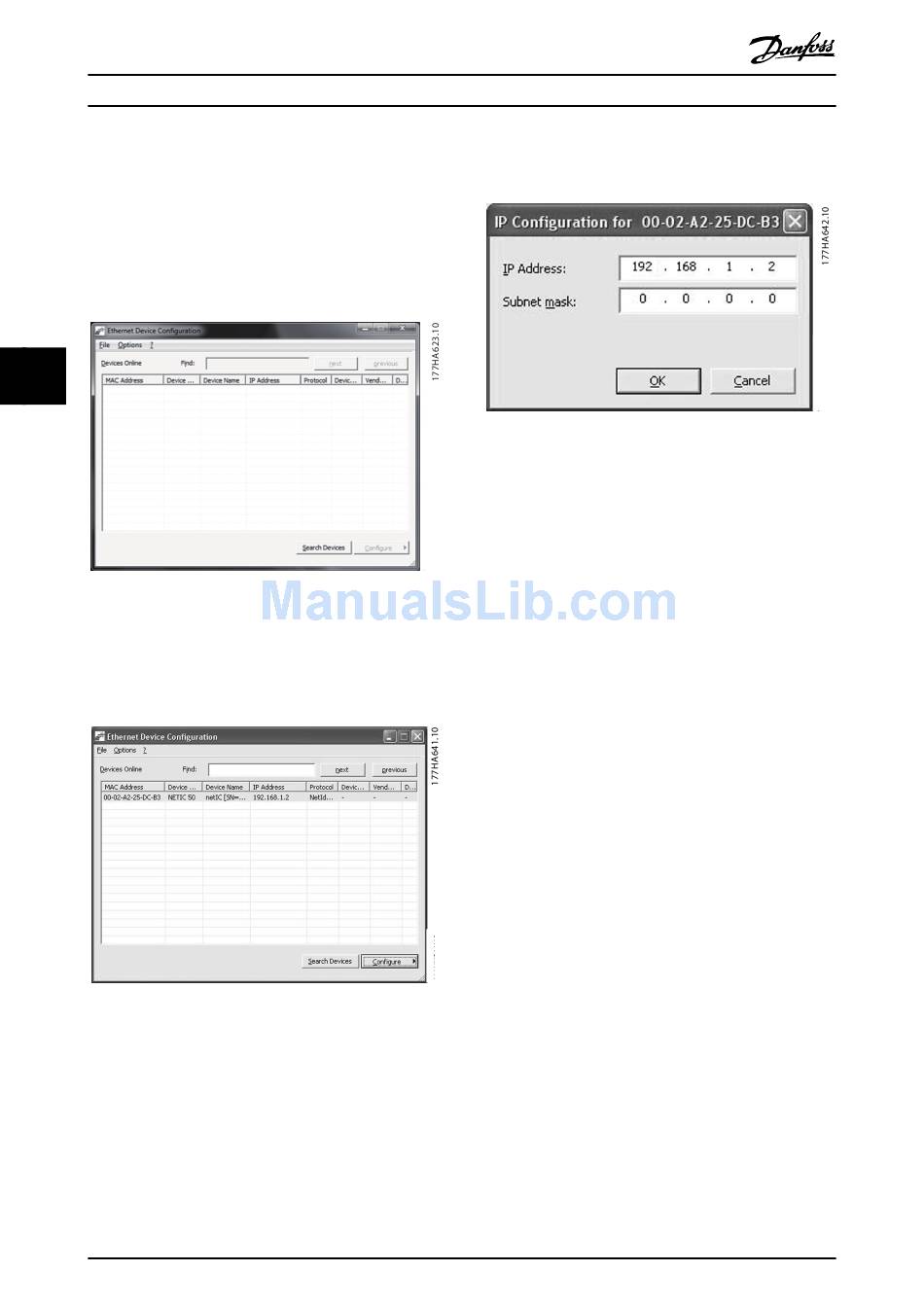

Illustration 5.2 Starting the Tool
5. Click Search Devices.
5a
Illustration 5.3 The Tool Shows the Connected Devices
10
Modbus TCP Module
The software searches for connected
devices.
Danfoss A/S © 10/2017 All rights reserved.
6. To set a static IP address, click Configure and
select Set IP Address.
Illustration 5.4 Setting a Static IP Address
