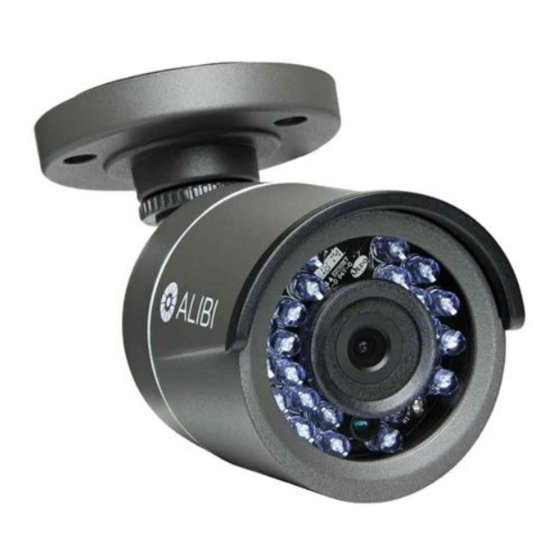

Ali-bc700 series infrared bullet cameras

Advertisement

Quick Links

ALI-BC700 Series Infrared Bullet
Cameras Quick Installation Guide
For Products: ALI-BC700G, ALI-BC700VFG
The ALIBI ALI-BC700 series indoor/outdoor bullet cameras include a new generation sensor with high
sensitivity and advanced circuit design technology. They feature high resolution, low image distortion and
low noise features which makes them suitable for both surveillance and image processing systems.
Features
High resolution color sensor: 700 TV Lines
2.8 - 12 mm Varifocal lens (ALI-BC700VFG only)
12 Vdc power
IR LED enables the day/night surveillance
IR cut filter auto switch
True day/night
High color rendition
Weather protection: IP66 rated

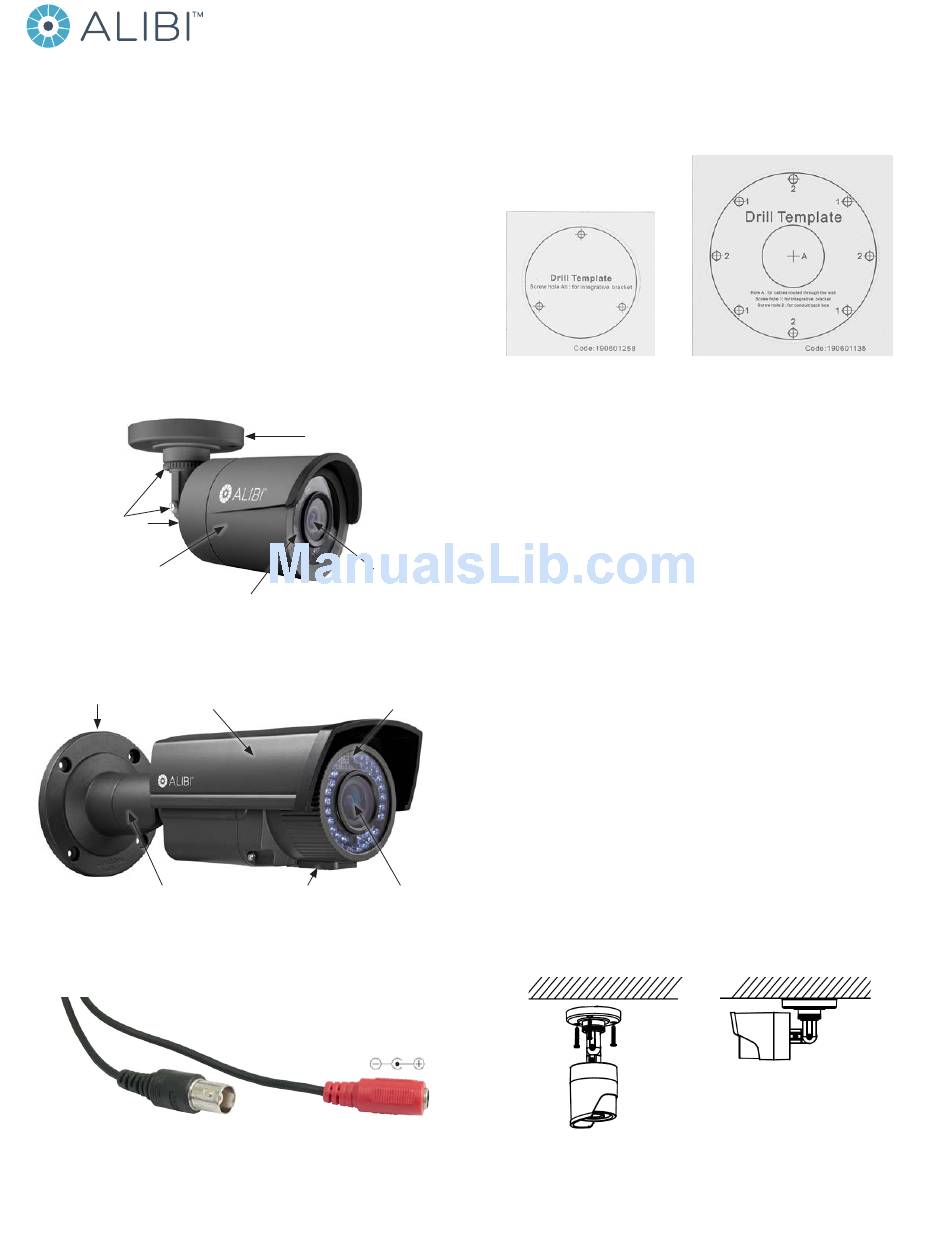

Mounting Bracket
Adjustments
Camera body
ALI-BC700G Cameras
Mounting base
Sun shield
Integrated
Mounting Bracket
ALI-BC700VFG Camera
Video BNC
Connector
ALI-BC700 series cameras drop cable connectors
www.observint.com
1
Mounting base
Lens
IR LED Array
IR LED Array
Focus - zoom
Vari-focal Lens
adjustments
(2.8 mm - 12 mm)
Power
Connector
What's in the box
Camera assembly
Mounting hardware
This instruction guide
Drill template
ALIL-BC700G (left) and ALI-BC700VFG drill templates
Tools you need
To install the camera, you will need:
12 Vdc power source. See Specifications for wattage requirement.
Tools and additional fasteners (may be required) for mounting the camera
Phillips screwdriver
Video and power extension cable
CCTV video setup monitor (optional)
Installation
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
Check the specification of the products for the installation environment.
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved products. See the
Monitor impedance: Set the monitor impedance switch to 75 Ω.
Power supply: Camera drop cable: The camera drop cable includes two connectors:
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension cable.
Power connector: When applying Vdc power, observe the power polarity. See the picture below
for the connector polarity configuration.
Mounting the camera
An ALI-BC700 series camera can be mounted on a wall or ceiling that has sufficient strength to support it.
The video/power drop cable from the camera can be routed either through mounting surface or through a
cable guide on the edge of the mounting base.
ALI-BC700G camera typical ceiling mounting
section.
Cleaning
ALI-BC700_CQ
7/7/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALI-BC700G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ALIBI ALI-BC700G

  • Page 1 For Products: ALI-BC700G, ALI-BC700VFG • The ALIBI ALI-BC700 series indoor/outdoor bullet cameras include a new generation sensor with high sensitivity and advanced circuit design technology. They feature high resolution, low image distortion and low noise features which makes them suitable for both surveillance and image processing systems.
  • Page 2 Lens Mount: φ14 For the ALI-BC700G camera: The mounting bracket pan adjustment can be made after loosening Adjustment Range: Pan: 0 - 360°, Tilt: 0 -90°, Rotation: 0 - 360°...
  • Page 3: Troubleshooting

    Maintenance Cleaning Clean the camera dome with an approved glass cleaning solution and a lint free cloth. Dust can be removed from the unit by wiping it with a soft damp cloth. To remove stains, gently rub • the surface with a soft cloth moistened with a mild detergent solution, then rinse and dry it with a soft cloth.
