  • Page 2: Instruction Manual

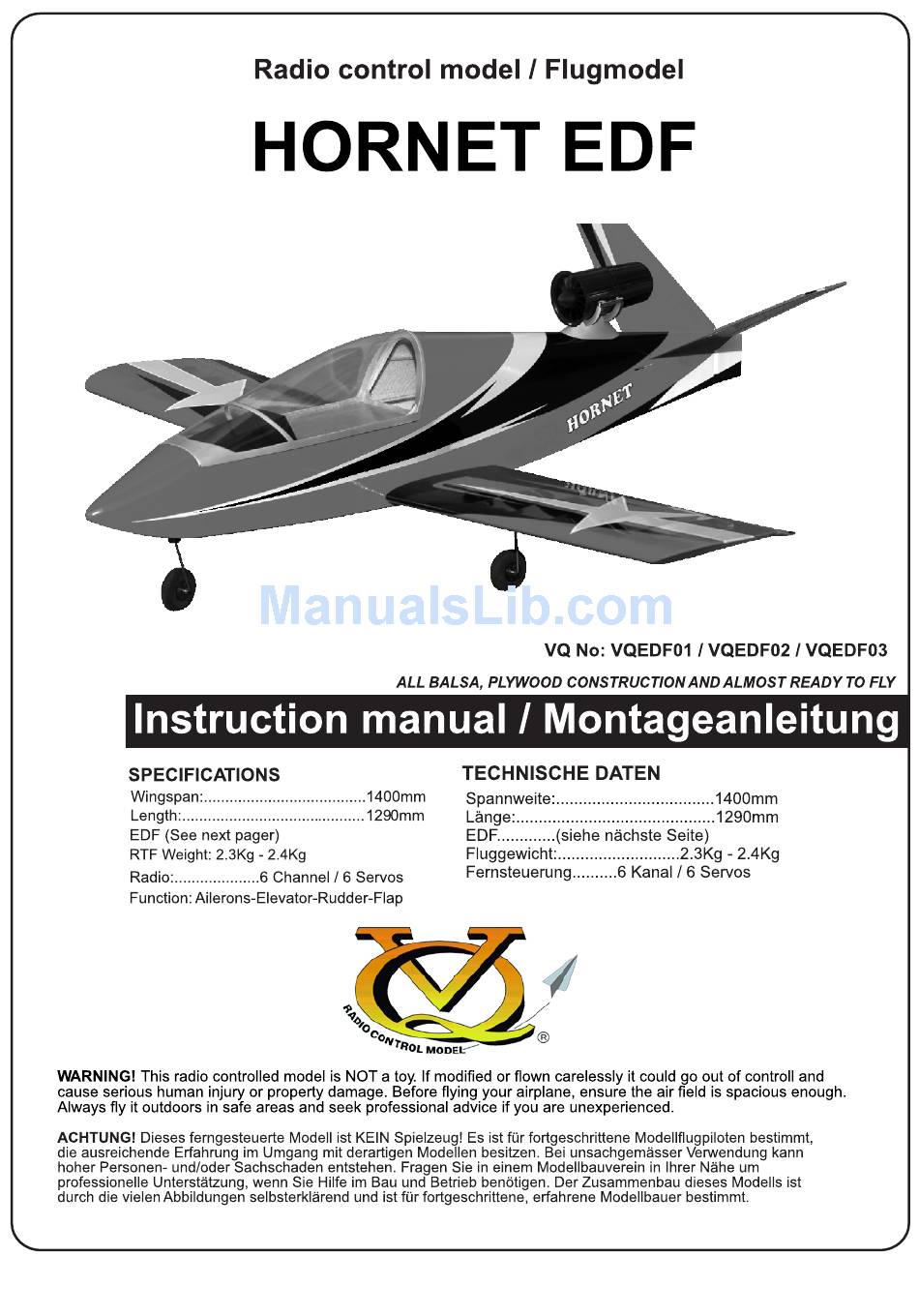

    Instruction manual Hornet EDF REQUIRED FOR OPERATION (Purchase separately) Extension cord for aileron servos: 50cm(x2) Extension cord for flap servos: 50cm(x4) Extension cord for retract servos: 30cm(x2) Extension cord for Rx battery pack: 20cm(x1) EDF 70mm - 2750Kw Mini Servo...
  • Page 3 Instruction manual Hornet EDF Half wing panel - top view 1 Dowel installation wooden dowel RIGHT WRONG 6mm dowel 6mm dowel Assemble left and right ..4 6mm dowel wings the same way. 2 Fixed gear assemble 3x20mm Nylon gear strap...

  • Page 4: Fixed Gear Installation

    Hornet EDF Instruction manual 3 Fixed gear installation Assemble left and right 3x12mm screw wings the same way..8 4 E-retract installation...

  • Page 5: Control Horn Installation

    Instruction manual Hornet EDF 5 E-retract installation 4mm collar Assemble left and right ..4 wings the same way. 6 Control horn installation ! Securely glue together. If coming off during fly, you lose control of your air plane. Plastic control horn ..2...
  • Page 6 Hornet EDF Instruction manual 7 Servos and linkages Connector ....4 Flap/Aileron push rod (1.2x150mm) ..4 Flap / Aileron pushrod Assemble left and right wings the same way. 8 Nose gear mount Step 8A Insert the nose gear pushrod into the fuselage with the “Z”...

  • Page 7: Nose Gear Installation

    Hornet EDF Instruction manual 9 Nose gear installation Step 9A Step 9B Wrench 4mm collar ..2 Nose gear push rod (1.2x550mm) ..1 10 E-retract (Nose gear) installation Nose retract pushrod Insert the “Z” bend into the hole on the nose gear control horn.

  • Page 8: Stabilizer Installation

    Instruction manual Hornet EDF 11 Stabilizer installation Push the horizontal stabilizer into the slot on the fuselage as show. Check the alignment of the horizontal stabilizer by measuring from a fixed point along the center line of the fuselage to the leading edge on each side of the horizontal stabilizer.
  • Page 9 Hornet EDF Instruction manual 12 Stabilizer installation continued Step 12A Carton template “V” Tail Carton template FUSELAGE AND “V”TAIL - REAR-VIEW Step 12B Top-view Step 12C Glue the underside of the tail through the hole Apply CA glue both sides.
  • Page 10 Hornet EDF Instruction manual 13 Control horn installation Note: The rectangle hole on the elevator is pre-cut at factory. Cut away only the covering Step 13A Top-view Note: Flow the one end (with the “Z”) of the elevator push rod (1.2x950mm) into the elevator control horn before attach the Stabilizer to the fuselage.
  • Page 11 Hornet EDF Instruction manual 14 Ducted fan mount assemble Step 13B Step 13A Bm2x2pcs Bm3x2pcs Apply CA glue both sides. (thin CA) Step 13C Step 13D Step 13E Step 13F BM5X2PCS BM5X2PCS...
  • Page 12 Instruction manual Hornet EDF 15 Ducted fan mount installation Step 14A Slide the Fan mount into the slot on the top of the fuselage as shown. Step 14B Using a pencil, trace around the fan mount where it meets the fuselage.
  • Page 13 Instruction manual Hornet EDF 16 Ducted fan mount installation Step 15A Slide the Fan mount into the slot on the top of the fuselage as shown. Secure the Fan mount in place using the thin CA ! Securely glue together. If coming off during fly, you lose control of your air plane.
  • Page 14 Hornet EDF Instruction manual 17 Ducted fan installation Step 16A Fiberglass exhaust Step 16C 2x5mm self tapping screw Step 16D...

  • Page 15: Wing Installation

    Instruction manual Hornet EDF 18 Wing installation Cut away only the covering both side Pull the aluminum tube through the fuselage Carefully, push the wing to touch the fuselage Secure the wing in place using the 4x20mm plastic bolt.
  • Page 16 Instruction manual Hornet EDF 19 Servo and linkages Nose gear servo Connector Elevator pushrod Elevator pushrod Elevator servo Elevator pushrod 3mm set Screw Connector Nose gear push rod Elevator pushrod (1.2x550mm) ..1 ..1 Elevator push rod Connector (1.2x950mm) ....4 ..2...
