a PC's USB port, which requires previous installation of Atmel Studio 6 or 7 IDE [4]. This installation
includes all required USB drivers for operation of the Xplained PRO SAMD20 board.

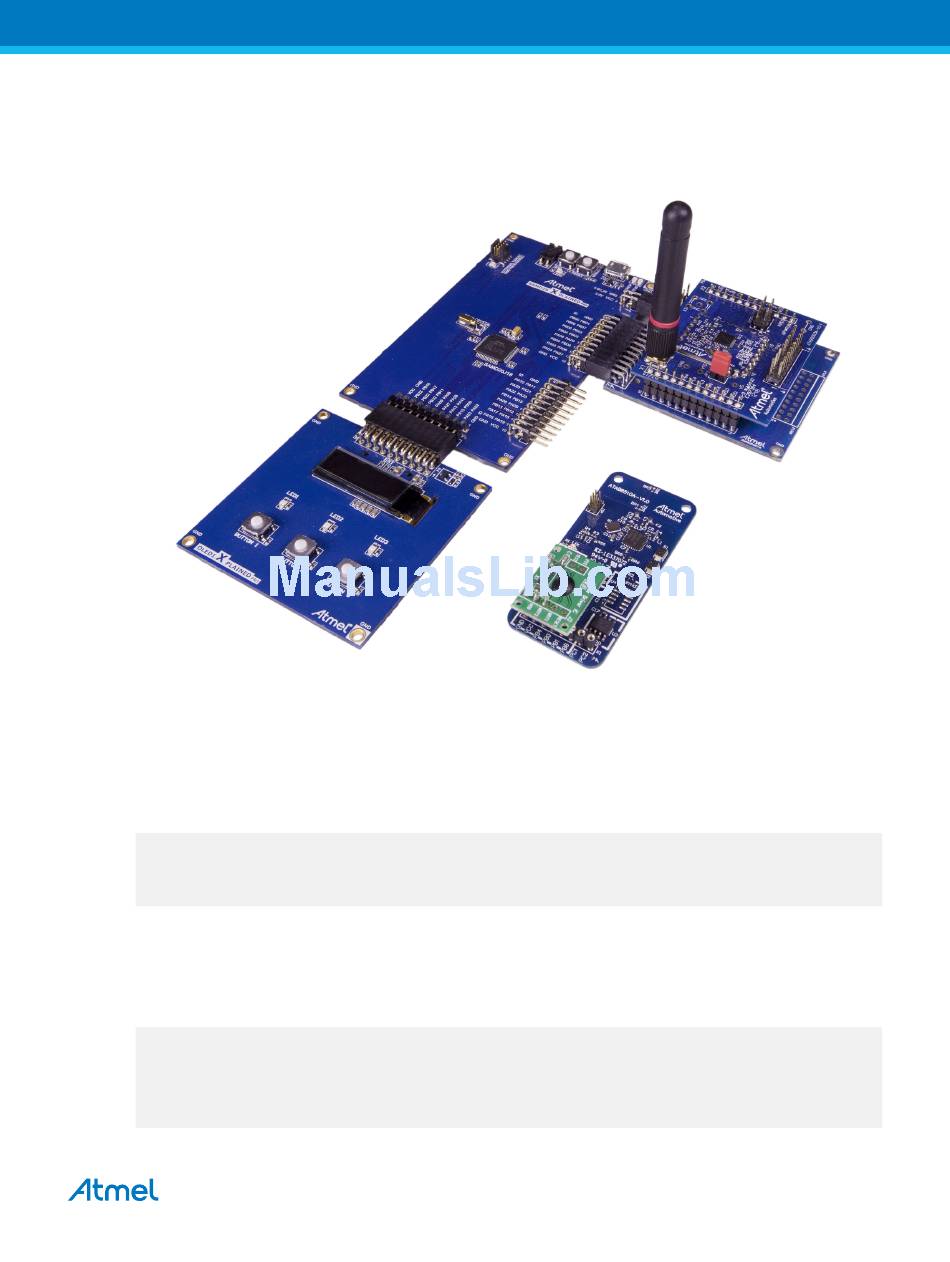

Figure 1-2. ATA8510-EK1 Kit
Atmel Studio 6 or 7 can be downloaded from [4] with additional user instructions and tools.
Documentation for the Xplained PRO SAMD20 and Xplained PRO OLED1 are also available from [4].
Documentation for other components in the kit and the software is included in the tool pack zip folder [10]
available on the Atmel web site [4].
The OLED displays a welcome screen after power-up
ATA8510-EK1 Demo Kit
(c)2016 Atmel V2.0
ATA8515 V1.2
wait for RF signal ...
and waits for an RF telegram from the remote sensor. After installing the CR2032 coin cell into the remote
sensor (be sure to observe correct polarity), the sensor immediately starts sending RF telegrams at 2s
intervals when the optional RTC module is installed. The OLED shows the temperature value from the
sensor with a resolution of 1°C. The time interval between the RF signal reception in seconds and the
signal strength rssi on the base station and RSSI on the sensor is also shown:
___________________
| dt=2s
rssi=221 |
|
|
|
T=22°C
|
|
RSSI=128
|
|___________________|
Atmel User Guide for the Evaluation Kit ATA8510-EK1 [APPLICATION NOTE]
Atmel-9343D-ATAN0046_Application Note-09/2016
5
