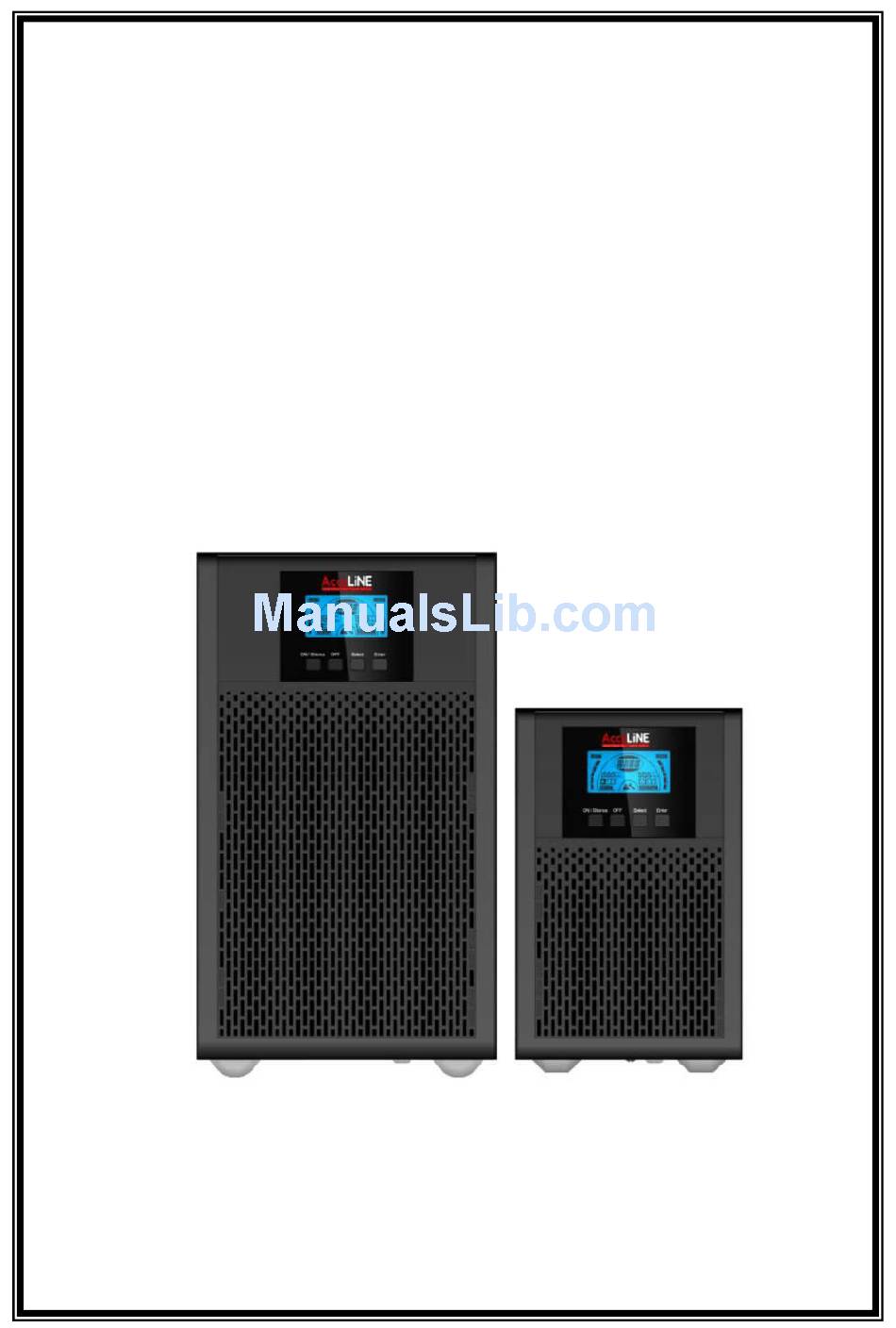

- Page 1 USER MANUAL Acculine TNplus- 1000m / 2000m / 3000m ONLINE UPS edition, February 2018 1000VA / 2000VA / 3000VA UNINTERRUPTIBLE POWER SUPPLY SYSTEMS...
-
Page 2: Table Of Contents
CONTENT 1. SAFETY AND EMC INSTRUCTIONS ............1 1.1 I ..................1 NSTALLATION 1.2 O ................... 2 PERATION 1.3 M ........... 3 AINTENANCE SERVICING AND FAULTS 1.4 T ..................4 RANSPORT 1.5 S ....................4 TORAGE 1.6 S ..................5 TANDARDS 2. - Page 3 10. TECHNICAL DATA .................. 32 10.1 E ............. 32 LECTRICAL SPECIFICATIONS 10.2 O ..............33 PERATING NVIRONMENT 10.3 D ..............33 IMENSIONS AND WEIGHTS 11. COMMUNICATION PORT ............... 33 11.1 USB C .............. 33 OMMUNICATION 11.2 USB ............33 POWER DEVICE 11.3 AS400 I ) ............
-
Page 4: Safety And Emc Instructions
1. Safety and EMC Instructions Please read carefully the following user manual and the safety instructions before installing or operating the unit! 1.1 Installation See installation instructions before connecting to mains power. Condensation may occur if the UPS is moving directly from a cold to a warm environment. -
Page 5: Operation
The Air Flow Diagram Figure 1.1 This receives power from more than source-disconnection of the AC source and the DC source is required to de-energize this unit before servicing. An additional circuit breaker or fuse with rating 16A and breaking capacity 3kA shall be used between power source and input when installing this unit. -
Page 6: Maintenance, Servicing And Faults
Remove the protective panel only after having disconnected the terminal connections. Do not use output cable longer than 10 meters. 1.3 Maintenance, servicing and faults The UPS operates with hazardous voltages. Repairs may be carried out only by qualified maintenance/service personnel. Caution - risk of electric shock. -
Page 7: Transport
cause explosion. Do not open or destroy batteries. Effluent electrolyte can cause injury to the skin and eyes. It may be toxic. Please replace the fuse only by a fuse of the same type and amperage in order to avoid fire hazards. Noone should dismantle... -
Page 8: Standards
1.6 Standards * Safety IEC/EN 62040-1 * EMI Conducted Emission........:IEC/EN 62040-2 Radiated Emission........:IEC/EN 62040-2 Harmonic Current........:IEC/EN 61000-3-2 Voltage Fluctuation and Flicker....:IEC/EN 61000-3-3 *EMS ESD............:IEC/EN 61000-4-2 RS............:IEC/EN 61000-4-3 EFT............:IEC/EN 61000-4-4 SURGE..........:IEC/EN 61000-4-5 ...:IEC/EN 61000-4-6 ..: IEC/EN 61000-4-8 Voltag ..: IEC/EN 61000-4-11 Low Frequency Signals......:IEC/EN 61000-2-2... -
Page 9: Description Of Commonly Used Symbols
2. Description of Commonly Used Symbols Some or all of the following symbols may be used in this manual or on the UPS. It is advisable to familiarize yourself with them and understand their meaning:... -
Page 10: Introduction
3. Introduction Acculine TNplus m UPS are a series of uninterruptible power supply systems incorporating double-conversion technology. They provide perfect protection specifically for Linux, UNIX, and Windows servers. The double- conversion principle eliminates all mains power disturbances. A rectifier converts the alternating current from the socket outlet to direct current. -
Page 11: Panel Description
UPS Block Diagram 4. Panel Description The display panels on all Acculine UPS TNplus m models are the same, shown as below: The Display Panel Figure 4.1... -
Page 12: Button
4.1 Button Switch Function ON/Silence Turn on the UPS: Button By pressing the ON-Button continuously for more than 1 second the UPS system will be turned on. Deactivate acoustic alarm: By pressing this Button during battery mode an acoustic alarm can be deactivated. -
Page 13: Lcd Description
4.2 LCD description The LCD Display Figure 4.2 LCD icon Function Display Function Input Information It indicates the input voltage/frequency value, which are displayed alternately. It indicates that the input is connected with the mains, and the input power is single phase input. - Page 14 Load Information It indicates the load level. Every grid represents the level of 20%. One grid will be displayed if the level is 0~20% Battery Information It indicates the battery capacity. Every grid represents the capacity of 20%. In case that the battery low alarm occurs, the lowest grid will flash to remind you.
-
Page 15: Connection And Operation
LCD idle function: If the LCD background idle function is enabled, when the UPS is turned off to standby mode, the LCD background light will be switched off within 5 seconds. With any key pressed, the LCD background will be lighted on. - Page 16 (2) UPS Output Connection The output sockets and types of the UPS are shown below: TNplus Model Output Sockets 1000m 3*Schuko 1000Lm 2*Schuko 2000m 4*Schuko 2000Lm 2*Schuko+1*C13 3000m 4*Schuko 3000Lm 2*Schuko+1*C19 3000m PRO 4*C13 + Terminal Block Regarding the TNplus 3000m PRO model connect the output and ground wires to the terminal block according to Figure 5.1 and table 5.1 -13-...
- Page 17 Figure 5.1 Output Connection diagram of TNplus 3000m PRO. Table 5.1 Terminal Terminal wire size Wire function Tightening torque position rating Line Out 1.5mm -2.5mm Neutral Out 0.5Nm(4.4 Lb In) (14AWG-12AWG ) Output Ground -14-...
- Page 18 (3) External Battery String Connection for long backup time models When connecting the external batteries it s recommended to pay attention to the following: Use an external battery string with voltage: 24VDC for 1000VA models (2 pcs of 12V batteries), 48VDC for 2000VA models (4 pcs of 12V batteries), 72VDC for 3000VA models (6 pcs of 12V batteries).
-
Page 19: Battery Recharge
(4) EPO Connection: The EPO (Emergency Power Off) function is a standard feature of the UPS and the polarity of the EPO is configurable; EPO is normally close as default setting. If the connection between the two ports of the EPO connector is disconnected, the EPO function will be active and the UPS will cut off its output power immediately. -
Page 20: Turn On The Ups
5.4 Turn on the UPS: (1) With mains power connected: Press On button continuously for more than 1 second to turn on the UPS, the UPS will get into the Line mode; the LCD screen will indicate the state of the UPS. (2) Without mains power connected: Even though the mains power is not connected to the UPS, the UPS can still be turned on by simply pressing... -
Page 21: Audible Alarm Mute Function
5.7 Audible alarm mute function: If the audio alarm during the battery mode is too annoying, it can be muted by tton continuously for more than 1 second. The audio alarm will be activated again when the battery reaches low status for reminding that the UPS output power will be soon cut off. -
Page 22: Operating Mode For All Models
6. Operating Mode for All Models Different messages/strings or different warning/fault codes, will be displayed on the LCD screen corresponding to different UPS operating modes, as shown in the following table 6.1 & 6.2. Only one normal operating string or fault string is presented at a time. -
Page 23: Line Mode
Fault String Inverter short SHOR Overload fault OVLD Inverter soft start fail ISFT Bus soft start fail bSFT Over temperature fault OVTP Inverter Volt Low INVL Inverter Volt High INVH Bus volt over bUSH Bus volt Low bUSL Bus short bUSS (Negative Temperature Coefficient) Inverter NTC... -
Page 24: Bypass Mode
set to enable , the bATT string and battery remaining time value (in Min or Sec) will be displayed in turns, changing every 2 sec. When the UPS is operating in battery mode, the buzzer beeps once every 4 seconds. If the ON button on the front panel is pressed for more than 1 second, the buzzer will stop beeping (silence mode). -
Page 25: Epo (Emergency Power Off)
level will be displayed. The STbY string indicates that the UPS is operating in No output mode. Figure 6.4 The No output mode 6.5 EPO (Emergency Power Off) It is also called RPO (Remote Power Off). On LCD display, the indication EPO will be presented in the position of the output voltage. -
Page 26: Abnormal Mode
UPS will transfer to battery mode and the load will be supplied continuously by the battery. 1) CVCF mode can be enabled via the LCD settings or the software (Winpower, etc.). 2) The normal power rating will be derated to 60% in the converter mode. -
Page 27: Setting By The Lcd Module
7. Setting by the LCD Module The output voltage/frequency, Auto bypass status, operating mode in No output mode or Bypass mode, charger current, external Battery Pack Number or Capacity (Ah) and battery remaining time function in all modes can be set directly via the LCD module. In bypass or no output mode, press the Enter button on the LCD panel for more than 1 second to enter the setting mode. - Page 28 Button. Only one voltage value can be selected at a time 220V 230V 240V Only one frequency value can be selected 50Hz 60Hz ; The Bypass status can be selected between 000 and 001 , where 000 means Bypass Disable and 001 means Bypass Enable The UPS will transfer to bypass mode several seconds after Bypass Enabled has been...
- Page 29 then, while the UPS is operating in battery mode or battery test mode, the will be displayed on the LCD in turns, changing every 2 sec. An example for changing the Operating mode from normal mode to converter mode via the LCD display. Step 1: OPV after pressing the Enter button.
- Page 30 Step 3: bYPA after pressing the Select button. Step 4: MOdE after pressing the Select button. UPS is flickering after pressing the Enter button. Step 5: ECO flickering after pressing the Select button. -27-...
-
Page 31: Trouble Shooting
Step 6 : CVF flickering after pressing the Select button. Press the Enter button to confirm the selection Short touch the Enter button to exit the setting mode. 8. Trouble Shooting If the UPS system does not operate correctly, check the operating status on the LCD display. - Page 32 The Backup The Batteries Charge the time is shorter are not fully batteries until they than expected. charged are fully charged Defect of the Change the batteries batteries or consult your supplier. FANF Fan failure Fan abnormal Check if the fan is operating HIGH Battery over...
- Page 33 Notify your supplier. bUSS Bus short UPS internal fault TEPH Inverter he internal Check the ventilation of temperature temperature of the the UPS, check the high UPS is too high ambient temperature. ITPH Inner Ambient The ambient Check the ventilation of temperature temperature is too the environment.
-
Page 34: Maintenance
Please have the following information at hand before calling the After-Sales Service Department: 1. Model number, serial number 2. Date on which the problem occurred 3. Date of purchase 4. LCD display status, Buzzer alarm status 5. Mains power condition, load type and capacity, environment temperature, ventilation conditions. -
Page 35: Technical Data
batteries. If there is a battery breaker then turn it off first. Disconnect the battery cable carefully and make sure that there are no exposed wires that can be touched. Reconnect the new batteries to the UPS by following the instructions in section 5.2. Then turn on the battery breaker and press the ON switch to set the UPS in performing battery test. -
Page 36: Operating Environment
10.2 Operating Environment Ambient Temperature C to 40 Operating humidity < 95% (Note 1) < 1000m Altitude (Note 2) 1000m< Altitude 3000m Storage temperature -25°C~55°C Note 1: No power derating Note 2: the power is derated 1% for every 100m of additional altitude 10.3 Dimensions and weights Dimensions W×H×D Net Weight... -
Page 37: As400 Interface (Optional)
(Human Interface Device) Power Device Class, no other software installation is needed. Computer OS (Operating System) such as Windows/Linux/Mac OS comes with an embedded power management and monitoring function. When such a computer connects to the UPS via a USB cable, the UPS will be automatically recognized by the OS as an the user will be able to configure the alarm actions in the event of low battery, for example shutting down the computer automatically. -
Page 38: Software
12. Software Free Software Download WinPower WinPower is a brand new UPS monitoring software, which provides user-friendly interface to monitor and control your UPS. This unique software provides safely auto shutdown for multi-computer systems while power failure. With this software, users can monitor and control any UPS on the same LAN no matter how far from the UPSs. -
Page 39: Appendix 1: Rear Panels
Appendix 1: Rear panels TNplus 1000m TNplus 1000Lm TNplus 2000Lm TNplus 2000m -36-... - Page 40 TNplus 3000Lm TNplus 3000m TNplus 3000m PRO -37-...
- Page 41 USER MANUAL Acculine TNplus- 1000m / 2000m / 3000m ONLINE UPS 2018 1000VA / 2000VA / 3000VA...
- Page 42 CONTENT ................1 ..................1 ................... 2 ............3 ................... 4 ..................5 ....................5 ............... 6 ....................7 ............8 ................9 LCD ..............10 ..............12 ................12 .................... 12 ............... 17 UPS ..............17 ................18 UPS ..............18 ........
- Page 43 ..............36 10.1 ............. 36 10.2 ..............36 10.3 ................ 37 ................ 37 11.1 USB ..................37 11.2 USB ............38 11.3 AS400 ( ) ........38 11.4 CMC ( ) ......... 38 11.5 NMC ( ) ......38 .................... 39 ..............
- Page 44 UPS! 3.5mA.
- Page 45 A / 3kA UPS.
- Page 47 Amperage...
- Page 48 * Safety IEC/EN 62040-1 * EMI Conducted Emission........:IEC/EN 62040-2 Radiated Emission........:IEC/EN 62040-2 Harmonic Current........:IEC/EN 61000-3-2 Voltage Fluctuation and Flicker....:IEC/EN 61000-3-3 *EMS ESD............:IEC/EN 61000-4-2 RS............:IEC/EN 61000-4-3 EFT............:IEC/EN 61000-4-4 SURGE..........:IEC/EN 61000-4-5 ...:IEC/EN 61000-4-6 ..: IEC/EN 61000-4-8 Voltag ..: IEC/EN 61000-4-11 Low Frequency Signals......:IEC/EN 61000-2-2...
- Page 50 Acculine Linux, Unix plus 1000VA/ 1000m 900W (Tower) 1000VA/ 1000Lm 900W (Tower) 2000VA/ 2000m 1800W (Tower) 2000VA/ 2000Lm 1800W (Tower) 3000VA/ 3000m 2700W (Tower) 3000VA/ 3000Lm 2700W (Tower) 3000m 3000VA/ 2700W (Tower)
- Page 51 UPS Acculine TNplus m...
- Page 52 UPS: Bypass Bypass Bypass. Bypass, Bypass Bypass, (Ah)* LCD.
-
Page 53: Lcd
-10-... - Page 54 -20% Else -11-...
- Page 55 LCD: Standby mode -12-...
- Page 56 TNplus 1000m 3*Schuko 1000Lm 2*Schuko 2000m 4*Schuko 2000Lm 2*Schuko+1*C13 3000m 4*Schuko 3000Lm 2*Schuko+1*C19 4*C13 + Terminal 3000m PRO Block TNplus 3000m PRO -13-...
- Page 57 TNplus 3000m PRO 1.5mm -2.5mm 0.5Nm(4.4 Lb In) (14AWG-12AWG ) -14-...
- Page 58 24VDC TNplus 1000Lm (2 48VDC TNplus 2000Lm 72VDC TNplus 3000Lm (6 UPS. -15-...
- Page 59 EPO: normally closed normally open) (normally closed) -16-...
-
Page 60: Ups
Line mode) battery mode) Bypass menu -17-... - Page 61 Line Mode Line mode): ypass Bypass stand-by mode battery low ypass -18-...
- Page 62 CVCF (battery low) Bypass 6.1 & 6.2 -19-...
- Page 63 STbY Bypass) bYPA On Line) LINE bATT TEST (ECO) CVCF 6.2: SITE UPS) FANF HIGH bLOW CHGF TEPH bOPN OVLD dCHF -20-...
- Page 64 ITPH (Inverter) SHOR OVLD ISFT (Inverter) Bus) bSFT OVTP Inverter) INVL Inverter) INVH Bus) bUSH Bus) bUSL Bus) bUSS NTCO Inverter -21-...
- Page 65 Line mode) (Line mode LINE Battery mode bATT enable bATT -22-...
-
Page 66: Bypass
Bypass Bypass: bYPA Bypass. Bypass STbY -23-... -
Page 67: Epo
EPO) (RPO / Remote Power Off). ECO ( high efficiency mode). (Winpower). -24-... -
Page 68: Cvcf Mode)
10msec. CVCF mode) (50Hz 60Hz). (Winpower short! -25-... - Page 69 Bypass Bypass LCD. 230Vac 230Vac Enter Enter Select 240, Enter -26-...
- Page 70 Enter Select Select Enter OPF , Bypass bYPA , MOdE , Ah EbAH , bATT , 220V 230V 240V 50Hz 60Hz Bypass Bypass Bypass To UPS Bypass UPS , , ECO UPS. -27-...
- Page 71 LCD. EBMs). (Ah) 3.0/6.0 1.5/3.0/4.5/6.0 Lm & 3000Lm bATT LCD. Enter . -28-...
- Page 72 Select . bYPA Select . MOdE Select . Enter -29-...
- Page 73 Select Select Enter Enter -30-...
- Page 74 USB. FANF HIGH -31-...
- Page 75 bLOW bOPN UPS. CHGF dCHF bUSH bUSL bSFT bUSS TEPH -32-...
- Page 76 ITPH INVH INVL ISFT NTCO Inverter SHOR UPS. OVTP -33-...
- Page 77 OVLD SITE UPS. UPS Acculine Tnplus m -34-...
- Page 78 OFF. 5.2. -35-...
- Page 79 10.1 3000m / TNplus. 1000m 1000Lm 2000m 2000Lm 3000Lm 3000m PRO 45-55 / 54-66 Hz 220/230/240VAC 4.9/4.7/4.5 5.7/5.4/5.2 9.7/9.3/8.9 9.7/9.3/8.9 14.5/13.9/13.3 14.5/13.9/13.3 1000(L)m 2000(L)m 3000(L)m (PRO) TNplus 1kVA/0.9kW 2kVA/1.8kW 3kVA/2.7kW 220Vac/230Vac/240Vac 50/60Hz 3000m TNplus. 1000m 1000Lm 2000m 2000Lm 3000Lm (PRO) 5Ah~120Ah* 5Ah~120Ah* 5Ah~120Ah*...
- Page 80 1000m < 3000m -25°C ~ 55°C 10.3 TNplus (mm) (kg) 1000m 144*228*356 1000Lm 102*228*346 2000m 190*327*399 17.4 2000Lm 102*327*390 3000m 190*327*399 22.7 3000Lm 102*327*390 3000m PRO 190*327*399 22.7 Acculine 11.1 -37-...
- Page 81 11.2 USB HID (Human Interface Device) Power Device Class, (Operating Systems) Windows/Linux/Mac low battery (Network-Attached Storage). Bypass Modbus internet intranet. -38-...
- Page 82 WinPower Download http://www.ups-software-download.com/winpower.htm 511C1-01220-0100-478DF2A -39-...
- Page 83 TNplus 1000m TNplus 1000Lm TNplus 2000m TNplus 2000Lm -40-...
- Page 84 TNplus 3000Lm TNplus 3000m TNplus 3000m PRO -41-...
- Page 85 VERINSO OOD. UPS. - 25 C VERINSO (VERSATILE INFRASTRUCTURE SOLUTIONS) OOD -42-...
- Page 86 T he crossed-out wheeled bin symbol indicates that waste electrical and electronic equipment should not be discarded together with unseparated household waste, but must be collected separately. The product should be handed in for recycling in accordance with the local environmental regulations for waste disposal.
