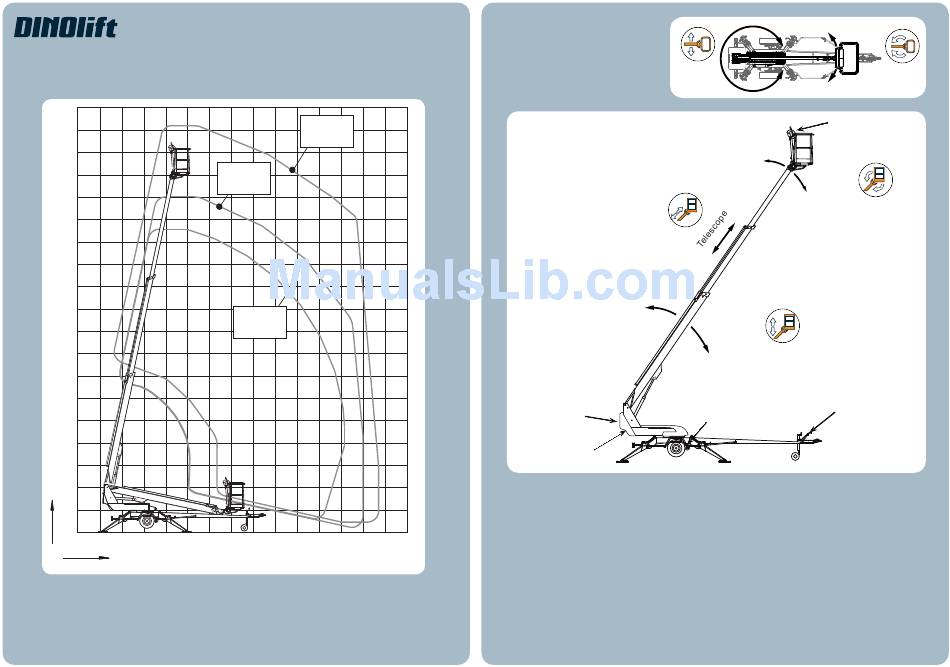

QUICK GUIDE

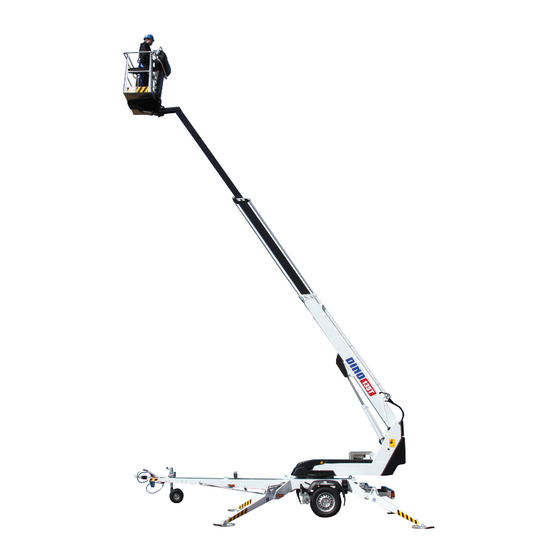

135T - 150T - 180T
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
2 1 0 1 2
m
Weight
Transport height
Transport width
Support width
Lifting capacity
NOTICE! This quick guide is a brief summary of the
use of DINO access platform and does not replace the
operating instructions for the device.
Read the operating instructions and make sure that
you understand all of the instructions and warnings
before using the device.
180T/TB
(80 kg)
150T/TB
(80 kg)
135T/TB
(120kg)
3 4 5 6 7 8 9 10
Notice! Outreach depends on the platform load.
135T 150T 180T
1635 kg 1675 kg 1840 kg
2,16 m 2,24 m 2,18 m
1,78 m 1,78 m 1,78 m
3,8 / 4,2 m 3,8 / 4,2 m 3,8 / 4,2 m
215 kg 215 kg 215 kg

LIFT FUNCTIONS

Boom rotation:
Basket rotation:
Mains switch

DAILY INSPECTIONS

11 12
• Check the condition of the work platform, boom and chassis structures
• Check the air pressure in the tyres and signs of damage
• Check the operation and condition of the lights
• Check hydraulic oil level and the condition of hydraulic hoses, pipes and fittings
• Check the safety limits function
• Check the emergency descent, emergency stop and sound signal
• Check that all adhesive tapes and plates are in place, intact and legible
• Check that the lift includes operating instructions and that they are legible.
Boom
rotation
continuous
90°
Boom lifting /
lowering
LCB
Driving device
Left
Basket
rotation
Right
UCB
Basket
levelling
Hand brake
