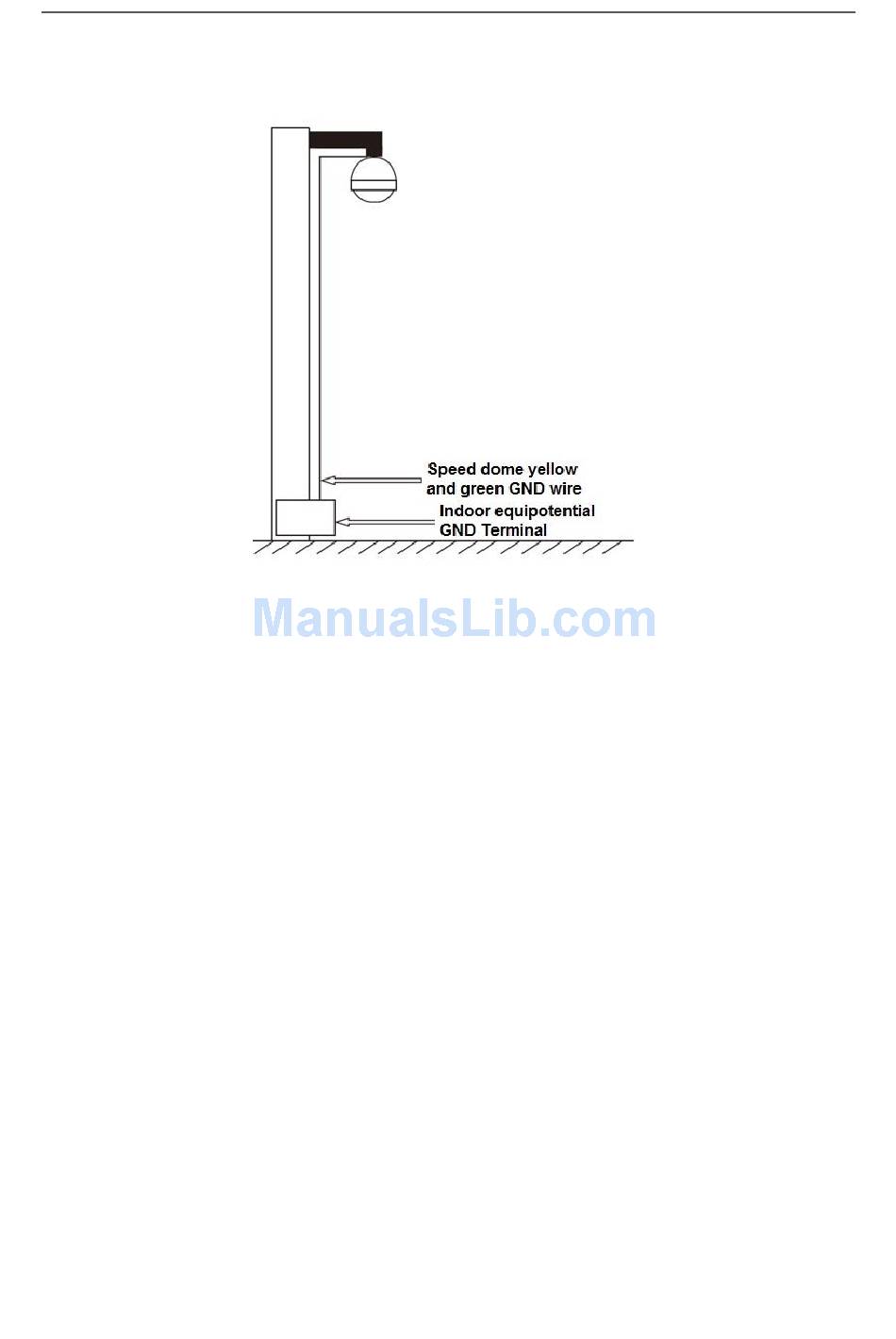

The yellow and green GND wire or GND screw of the speed dome should be reliably connected
by several strands of copper wire with no less than 25mm²and indoor equipotential GND
terminal. Please refer to Figure 6-2 for lightningproof installation mode.
Figure 6-2
20
