4 Wall Mount

4.1 Mounting Component

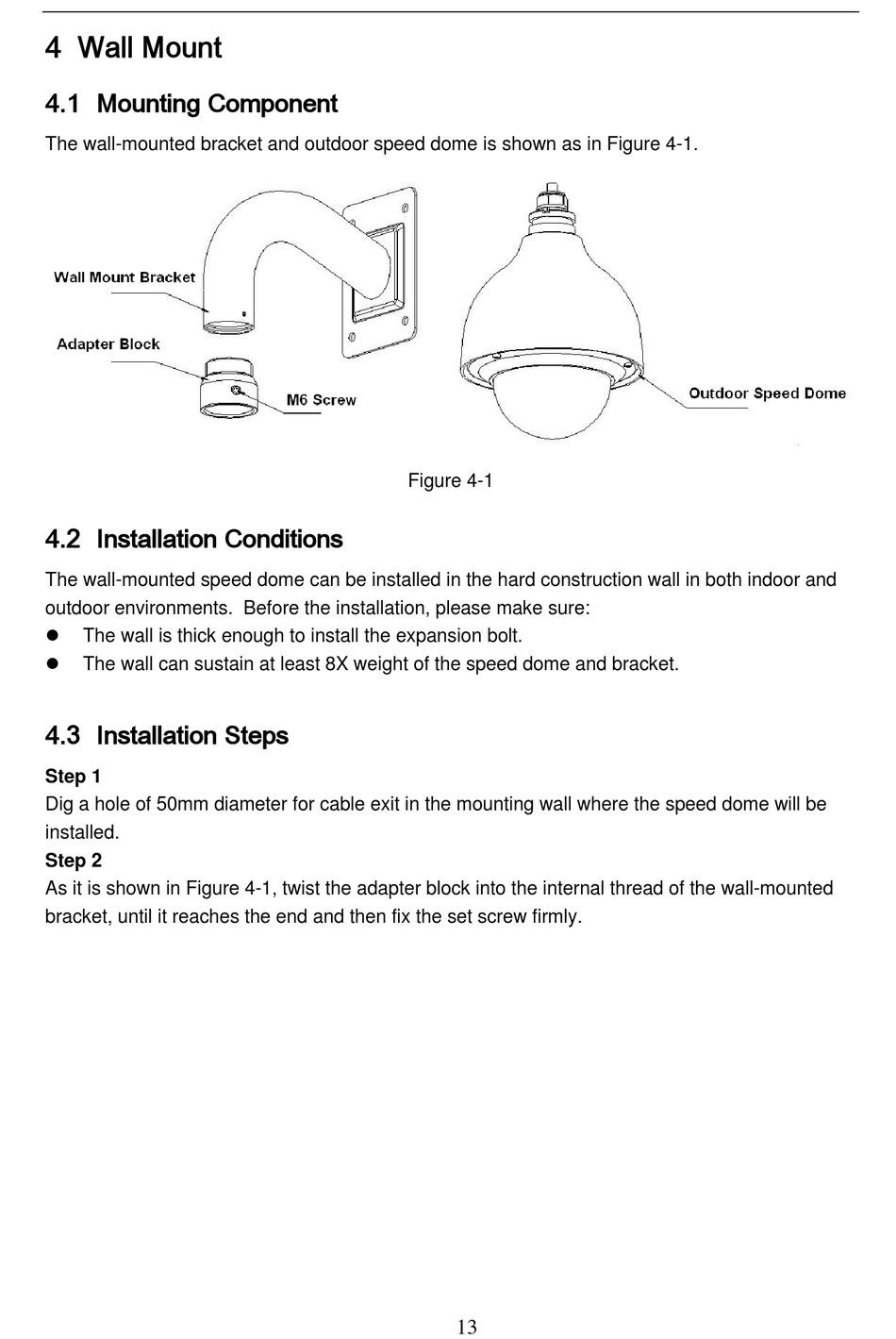

The wall-mounted bracket and outdoor speed dome is shown as in Figure 4-1.

4.2 Installation Conditions

The wall-mounted speed dome can be installed in the hard construction wall in both indoor and
outdoor environments. Before the installation, please make sure:

The wall is thick enough to install the expansion bolt.

The wall can sustain at least 8X weight of the speed dome and bracket.

4.3 Installation Steps

Step 1
Dig a hole of 50mm diameter for cable exit in the mounting wall where the speed dome will be
installed.
Step 2
As it is shown in Figure 4-1, twist the adapter block into the internal thread of the wall-mounted
bracket, until it reaches the end and then fix the set screw firmly.
Figure 4-1
13
