5 In-ceiling Mount
5.1 Mounting Component

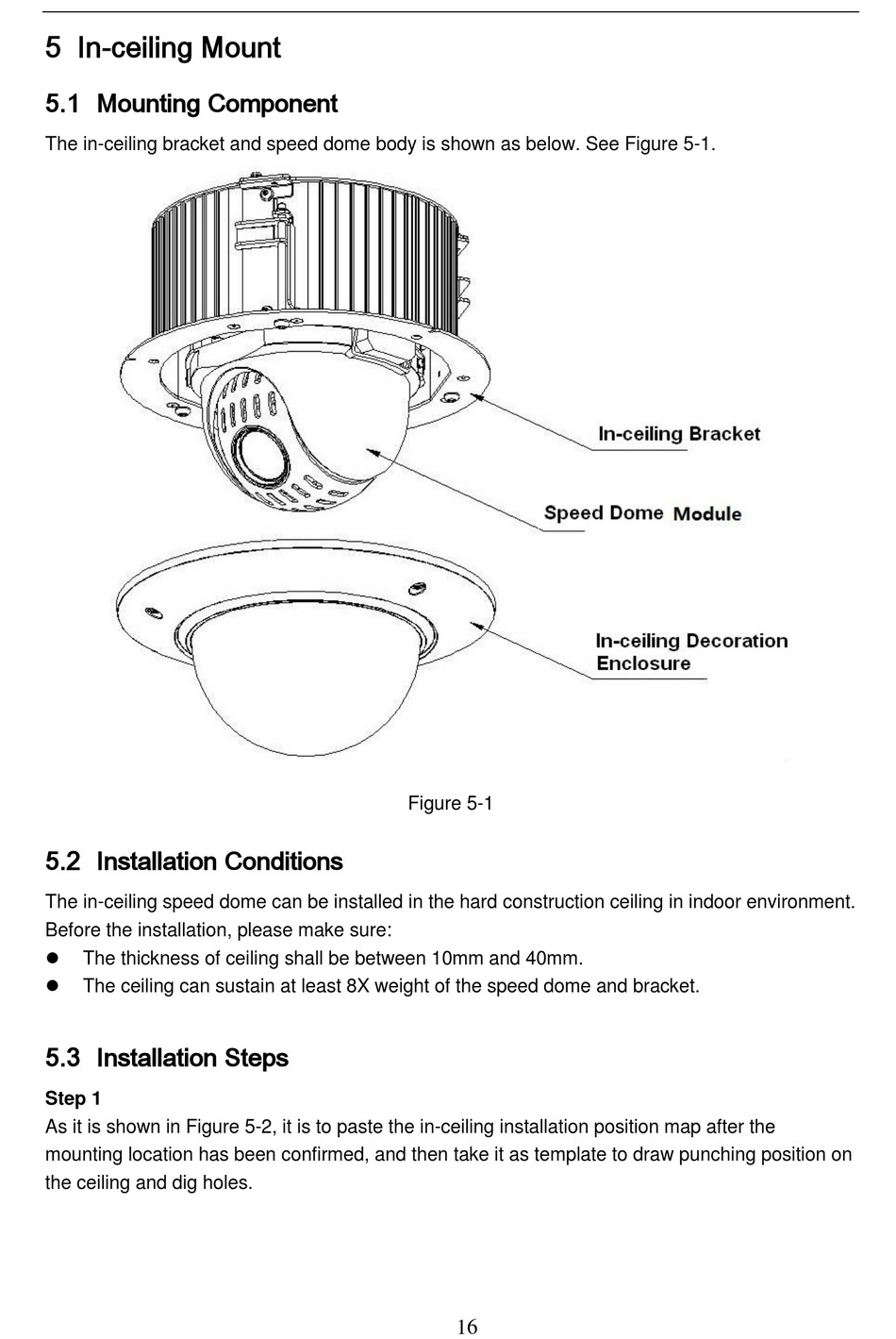

The in-ceiling bracket and speed dome body is shown as below. See Figure 5-1.
5.2 Installation Conditions
The in-ceiling speed dome can be installed in the hard construction ceiling in indoor environment.
Before the installation, please make sure:
The thickness of ceiling shall be between 10mm and 40mm.
The ceiling can sustain at least 8X weight of the speed dome and bracket.
5.3 Installation Steps
Step 1
As it is shown in Figure 5-2, it is to paste the in-ceiling installation position map after the
mounting location has been confirmed, and then take it as template to draw punching position on
the ceiling and dig holes.
Figure 5-1
16
