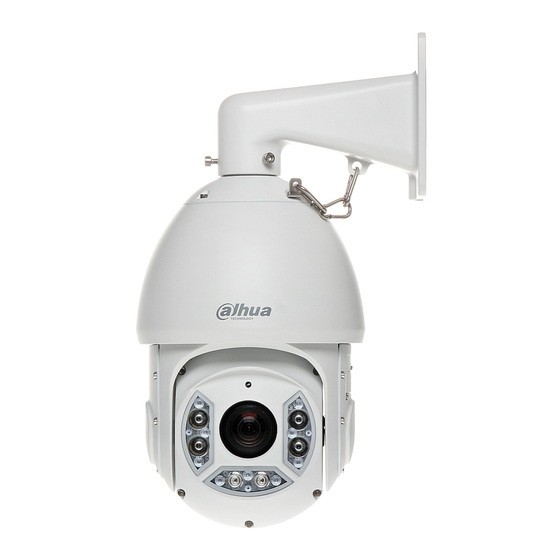

6-inch ir intelligent speed dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

6-inch IR Intelligent Speed Dome Installation Manual
Version 1.1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD6C230U-HNI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua SD6C230U-HNI

Summary of Contents for Dahua SD6C230U-HNI

  • Page 1 6-inch IR Intelligent Speed Dome Installation Manual Version 1.1.5...

  • Page 2: Table Of Contents

    Table of Contents INSTALLATION PREPARATION ..............1 Basic Requirements ......................... 1 Installation Check ........................1 Cable Preparation ........................1 1.3.1 Cable Lowest Specification Requirement ................1 1.3.2 Select Needed Power Supply Cable According to Transmission Distance ......2 SPEED DOME INSTALLATION ..............3 Check Device ..........................
  • Page 3 4.2.2 Installation Steps ......................... 16 CORNER-MOUNTED BRACKET INSTALLATION ........19 Mounting Component and Dimension ................. 19 Corner-mounted Bracket Installation Steps ................ 19 5.2.1 Installation Conditions ......................19 5.2.2 Installation Steps ......................... 20 POLE-MOUNTED BRACKET INSTALLATION ..........21 Mounting Components ......................21 Pole-mounted Bracket Installation Steps ................
  • Page 4 Welcome Thank you for purchasing our speed dome! Please read the following safeguards and warnings carefully before you install or use the product!

  • Page 5: Important Safeguards And Warnings

    Important Safeguards and Warnings Safety Measures 1. Qualified Engineer Needed  The installation engineer or maintenance engineer shall have corresponding CCTV system installation certificate or maintenance qualification certificate.  The installation engineer or maintenance engineer shall have qualification certificate for work at height.
  • Page 6 Before you connect the cable, install or uninstall, or begin the daily maintenance work, please turn off the power and unplug the power cable. Please make sure the produce is secure firmly on the wall or the ceiling. Please turn off the power and unplug the power cable, If there is any smoke, disgusting smell, or noise.
  • Page 7 7. Daily Maintenance  Please use the soft cloth to clean dust on the shell, or you can use soft cloth with cleaning liquid to clean the shell and then use soft cloth to make it dry.  Do not use gasoline, dope thinner or other chemical material to clean the shell. It may result in shell transfiguration or paint flake.

  • Page 8: Installation Preparation

    1 INSTALLATION PREPARATION 1.1 Basic Requirements  All installation and operation here should conform to your local electrical safety codes, fire prevention laws and some related regulations.  Make sure if the application scene of the speed dome conforms to the installation requirements.

  • Page 9: Select Needed Power Supply Cable According To Transmission Distance

    The above can be applied to HDCVI speed dome. 1.3.2 Select Needed Power Supply Cable According to Transmission Distance Refer to appendix Ⅱ for AC 24V power supply device. Refer to appendix Ⅲ for DC 12V power supply device.

  • Page 10: Speed Dome Installation

    2 Speed Dome Installation 2.1 Check Device First please check if the device is in a good condition in the packing box before installation, and all the components are complete (refer to packing list for more details). 2.2 Open Device Open the box, take out the device and remove adhesive tape covered on the dome body, which is shown in Figure 2-1.
  • Page 11 Figure 2-2 2.3.1.2 HDCVI Speed Dome There are two DIP switches on the PCB board of the speed dome side (attached with DIP label), which are used to set speed dome address and parity. The location of DIP switch is shown in Figure 2-3.

  • Page 12: Dip Switch Setup

    Figure 2-3 2.3.2 DIP Switch Setup It needs to set the address number and baud rate before controlling the speed dome. Note After some related information has been reset, it has to cut off the power and reboot the device to make the new settings valid.

  • Page 13: Baud Rate And Parity Setup

    Figure 2-4 Address …… ………………………………………………………………… Table 2-1 2.3.4 Baud Rate and Parity Setup The functions which need to be set between analog speed dome and HDCVI speed dome, which will be introduced separately. 2.3.4.1 Analog Speed Dome It is to set parity and baud rate of the speed dome. 5 and 6 bit is the setting bit of parity while 7 and 8 are the setting bit of baud rate, the label is shown in Figure 2-5, please refer to Table 2-2 and Table 2-3 for the setting.

  • Page 14: Terminal Matched Resistance Setup

    Figure 2-6 Baud Rate 9600bps 4800bps 2400bps 1200bps Table 2-4 2.3.5 Terminal Matched Resistance Setup There are two connection modes of device terminal 120Ω resistance, which has already existed on the power board. Please refer to Figure 2-7 for more details. Figure 2-7 Refer to Figure 2-9 for the default connection mode, at this moment, the jumper cap on the power board is connected to the location 2~3 of the socket and 120Ω...

  • Page 15: Reset Button And Micro-Sd Card Installation

    Figure 2-9 2.4 Reset Button and Micro-SD Card Installation There is a reset button on the PCB which is located on the speed dome lateral (attached with label), the DIP switch is shown in Figure 2-10, the switch is moved to ON as 1. Reset button is used for system reset.

  • Page 16: Speed Dome Installation

    Note For some other models, there are only reset button and DIP switch without any other buttons which are located on the PCB of speed dome lateral (without label), please refer to the actual device for installation. SD card slot is located on the module control panel; it can be seen after you open the rear cover which is shown in Figure 2-11.

  • Page 17: Install Quick Mount Connector

    Figure 2-12 Step 2 Connect the power cable, video cable, audio cable, RS-485 control cable, alarm cable, network cable, high-frequency cable and optical fiber cable etc. well according to requirements, and then use insulated rubber tape to twine the cable connection well respectively to make it waterproof. Note The video port is covered with heat-shrinkable tube with high shrinkage ratio, it needs to heat and shrink the tubes on both sides after the video port is well connected, which is to make sure...

  • Page 18: Speed Dome Cable

    Figure 2-14 2.5.2 Speed Dome Cable 2.5.2.1 Cable Description The camera is equipped with a multi-functional combination cable by default, which includes power cable, video cable, audio cable, RS485 control cable, alarm cable, network cable, high- frequency cable and optical fiber cable etc. The cable detail is shown in Figure 2-15. Figure 2-15 Note Different models have different cable combinations;...
  • Page 19 Figure 2-16 2.5.2.2 Cable Connection Buckle the safety hook of speed dome on the quick mount connector; connect the integrated cable reserved by wall-mounted bracket to the corresponding power cable, video cable, audio cable, RS485 control cable, alarm cable, network cable, high-frequency cable and optical fiber cable etc.

  • Page 20: Wall-Mounted Bracket Installation

    3 Wall-mounted Bracket Installation IR intelligent speed dome mainly takes wall mount, here it takes wall mount as an example to introduce the installation components and modes of the speed dome. 3.1 Mounting Components and Dimension The dimension of wall-mounted bracket is shown in Figure 3-1; the dimension of quick mount connector is shown in Figure 3-2.

  • Page 21: Wall-Mounted Bracket Installation Steps

    3.2 Wall-mounted Bracket Installation Steps 3.2.1 Installation Conditions Wall-mounted speed dome can be installed on hard wall structure in both indoor and outdoor environments. The wall needs to meet the following installation conditions:  The wall shall be thick enough to install expansion bolts. ...

  • Page 22: Hang-Mount Bracket Installation

    4 Hang-Mount Bracket Installation 4.1 Mounting Component and Dimension The hang-mounted bracket and installation accessories are shown in Figure 4-1, the dimension of hang-mounted bracket is shown in Figure 4-2, and the dimension of adapter block is shown in Figure 4-3. Figure 4-1 Figure 4-2...

  • Page 23: Hang-Mount Bracket Installation Steps

    Figure 4-3 4.2 Hang-Mount Bracket Installation Steps 4.2.1 Installation Conditions Hang-mounted speed dome can be installed on hard wall structure in both indoor and outdoor environments. The wall needs to meet the following installation conditions:  The wall shall be thick enough to install expansion bolts. ...
  • Page 24 Install hang-mounted component  Without Straight Pole Fix the connection plate of hang-mounted bracket on the ceiling, and then twist the adapter block into the connection plate, which is shown in Figure 4-5. Figure 4-5  With Straight Pole First it needs to fix the connection plate of hang-mounted bracket on the ceiling, and then twist the straight pole into the connection plate, finally twist the adapter block into the straight pole of the hang-mounted bracket, which is shown in Figure 4-6.
  • Page 25 The video port is covered with heat-shrinkable tube with high shrinkage ratio, it needs to heat and shrink the tubes on both sides after the video port is well connected, which is to make sure the video port is moistureproof and waterproof. Step 4 Use the quick mount screw on the speed dome and the quick mount bayonet on the adapter block to fix the device on the adapter block, and then fasten the speed dome firmly via M6 inner...

  • Page 26: Corner-Mounted Bracket Installation

    5 Corner-mounted Bracket Installation 5.1 Mounting Component and Dimension Corner-mounted bracket and installation components are shown in Figure 5-1; the dimension is shown in Figure 5-2. Figure 5-1 Figure 5-2 5.2 Corner-mounted Bracket Installation Steps 5.2.1 Installation Conditions Corner-mounted speed dome can be used on the hard wall structure with 90° included angle in both indoor and outdoor environments.

  • Page 27: Installation Steps

     The wall shall sustain at least 8X weight of the speed dome. 5.2.2 Installation Steps Step 1 Take the mounting hole of corner-mounted accessory as template, draw punching location on the wall with 90° included angle, dig holes and install M8 expansion bolts, use M8 nut to fasten the corner-mounted pedestal on the wall, which is shown in Figure 5-3.

  • Page 28: Pole-Mounted Bracket Installation

    6 Pole-mounted Bracket Installation 6.1 Mounting Components Pole-mounted bracket and installation accessories are shown in Figure 6-1; dimension is shown in Figure 6-2. Figure 6-1 Figure 6-2 6.2 Pole-mounted Bracket Installation Steps 6.2.1 Installation Conditions Pole-mounted speed dome can be used on hard pole structure in both indoor and outdoor environment.

  • Page 29: Installation Steps

     The diameter of pole-mounted structure shall conform to the installation size of hose clamp. It is equipped with 5-inch clamp by default (fit for the column of φ80-130mm). It is used together with pole-mounted bracket, the diameter can be adjusted, and the adjustment range is the clamp specification (7 types of dimension for users to select): φ59-82mm, φ84- 108mm, φ80-130mm, φ130-152mm, φ155-178mm, φ180-203mm and φ194-216mm.
  • Page 30 Figure 6-4...

  • Page 31: Appendix Ⅰ Thunder Proof And Surge Protection

    7 APPENDIX Ⅰ THUNDER PROOF AND SURGE PROTECTION (Outdoors) This series speed dome adopts TVS lighting protection technology. It can effectively prevent damages from various pulse signals below 6000V, such as sudden lighting and surge. While maintaining your local electrical safety code, you still need to take necessary precaution measures when installing the speed dome in the outdoor environment.
  • Page 32 The yellow and green GND wire or GND screw of the speed dome should be reliably connected by several strands of copper wire with no less than 25mm²and indoor equipotential GND terminal. Please refer to Figure 7-2 for lightningproof installation mode. Figure 7-2...

  • Page 33: Appendix Ⅱ About Rs485 Bus

    8 APPENDIX Ⅱ ABOUT RS485 BUS 8.1 RS485 Bus Main Feature RS485 is semi duplex communication cable of impedance 120Ω. Its max load amount is 32 effective loads (including main control device and devices to be charged). 8.2 RS485 Bus Transmission Distance When we take 0.56mm (24AWG) twisted-pair as communication cable, the max transmission distance (theoretically) are listed below (according to different baud rates).

  • Page 34: Rs485 Bus Faq

    Figure 8-2 8.4 RS485 Bus FAQ Phenomenon Possible Reasons Solution   Modify host or speed dome setup ； Speed dome Host address(baud rate) and  can run self- speed dome address(baud Switch RS485 positive end and diagnosis but rate) are not match; negative end；...

  • Page 35: Appendix Ⅲ The Relationship Between Ac 24V Cable

    9 APPENDIX Ⅲ THE RELATIONSHIP BETWEEN AC 24V CABLE DIAMETER AND TRANSMISSION DISTANCE It is the recommended max transmission distance when the cable diameter is fixed and the AC 24V power consumption is below 10%. (For the AC power supply devices, the max allowed voltage loss rate is 10%.

  • Page 36: Appendix Ⅳ The Relationship Between Dc 12V Cable Diameter And Transmission Distance

    10 APPENDIX Ⅳ THE RELATIONSHIP BETWEEN DC 12V CABLE DIAMETER AND TRANSMISSION DISTANCE It is the recommended max transmission distance when the cable diameter is fixed and the DC 12V power consumption is lower than 10%. For the DC power supply devices, the max allowed voltage loss rate is 10%.
  • Page 37 Feet（m） 0.8000 1.000 1.250 2.000 （11.63）...

  • Page 38: Appendix Ⅴ Wire Gauge Reference Sheet

    11 APPENDIX Ⅴ WIRE GAUGE REFERENCE SHEET Metric bare wire Bare wire cross diameter section （mm） （mm ） 0.050 0.00196 0.060 0.00283 0.070 0.00385 0.080 0.00503 0.090 0.00636 0.100 0.00785 0.110 0.00950 0.130 0.01327 0.140 0.01539 0.160 0.02011 0.180 0.02545 0.200 0.03142 0.230...
