Figure 4-1
Step 3
Pull the composite cable through the adapter block and pull it out of the other end of the wall-
mounted bracket. Line up the tab on the top of the external enclosure to the internal hole of the
adapter block and then push it to the end, and then tighten three screws of the adapter block
firmly. Please note this step is very important. Please make sure the screws are firm, otherwise,
it may result in falling risk of the intelligent speed dome.
Step 4
Take the mounting hole on the bottom of wall-mounted bracket (align the bracket cable outlet
hole with the circular hole on the wall), draw the punching position on the wall and dig holes, then
bury the expansion bolts into the holes you just dug.
Step 5
Connect the composition cable and then pull it through the hole in the wall. Use four hex screws
and flat washer to fix the wall-mounted bracket on the wall where the expansion bolts have been

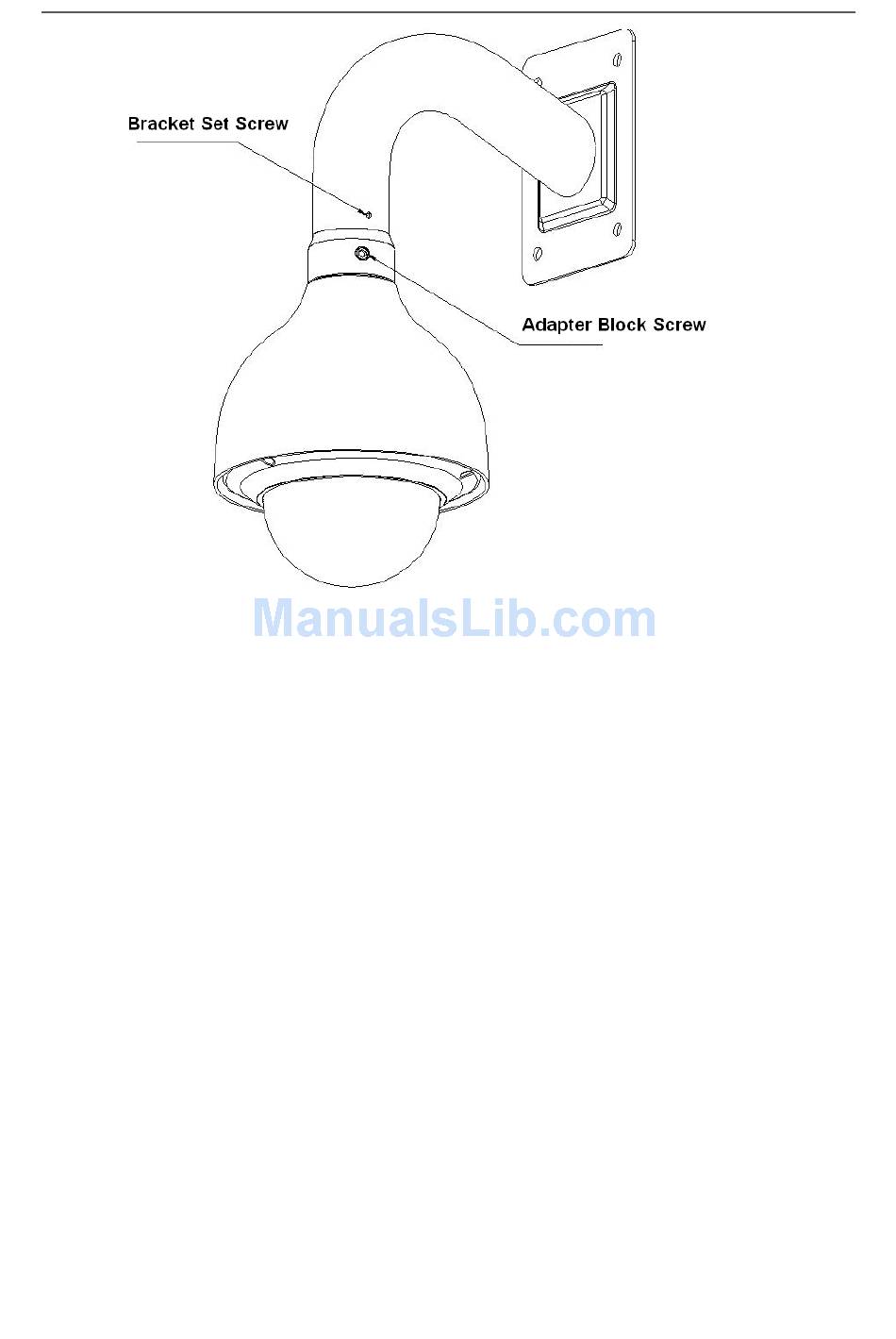

inserted. Refer to Figure 4-2 for more details. So far, the speed dome installation has been
completed, which is shown in Figure 4-3.
14
