Skytech 1420-A Installation And Operation Instruction Manual

INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
INTRODUCTION
This remote control system was developed to provide safe, reliable, user-friendly remote control system for gas heating appliances. The
system can be operated manually from the transmitter.

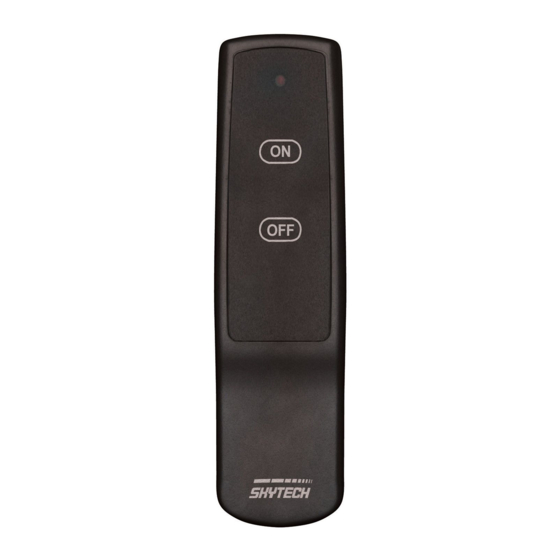

TRANSMITTER
SIGNAL
LIGHT
ON
ON/OFF
BUTTONS OFF
BATTERY
COMPARTMENT
FRONT
RECEIVER
When plugged into a standard 110-120 VAC receptacle, the remote
receiver operates on commands from the transmitter or from the slide
switch on the face of the receiver (This switch is to be used during a
power outage to operate the appliance manually).
• ON: will manually turn on the appliance.
• REMOTE: will allow use of handheld transmitter. If the system
does not respond to the transmitter on initial use, check the
battery positions in the remote. If that does not work, see the
LEARNING TRANSMITTER TO RECEIVER section.
• OFF: will disable the remote receiver.
• It is suggested that the slide switch be placed in the OFF
position if you will be away from your home for an extended
period of time.
The remote receiver is manufactured with a "dry contact" relay in its
circuitry that operates like an on/off switch. However, no power or
current passes from the 110-120VAC input side to the wires leading
from the output side of the remote receiver.
NOTE: This product is designed for use with an attended hearth appliance or fire feature. Adults must be present when the Control
System is operating. DO NOT program or thermostatically set this Control to operate a hearth appliance or fire feature when Adults
are not physically present. Furthermore, DO NOT leave the hearth appliance or fire feature burning unattended; it may cause damage
or serious injury. If an Adult is going to be away from the hearth appliance or fire feature for any length of time, then the handheld/wall
mount, receiver/control module and application should be in the "OFF" position.
Skytech: 1420-A
MODEL: 1420-A
NOT ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on a 12V (A23) battery that is included. Install the 12V battery
supplied with the unit into the battery compartment. It is recommended that ALKALINE
batteries always be used for this product. Be sure the batteries are installed with the (+)
and (-) ends facing the correct direction.
The LED signal light should illuminate when either the ON or OFF button is pressed. If the
signal light does not illuminate, check the position of the transmitter's battery, and if the
battery is fully charged.
BACK
LEARN
REV. 12-13-17 Page 1
